BNG-DN20*500/700/1000不锈钢防爆挠性连接管产品规格长度可根据用户要求定做；
本产品的长度可根据客户要求定做哦。每增加1米长，加30元，多长都可以做哦，产品有大量现货，当天订货，当天可发货；
BNG-DN20*500/700/1000不锈钢防爆挠性连接管厂家 304材质不锈钢防爆连接管适应用途：
1. 适用于爆炸性气体环境1区、2区；
2. 适用于可燃性粉尘环境20区、21区、22区；
3. 适用于ⅡA、ⅡB、ⅡC级爆炸性气体环境；
4. 适用于石油采炼、储存、化工、医药、纺织、印染、军工及军事设施等爆炸性危险环境。
BNG-DN20*500/700/1000不锈钢防爆挠性连接管产品特性：
1. 具有耐燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作 可靠等优点；
2. 挠性管长度，螺纹尺寸可根据用户需要特殊加工。如NPT螺纹， 公制螺纹等。 注：标注螺纹规格时并应注明内外螺纹,如：NGD-700×G3/4″(内)/G1″(外)意义为长度为700，一端为内 螺纹G3/4″，一端为外螺纹G1″的橡胶护套挠性连接管；
3. 执行标准GB3836.1-2000、GB3836.2-2000。
BNG-DN20*500/700/1000不锈钢防爆挠性连接管产品特点 Features
| BNG-Ⅰ(橡塑护套) Rubber sheld | BNG-Ⅱ(不锈钢) Stainless steel | BNG-Ⅲ(钢丝编织) Steel wire knit |
|

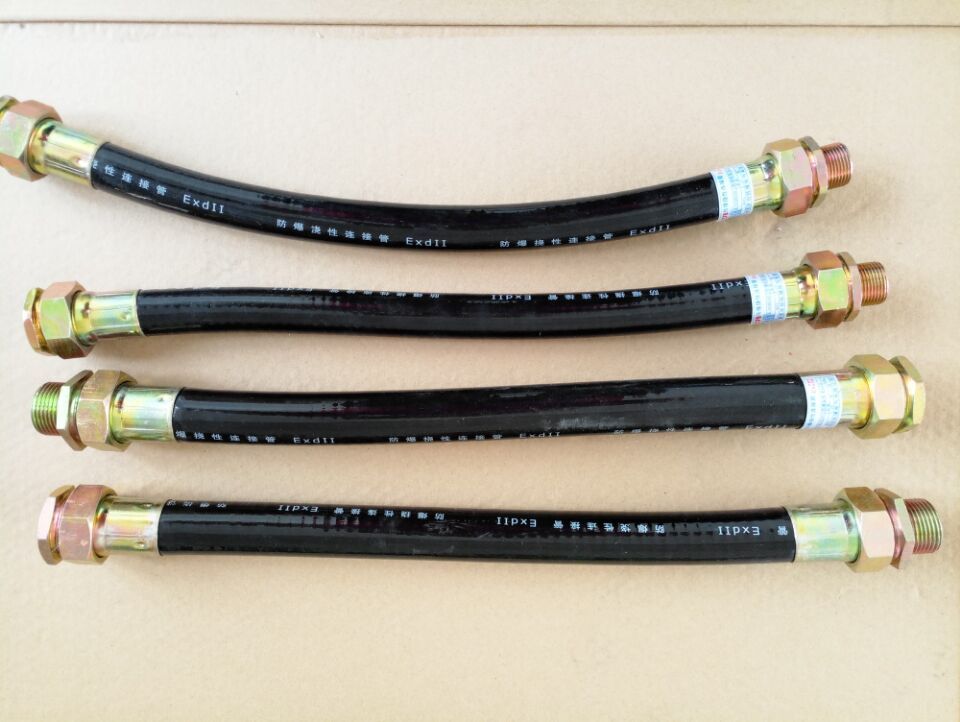

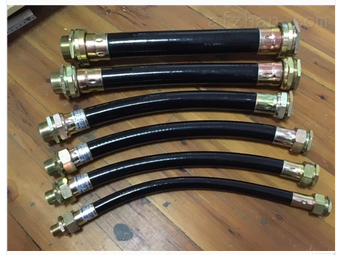

1.本产品由优质碳钢制成的内外螺纹接头、 金属软管外包PVC管等组成 1. It's composed of thread connectors and metal flexible pipe weared with PVC pipe, connectors are made of carbon steel with good quality. |
1.本产品由优质不锈钢制成的内外螺纹 接头、不锈钢波纹管外不锈钢网管等 组成 1.this product is made up of the in-out thread joint of excellent stainless steel, stainless ripple pipe casing with stainless pipeline. |
1.本产品由优质碳钢制成的内外螺纹接头、 内衬钢丝网管加强的橡胶管等组成 1.It's composed of inlet and outlet connector, rubber pipe that lined with stainless steel net pipe. |
|
2.具有无毒无味、耐油、耐酸、耐腐蚀、耐 磨、耐老化、防水、阻燃、挠性良好等优 点。 2.It has no poison and taste, it's with oil, acid, corrosion, wearing and aging resistance water-proof flame-proof and good flexible functions. |
2.具有耐油、耐腐蚀、耐磨、耐老化、 防水、阻燃、挠性良好等优点。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and good flexible function. |
2.具有耐油、耐酸、耐腐蚀、耐磨、耐老 化、防水、阻燃、挠性良好等优点。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and perfect flexible function. |
注：可根据用户需要特殊加工长度及螺纹等。 The length and thread can be made on request.
BNG-DN20*500/700/1000不锈钢防爆挠性连接管产品规格
|
型号 Type |
管通径(mm) Pipe diameter |
接头管螺纹(G") Connecting pipe thread |
长度(mm) Length |
最小弯曲半径(mm) Min bend radius |
防爆标志 Ex-mark |
|
BNG-□15×700 BNG-□15×1000 BNG-□20×700 BNG-□20×1000 BNG-□25×700 BNG-□25×1000 BNG-□32×700 BNG-□32×1000 BNG-□40×700 BNG-□40×1000 BNG-□50×700 BNG-□50×1000 BNG-□70×700 BNG-□70×1000 BNG-□80×700 BNG-□80×1000 BNG-□100×700 BNG-□100×1000 BNG-□100×1400 |
15 15 20 20 25 25 32 32 40 40 50 50 70 70 80 80 100 100 100 |
G1/2" G1/2" G3/4" G3/4" G1" G1" G1 1/4" G1 1/4" G1 1/2" G1 1/2" G2" G2" G2 1/2" G2 1/2" G3" G3" G4" G4" G4" |
700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 1400 |
80 80 110 100 145 145 180 180 210 210 250 250 350 350 400 400 500 500 500 |
Exd Ⅱ等效于
ExeⅡ等效于
DIP A20等效于 |
