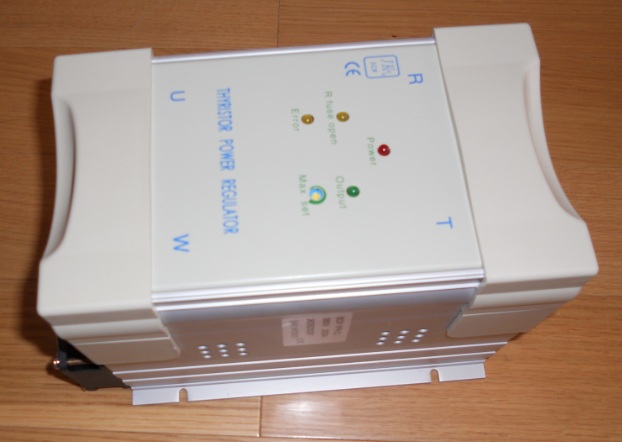

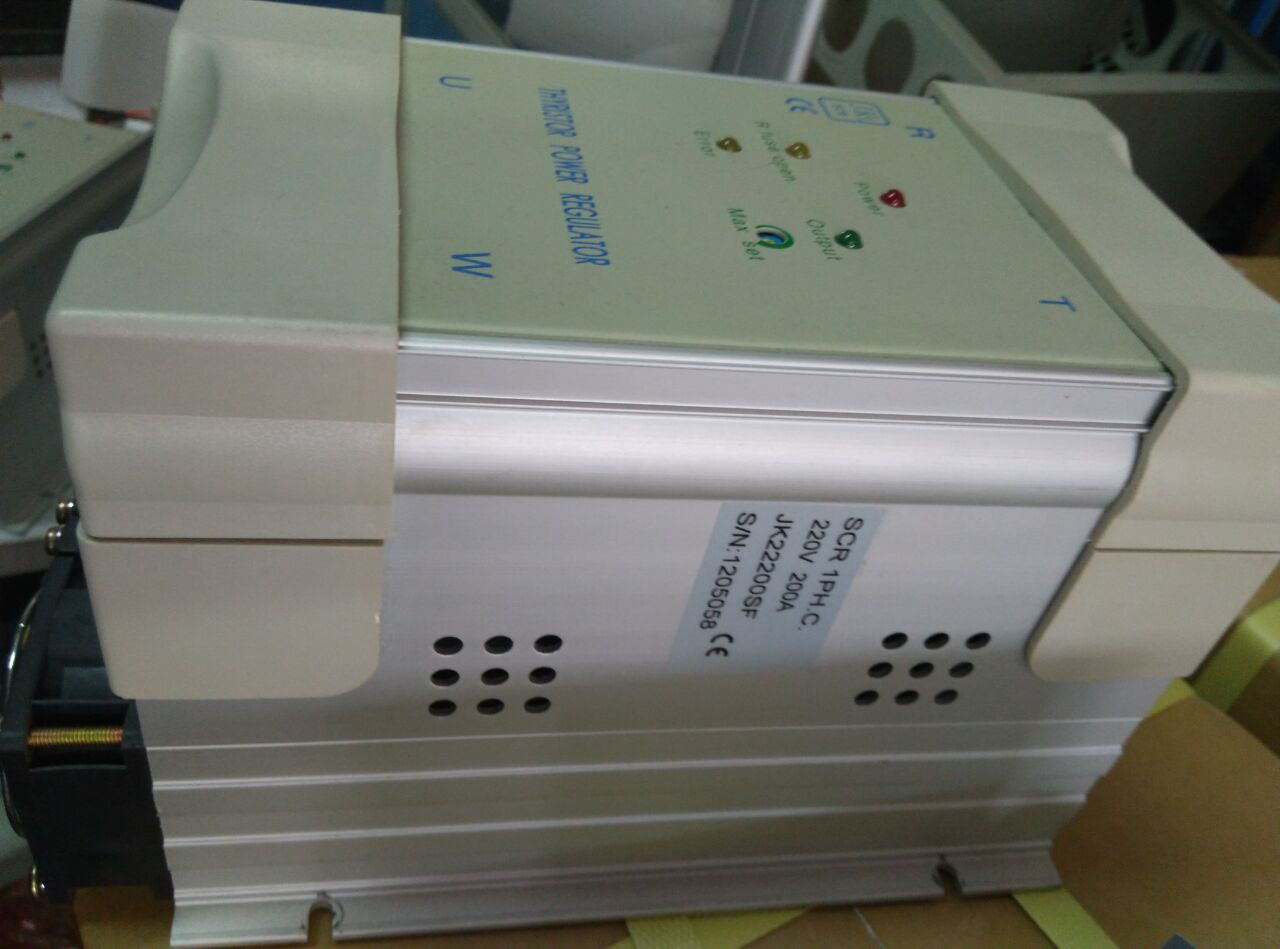

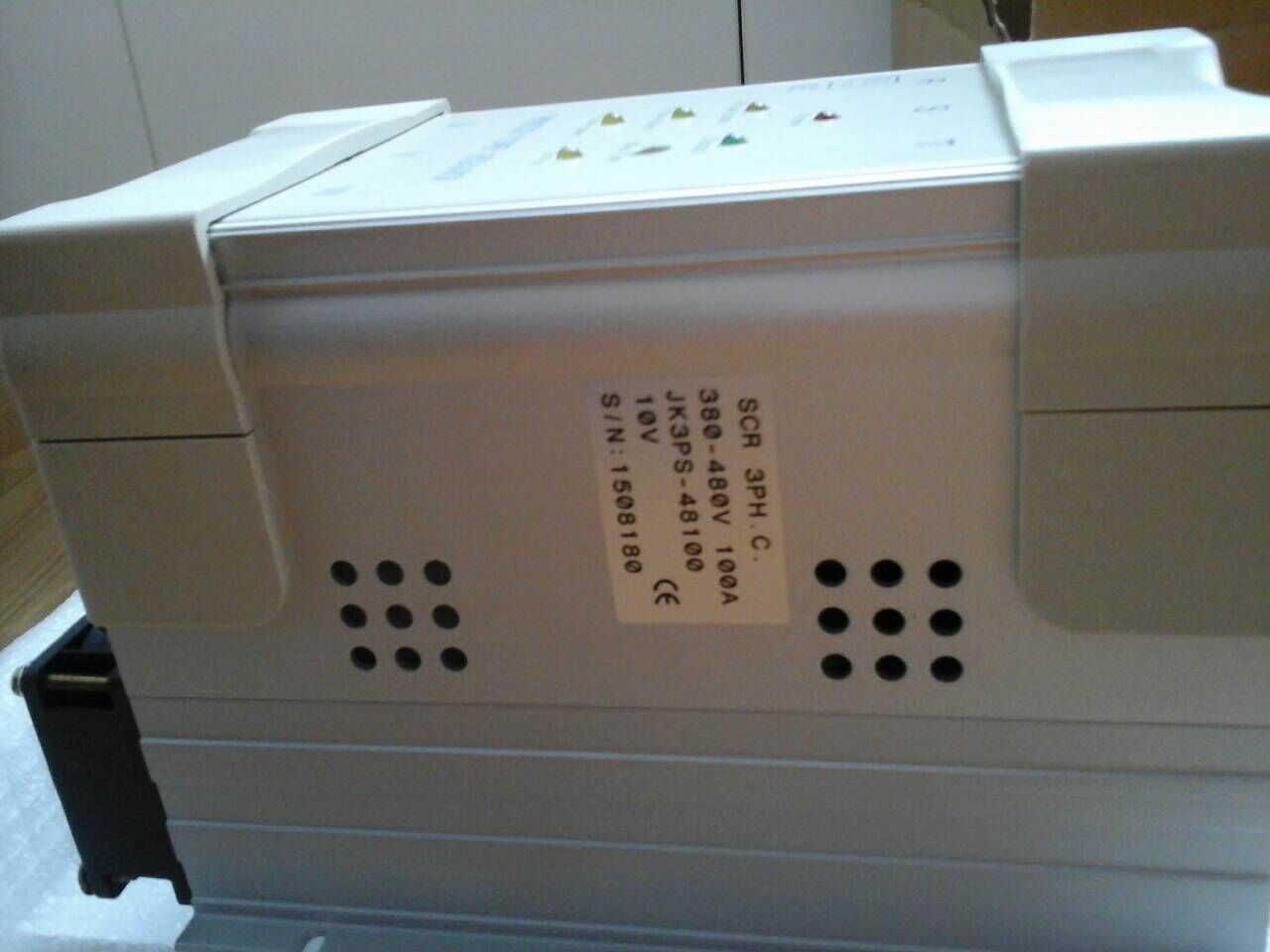

台湾JK积奇（WJ万积）三相SCR電力調整器  零位控制  相位控制

規格說明
1、主電源電壓:  AC220V  380-480V  ±10%

2、輔助電壓:  AC  220V±15%  50/60Hz

3、額定電流:  25A  35A  50A  60A  80A  100A  125A  160A  180A  200A  225A  250A  300A  350A  400A  600A  750A

4、工作頻率:  47-63Hz

5、輸出方式:  比例式輸出

6、零位輸入控制訊號:  4-20mA,  1-5V,  0-10V,  2-10V

7、相位輸入控制訊號:  4-20mA,  0-5V,  1-5V,  0-10V,  2-10V,  8秒緩啟動。

3相2線零位控制
JK2PSZ-22025,  JK2PSZ-22035,  JK2PSZ-22050,JK2PSZ-22060,  JK2PSZ-22080,  JK2PSZ-22100,  JK2PSZ-22125,  JK2PSZ-22160,  JK2PSZ-22180,  JK2PSZ-22200,  JK2PSZ-22225,  JK2PSZ-22250,  JK2PSZ-22300,  JK2PSZ-22350,  JK2PSZ-22400,  JK2PSZ-22600,JK2PSZ-48025,  JK2PSZ-48035,  JK2PSZ-48050,JK2PSZ-48060,  JK2PSZ-48080,  JK2PSZ-48100,  JK2PSZ-48125,  JK2PSZ-48160,  JK2PSZ-48180,  JK2PSZ-48200,  JK2PSZ-48225,  JK2PSZ-48250,  JK2PSZ-48300,  JK2PSZ-48350,  JK2PSZ-48400,  JK2PSZ-48600

3相3線相位控制
JK3PS-22025,  JK3PS-22035,  JK3PS-22050,JK3PS-22060,  JK3PS-22080,  JK3PS-22100,  JK3PS-22125,  JK3PS-22160,  JK3PS-22180,  JK3PS-22200,  JK3PS-22225,  JK3PS-22250,  JK3PS-22300,  JK3PS-22350,  JK3PS-22400,JK3PS-48025,  JK3PS-48035,  JK3PS-48050,JK3PS-48060,  JK3PS-48080,  JK3PS-48100,  JK3PS-48125,  JK3PS-48160,  JK3PS-48180,  JK3PS-48200,  JK3PS-48225,  JK3PS-48250,  JK3PS-48300,  JK3PS-48350,  JK3PS-48400,

JK1120S1-D75, JK1130S1-D75, JK1140S1-D100, JK1150S1, JK1160S1JK2220S1-D75, JK2230S1-D75, JK2240S1-D100, JK2250S1, JK2260S1,JK3820S1-D75, JK3830S1-D75, JK3840S1-D100, JK3850S1, JK3860S1

保護型系列
JK22020SF, JK22030SF, JK22040SF, JK22050SF, JK22060SF, JK22080SF, JK22100SF, JK22125SF, JK22160SF, JK22180SF, JK22200SF, JK22300SF, JK22400SF, JK22500SF,JK38020SF, JK38030SF, JK38040SF, JK38050SF, JK38060SF, JK38080SF, JK38100SF, JK38125SF, JK38160SF, JK38180SF, JK38200SF, JK38300SF, JK38400SF, JK38500SF
