HD-1100HAZ-DUSTis a Real Time Dust   Monitor Designed for Industrial Hygiene, Indoor Air Quality and Haz-Mat air   monitoring InvestigationsHAZ-DUST uses the latest in infrared technology   which provides accurate an instantaneous data on airborne particle   concentrations, in accordance with the regulatory NIOSH method 0600 for lung   damaging Respirable particulates.HAZ-DUST saves money by eliminating   repetitious and costly gravimetric air sampling and the associated time   delays involved with laboratory analysis.WithHAZ-DUSTyour results are   determined easily and immediately displayed.By continuously monitoring   lung-damaging particlesHAZ-DUSTprotects the respiratory health of industrial   personnel and reduces any potential liabilities, in addition to reducing the   cost of your regulatory air monitoring program. Honartech Ltd as EDC&＃39;s exclusive distributor in   China sells all series dust detector and air monitor.

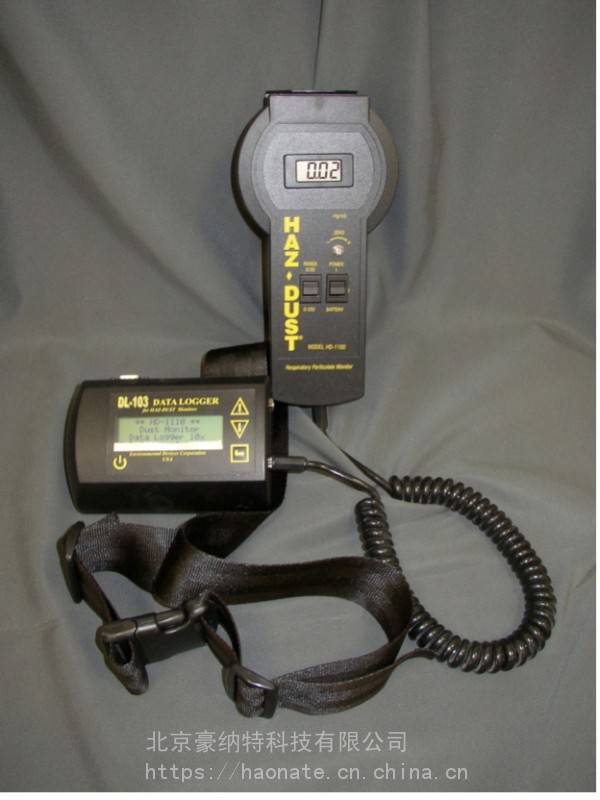

 When coupled with the DL03 data logger, maximum automation is achieved for data collection, statistical analysis, graphs and detailed report generation. Software is completely WINOOWs compatible and easy to use.If your company is concerned with air quality and its effects on workers & the community, theHAZDUSTwill help you comply with federal regulations for respiratory safety.

APPLICATIONS:

Determining level of respiratory protection
  Survey of workplace for OSHA/EPA compliance
  Qualifying off site particulate migration
  Surveying for PM-10 and TSP levels
  Monitoring dust generation during drilling/excavation operations
  Evaluating dust suppression and engineering controls
  Locating and identifying “Hot Spots”
  Emergency Response & fugitive emissions compliance
  Evaluating worker’s exposure to airborne contaminants
  Dust collectorentilation system checks
  Monitoring lung damaging particles in factories & buildings
  Can be used in all OSHA & EPA personal and ambient particulate air sampling applications
   For all types of dust & aerosols
  Lead

Silica

Welding Fumes
  Coal
  Wood/Paper
  Concrete/Cement
  Chromate
  Nuisance Dust
  Pharmaceutical Dust
  Dry Chemicals
  Heavy Metals/PCB’s
  Paint Spray
  Grain
  Construction Dusts
  Toxic Soil Remediation
  FEATURES
  Easy operation: Turn the instrument on and your results are immediately calculated.
  High Sensitivity: Sensitive enough to monitor all OSHA/NIOSH reference methods.Sensitivity down to 0.01mg/m3.
  Low Battery Indicator: Alerts the user when the battery needs recharging, so the unit is ready when you are.
  Data Logging: DL-103 Data Logger and software provides management ready statistical reports. Allows for a complete time vs. concentration profile, which is impossible to obtain with filter/gravimetric techniques.
  Rugged Construction: Lightweight case is able to withstand harsh environments and rough handling. A unique design provides

Specifications HD-1100
  Display: LCD 3.5 digits
  mg/m3 concentration reading
  Calibration: NIOSH 0600 (ARD test dust)
  Sensing range: 0.01-200mg/m3
  Particle size range: 0.1-50μm
  Precision: +/- 0.02mg/m3
  Accuracy: +/-10% to NIOSH #0600
  Power: 6VDC NiMH rechargeable battery
  Operating time: >8 hours
  Charging time: 10-12 hours
  Signal output: 0-2 volt
  Humidity: 95% non-condensing
  Dimensions: 9”x3”x1.5”
  Weight: 2lbs

Standard containing: the monitor ,the recharger and manu.
