OM-CP-OCTPROCESS-25MA-AC详细介绍

OM-CP-OCTPROCESS-25MA-AC

8通道电流数据记录器
OM-CP-OCTPROCESS

5年保修 CE
8通道电流数据记录器

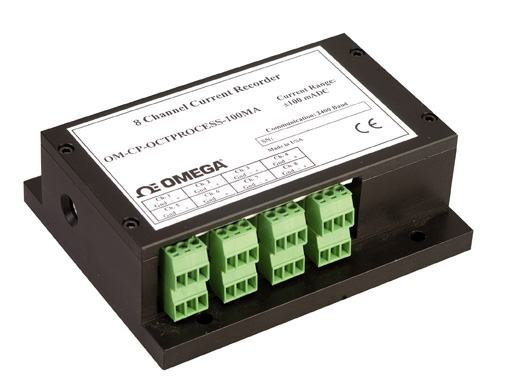

OM-CP-OCTPROCESS:8通道电流数据记录器
16位分辨率
可编程的工程单位，比例因子，和偏移值
记忆的概括
小尺寸
通过软件用户校准
实时操作
该om-cp-octprocess是一种低成本，高分辨率，自动记录电流之间的20和120毫安的的数据记录器。电池供电的AC供电模式都是可用的。它使用一个16位的ADC实现分辨率0.01ma。此外，该om-cp-octprocess让用户存储用户定义的单元的装置，以及规模因子和偏移值。这允许简单的线性化和标允许任何过程仪表，处理单元提供一个模拟输出。这允许简单的自动线性化和任何流程表，处理单元提供一个模拟输出比例。这种便携式，易于使用的设备可以测量并记录多达16383个通道测量电流。
该om-cp-octprocess代表在尺寸和性能的一大飞跃。它的小尺寸使得它几乎可以满足任何地方。实时时钟确保所有数据的时间和日期戳。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。
数据检索是简单的。塞到一个可用的COM端口的记录器和易于使用的软件是否休息。该软件将您的PC变成一个实时的长条图表记录仪。数据可以打印的图形或表格的格式。它也可以被导出到一个文本或微软Excel文件。

规格：
Input Channels:8 non-isolated inputs
Memory: 16,383 readings/channel
Input connection: Screw terminal
Input Impedance: 10 Ω
ADC Resolution: 16 bits
Current Calibration: Digital calibration is available through software
Calibration Date: Automatically recorderd within device to alert user when calibration is required
Recording Interval: 1 second to 12 hours able with software
Start Time: Start time and date are programmable through software
Real-Time Recording: Device can be used with PC to monitor and record data in real time
Memory Wraparound: able in software
Power: 9 V lithium battery (included); 120 Vac power optional
Battery Life: 1 year typical
Time Accuracy: ±1 minute per month at 20°C
Data Format: Date and time stamped in μA, mA, A and other engineering units
programmable through software
Weight: 480 g (17 oz)
Computer Interface: PC serial, RS-232C COM or USB (interface cable required)
Software: XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: 40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing
Dimensions: 38 H x 111 W x 89 mm D (1.5 x 4.4 x 3.5")
Material: Black anodized aluminum

产品型号 产品描述

电池供电模式

OM-CP-OCTPROCESS-1MA 8-channel current data logger, ±1mA range, with battery power

OM-CP-OCTPROCESS-1MA-CERT 8-channel current data logger, ±1mA range with battery power and NIST calibration certificate

OM-CP-OCTPROCESS-25MA 8-channel current data logger, ±25 mA range with battery power

OM-CP-OCTPROCESS-25MA-CERT 8-channel current data logger, ±25 mA range

OM-CP-OCTPROCESS-100MA 8-channel current data logger, ±100 mA range with battery power

OM-CP-OCTPROCESS-100MA-CERT 8-channel current data logger, ±100 mA range with NIST w/battery power and calibration certificate


交流供电模式

OM-CP-OCTPROCESS-100MA-AC 8-channel current data logger, ±100mA DC Current Recorder w/AC Power

OM-CP-OCTPROCESS-100MA-AC-CERT 8 Channel Low Level, ±100mA DC Current Recorder w/AC Power and Cert

OM-CP-OCTPROCESS-1MA-AC 8 Channel Low Level,±1mA DC Current Recorder w/AC Power

OM-CP-OCTPROCESS-1MA-AC-CERT 8 Channel Low Level,±1mA DC Current Recorder w/AC Power and Cert

OM-CP-OCTPROCESS-25MA-AC 8 Channel Low Level, ±25mA DC Current Recorder w/AC Power

OM-CP-OCTPROCESS-25MA-AC-CERT 8 Channel Low Level, ±25mA DC Current Recorder w/AC Power and Cert


软件和选配件

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT103 Replacement 9 V alkaline battery

OM-CP-CONNECTOR-3 Replacement 3 POSTTTION terminal block connector

注释: Operator's manual and RS-232 cable are included with the OM-CP-IFC200 WINOOWs software (software is required to operate the data logger and is sold separately). To order data loggers with optional 120 Vac power, add suffix "-AC" to model number and add $100 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
订购示例: (1) OM-CP-IFC110 WINOOWs software and 1.2 m (4') RS-232 cable with DB9F termination,

OM-CP-OCTPROCESS-25MA-AC
