OM-CP-BRIDGE120-1000详细介绍

OM-CP-BRIDGE120-1000

电桥/应变片数据记录器
OM-CP-BRIDGE120 Series
5年保修 CE
电桥/应变片数据记录器
OM-CP-BRIDGE120 Series:电桥/应变片数据记录器

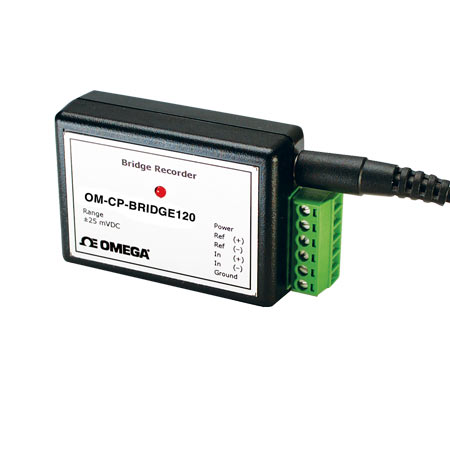

OM-CP-BRIDGE120-25
高速下载
20 Hz的处理速度
桥式传感器激励
可编程的开始时间
可重复使用的
小尺寸
读取应变和工程单位
对于许多应用程序的通用输入
该om-cp-bridge120系列是电池供电的，的数据记录器，测量和应变计记录的电压信号，负载细胞和其他低电平直流源。这些紧凑的单位是完美的监测应力，扭矩，应变，从许多其他传感器/变送器压力和数据。
om-cp-bridge120系列数据记录器是可用的范围从10到1000 mV±±，并能够存储多达32767个读数，和多达20个读数/秒。该om-cp-bridge单位具有非易失性内存，可储存读数，即使当电池放电。数据检索是快速和容易–简单地插到一个可用的USB端口。该om-cp-ifc软件在一个易于使用的图形化显示你的数据，所以你可以很快的分析你的数据。各种各样的功能强大的工具，允许你检查，出口和打印专业的数据只需鼠标点击。

规格
Input Connection: 6-POSTTTION removable screw terminal
Input Impedance: 1 MΩ during acquisition, low impedance when inactive
Reference Voltage Output: 2.5 Vdc, 2.5 mA (1 KΩ) maximum load
Maximum Input Signal Impedance: 5 KΩ (350 Ω sensors can be used with series resistors
to produce gt;1 KΩ; 120 Ω gages can be used in half and quarter bridge configurations)
Specified Accuracy: Nominal Range @ 25°C
Temperature Effect on Span and Offset: lt;25 μV over -40 to 80°C
Engineering Units: Stored in device; user may define any desired scale
and offset from ±1.0000E-31 to ±9.9999E+31
Start Modes: Software programmable immediate or delay start up to 1 day
Real-Time Recording: May be used with PC to monitor and record data in real-time
Memory: 32,767 readings; software configurable memory wrap
Reading Rate: 20 Hz to 12 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
to alert user when calibration is required
Battery Type: 3.6 V lithium battery (included); user replaceable
Battery Life: 25 days
Power: 3.6 V lithium battery included
Data Format: Date and time stamped: %, ppm; e, μe, V, mV, μV engineering units
specified through software
Time Accuracy: ±1 minute per month at 20 to 30°C
Computer Interface: PC serial, or USB (interface cable required); 57,600 baud
Software: XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing
Dimensions: 42 H x 68 W x 20 mm D (1.7 x 2.7 x 0.8")
Weight: 60 g (2 oz)

产品型号 产品描述

OM-CP-BRIDGE120-10 Bridge input data logger (±10 mV input range)

OM-CP-BRIDGE120-10-CERT Bridge input data logger (±10 mV input range) with NIST calibration certificate

OM-CP-BRIDGE120-25 Bridge input data logger (±25 mV input range)

OM-CP-BRIDGE120-25-CERT Bridge input data logger (±25 mV input range) with NIST calibration certificate

OM-CP-BRIDGE120-100 Bridge input data logger (±100 mV input range)

OM-CP-BRIDGE120-100-CERT Bridge input data logger (±100 mV input range) with NIST calibration certificate

OM-CP-BRIDGE120-1000 Bridge input data logger (±1000 mV input range)

OM-CP-BRIDGE120-1000-CERT Bridge input data logger (±1000 mV input range) with NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT105 Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-6 Replacement 6 POSTTTION terminal block connector

注释: Comes complete with terminal block connector, and 3.6V lithium battery. Operator’s manual and interface cable are included with the OM-CP-IFC200 software (required for data logger operation and sold separately).
订购示例: (1) OM-CP-BRIDGE120-100 Bridge input data logger (±100 mV input range)

OM-CP-BRIDGE120-1000
