iNET-555详细介绍

iNET-555

可扩展模块化数据采集系统
iNET-400
1年保修 新产品! CE
可扩展模块化数据采集系统
iNET-400:可扩展模块化数据采集系统

inet-555
直接连接到热电偶，热电阻，热敏电阻，应变计，称重传感器，电压，电流，电阻和加速度计的输入
扩展到超过1000个频道
模拟和数字输入和输出
自由软件世界instrunet
USB 2高速数据采集的硬件WINOOWs XP SP2≥，Vista，7或8（XP / VS／7／8）
把箱子附近的传感器和高达1000的降低噪声从嘈杂的电脑
数字化的任何组合的信道每秒总样本166000
每个通道都有的可编程模拟滤波器，积分时间，电压范围，和采样率；可编程的数字滤波器对所有通道（LP，惠普，BP，BS）

该inet-400系统是一种低成本的卡笼连接到WINOOWs电脑通过USB 2。
一个卡笼的优点是你可以选择的I / O模块安装需要一个定制的系统。该instrunet卡笼通常有一一/ D测量模块和其他模块提供的信号调理。有条件的模拟信号送到A/D模块通过背板。这是从哪个地方比较系统的A/D测量电子在每个模块的不同。
的inet-400拓扑的优点是成本。安装后的模块，附加条件inet-400通道每通道成本非常低。inet-400测量模块的通用输入，使一个直接连接的每个频道之一：热电偶，热敏电阻，应变计，称重传感器，计数器/定时器，温度，电压，电流，电阻和加速度计。所有这些传感器类型指定精度。在某些情况下，终用户将外部分流电阻。通用输入的优点是成本。

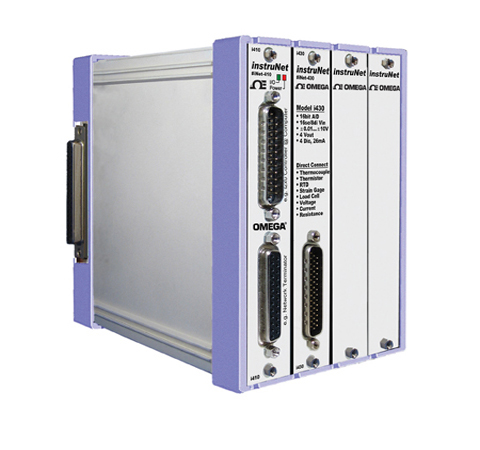

低成本的4 / 8 / 12 / 16插槽的卡笼
该inet-400卡笼提供了4个插槽，和多inet-400可以连接在一起的终用户，并排，创建一个8，12，或16槽系统。在许多应用中，一个inet-400 4槽是足够的。
该inet-400卡笼15 x 11 x 14 cm H（6 x 4.5 x 5.6”）的大小。该插槽的编号，# 1是左边的槽，# 2到1 #右，等等等等。卡持有与jackscrews，用一字螺丝刀紧固位置。槽# 1是一种特殊的槽，用于与计算机接口。
该inet-410卡滑入插槽# 1和电缆的计算机通过DB25电缆连接到一instrunet控制器。同时，一个inet-300电源适配器电缆适用于电源线
inet-312-8台式电源的inet-410接口卡槽# 1，这反过来路线，电源卡笼底板（即PCB在卡笼相连的所有卡背面）。

The iNET-400 Card Cage needs at least one iNET-430 A/D card if analog voltages are to be measured. The iNET-430 cards includes an A/D converter and serves this purpose. The iNET-420 and iNET-423 cards contain various signal conditioning circuits and route signals along the backplane to the iNET-430 for measurement. This happens automatically and does not require programmer intervention, other than ion of cards and attaching end user signals to the card’s front panel connectors.

iNET-240 instruNet DSP Card
Each instruNet Network is controlled by an instruNet DSP controller card that attaches to a Microsoft WINOOWs computer. The iNET-240 attaches to a free USB 2.0 high speed port (requires WINOOWs ≥ XP Sp2). Each Controller is an independent computer in itself that utilizes a powerful 32-bit DSP processor and onboard RAM to control all aspects of data acquisition along its network. All real-time tasks are off-loaded to this processor, therefore the host computer is not burdened with real-time issues. Between 1 and 4 controllers can be installed, space permitting, since each controller operates independently.

Connect up to 8 iNET-400 Card Cages
Each instruNet network supports up to 8 instruNet iNET-400 card cages.

instruNet Network
These devices are connected in a daisy-chain configuration to form a chain of Devices. Each network can be up to 300 meters long. All networks are anchored with an instruNet Terminator at the far end, and an instruNet Controller at the near end. This makes instruNet a cost effective method for designing large scale, high speed, multi-channel data acquisition systems.

instruNet Version ≥ 3.0 software requires WINOOWs XP, Vista, 7 or 8 (XP/VS/7/8) computer with at least 256MB of RAM Memory and at least 256 MB of free disk space. The iNET-240 USB controller requires 32-bit or 64-bit WINOOWs XP SP2 (service pack #2) or newer.

iNET-410 Communications Card
The iNET-410 communications card connects an iNET-400 card cage to a WINOOWs computer via an instruNET iNET-240 USB controller. The iNET-410 plugs into the left-most slot (slot #1) of an iNET-400 card cage. One and only one iNET-410 is required per iNET-400 card cage when working with instruNet controllers. The iNET-410 provides the following features:
Two DB25 connectors allow daisy-chaining multiple iNET-400 card cage devices to one instruNet controller card.
Front panel red power light shows presence of 5V, 12V and -12V power.
Front panel green I/O light blinks when computer communicates with card cage.
Includes one DB25 male to female 3 m (10') cable.

iNET-420 Analog I/O Module
The iNET-420 provides 20 single-ended (SE)/10 differential (DI) voltage input channels and 4 universal digital I/O (20 mA sink, -10V to 30V) and requires the iNET-430 A/D module to measure voltages. The iNET- 420 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs.

iNET-423 Analog I/O Module
The iNET-423 provides 6 differential (DI) voltage input channels, 4 universal digital I/O (20 mA sink,
-10 to 30V) and requires the iNET-430 A/D module to measure voltages. The iNET-423 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs. Each input channel passes through it’s own amplifier with a software able gain of 1 or 64 and optional low pass filter. The 8-pole iNET-500 analog low pass Butterworth filter daughter board is ideal for anti-aliasing. Between one and six filter daughter boards can be installed onto each iNET-423 card (one per channel). There are four different analog low pass filters, each with a different cut off frequency: iNET-500-380HZ, iNET-500-1KHZ, iNET-500-3300HZ and iNET-500-10KHZ.

iNET-430 A/D Module
The iNET-430 provides 16 single-ended (SE)/8 differential (DI) voltage input channels with a 16-bit A/D converter, 2 precision analog voltage outputs (±10V, 14-bit D/A), 2 analog voltage outputs (0 to 10 V output, 8-bit D/A) and 4 universal digital I/O (20 mA sink, -10 to 30 V). The iNET-430 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs.

iNET-460 Digital I/O Module
The iNET-460 provides 12 universal digital I/O (20 mA sink, -10 to 30 V)
and 16 digital I/O (200 mA sink, -10 to 30 V).

NET-400 cards are installed by the end user into an instruNET card cage that is 4, 8, 12 or 16 slots wide. Each card is 13 x 2.5 x 13 cm (5.1 x 1.0 x 5.1") in size. Below is a list of available cards.

产品型号 产品描述

Starter System

iNET-555 Starter system, USA plug

iNET-555-EU Starter system, European plug

iNET-400 Cards

iNET-410 Interface between iNET-240 contoller and iNET-400 card cage

iNET-420 20SE/10DI voltage input, multiplexer, 4 digital I/O

iNET-423 6DI voltage input, amplifier, filter, 4 digital I/O

iNET-430 16-bit A/D, 16SE/8DI voltage input, multiplexer, 4 voltage out, 4 DIO

iNET-460 28 digital I/O channels


iNET-400 Card Cage

iNET-400 Card cage for iNET-410/420/423/430/460 cards, 4 slots, expandable


选配件

iNET-510 Wiring box with screw terminals requires iNET-312-8 power supply

iNET-HD44MF-3M Cable, Hd44m to Hd44f, 26 Awg, 3 m (10')

iNET-330 Optical isolator between iNET-240 controller and device

iNET-530 Wall and DIN rail mounting kit for one iNET-400 card cage


InstruNet Controller

iNET-240 instruNet network terminator and intruNet World software on CD (requires iNET-312-8 power supply).


Power Supplies

iNET-312-8 Power supply, USA Plug, 110/220 Vac, (includes iNET-300 power adaptor)

iNET-312-8EU Power supply, European plug, 110/220 Vac, (includes iNET-300 power adaptor)

iNET-300 Power adaptor


软件

iNET-iWPLUS

iNET-iWPLUS instruNet World Plus software (iW+)


并联电阻

iNET-R-33 iNET-R-33 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-120 120 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-350 350 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-1K 1000 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-3300 3300 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-10K 10 kΩ, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-10K 10 kΩ, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-33K 33 kΩ, 8-pack, 0.05%, 5 ppm/°C drift
