OM-THA2-U-CAL-3-HU

数据采集 ? ? OM-THA2-U
Temperature Humidity Alarm with Logging Capability

Audible and Visual Alarm
Digital Display
Log Up to 170 Days of Data
Relay Contacts for Remote Alarm or Auto Dialer
Remote Sensor
USB Connection
WINOOWs Software Included Free
Ideal for Supermarkets, Food Markets, Convenience Stores
Restaurants, Florists, Greenhouses
Laboratories, Pharmaceutical Storage Facilities
Refrigerated Transport, Cold Chain Facilities
Computer Rooms

产品描述

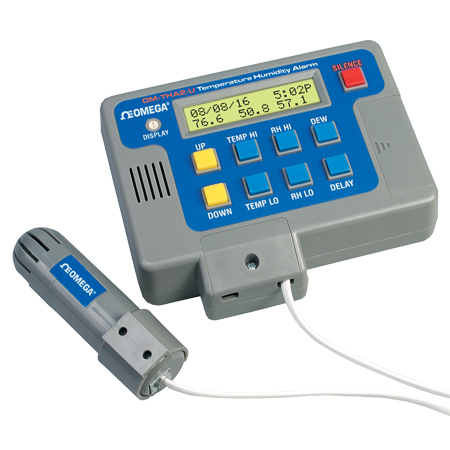

The OM-THA2-U is a multi-function unit that monitors temperature, relative humidity and dew point. The OM-THA2-U records data and generates an alarm for any out-of-range conditions. It consists of a base unit with an easy-to-read display and a 4.6 m (15') remote sensor probe.

The alarm function monitors temperature, relative humidity and dew point once every second. If any of the readings reach an alarm threshold, the unit generates an alarm by turning on a beeper and a dry relay contact. The relay can be connected to a telephone dialer, light or bell. The delayed alarm feature can reduce false alarms by ignoring short duration alarm conditions. The unit will also generate an alarm on probe failure.

The logger function records the data into an internal non-volatile memory at a user specified interval. The recording is performed continuously after the unit is turned on. No computer set-up is necessary to start logging, and all logging settings can be viewed or changed through the front panel functions. When the internal memory becomes full the recording rolls over, overwriting the oldest recorded data. Review logged data on a computer using the included WINOOWs software while continuously recording new data.

All the operating settings of the OM-THA2-U can be changed from the front panel without the need for a computer. The two-line display provides an easy-to-read means of viewing or changing settings.

Specifications
Sensor Probe
Operating Temperature Range: -40 to 60°C (-40 to 140°F)
Operating Humidity Range: 0 to 90% RH non-condensing
Temperature Accuracy: ±1°C (±2°F)
Temperature Resolution: 0.1°C (0.1°F)
Humidity Accuracy: ±2% RH
Humidity Resolution: 0.1% RH
Calibration: User calibration for temperature and relative humidity
Dimensions: 9.65 L x 2.79 cm dia (3.8 x 1.1")
Weight: 25 g (0.9 oz)
Cable Length: 4.6 m (15')
Base Unit
Operating Temperature Range: 0 to 54°C (32 to 132°F)
Storage Temperature: -18 to 54°C (0 to 130°F)
Operating Humidity: 0 to 90% RH, non-condensing
Power: 12 to 24 Vac/Vdc, 0.78W alarm active
Battery Backup: 9V alkaline battery for 25 hrs operation during power outage
Relay: 5A/250V NO/NC dry contact, resistive load
Dimensions: 14 L x 11.4 W x 4.1 cm dia (5.5 x 4.5 x 1.6")
Weight: 245 g (8.6 oz)
Alarm
Temperature/Relative Humidity Alarm: High/low temperature and humidity alarms, condensation alarm
Alarm Delay: Up to 2 hrs, user-able
Alarm Indication: Audible/visual/relay
Logging
Sample Rate: 1 sec to 30 min, user-able
Data History Storage: 2 hrs to 170 days, depending on sample rate
Memory Capacity: 8150 samples for temperature, humidity and dew point
Software Compatibility: WINOOWs XP/Vista/7/8/10 (32-bit and 64-bit)

产品编号 产品描述

OM-THA2-UTemperature/humidity alarm

OM-THA2-U-CAL-3-HUTemperature/humidity alarm with NIST calibration certificate

OM-THA2PReplacement remote sensor probe

OM-THA2-ADAPReplacement 115 Vac power adaptor

OM-THA2-ADAP-220VReplacement 220 Vac power adaptor

========
