OM-143

数据采集 ? ? OM-140-Series
Portable Temperature/Humidity Data Loggers with USB Interface

One But Starts/Stops Data Logging Without a PC
Plug-and-Play USB 2.0 Interface; No Need for Cables, Cradles or Docks
Large Storage Capacity: 16,000 Pairs of Temperature and Humidity Readings
3?-Digit LCD Displays Real-Time Temperature and RH Readings, Device Working Status and “Memory Full” (OM-143 and OM-144 Only)
Built-In Infrared Thermometer for Checking Temperature of Vents and Surfaces (OM-144 Only)
Sampling Time and Hi/Lo Temperature and RH Alarm Setpoints are able Using Included Software
Software Also Calculates Dew Point and Wet Bulb Temperatures, and Mixing Ratio as GPP (Grains per Pound) or GPK (Grams per Kilogram)
One-Click Exporting of Logged Data to Excel® or Word
Long Battery Life (Up to One Year)

产品描述
The OM-140 Series are low-cost, compact, batterypowered temperature/humidity data loggers capable of unattended logging (recording) of the ambient temperature and relative humidity (RH) of an environment for days, weeks or months. The OM-144 data logger can also measure and optionally log surface temperatures spot-checked by a technician using the unit’s integral infrared (IR) thermometer. In addition, these units can also calculate and display absolute humidity levels in units of grains per pound (GPP) or g/kg. Also called mixing ratio, GPP is a more useful moisture metric than RH to water damage restorers. Using RH alone, a restorer might unknowingly introduce moist air—with a low RH but a high GPP—during a job’s drying phase.

Data logging can be started or stopped by pushing a but on the unit, eliminating the need to bring a laptop to the job site. After a data log has been captured and stored, it can be uploaded as a .txt file to any PC running the WINOOWs® XP/7 or 8 operating system after plugging the data logger into one of the computer’s USB ports. The data logger’s internal flash memory is large enough to store 16,300 pairs of temperature and RH readings or for the model OM-144 nearly 10,000 sets of RH, ambient temperature and surface temperature readings. Included with the product is a mini-disc with the drivers needed to interface the unit to the computer, as well as software that can display a data log file as a table or graph and/or export it to Microsoft Excel. Exporting to Excel is recommended for sophisticated trending and analysis of humidity and temperature data and easy detection of unexpected excursions.

产品编号 产品描述

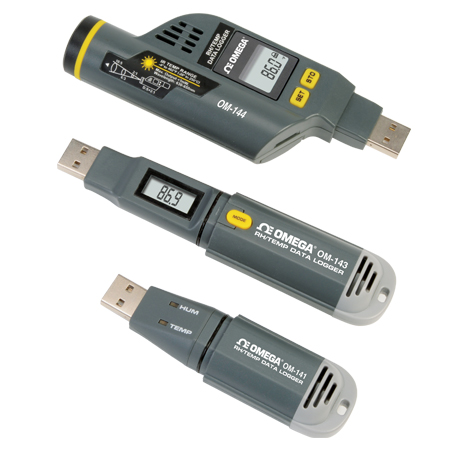

OM-141Temperature/humidity data logger

OM-143Temperature/humidity data logger with LCD display

OM-144Temperature/humidity data logger with LCD display and built-in infrared thermometer

OM-EL-BATTReplacement 3.6V lithium battery

========

OM-143

OM-141
OM-143
OM-144
