RDX40-BK详细介绍

RDX40-BK

测试与测量 ? 记录仪和数据记录仪 ? 平板记录仪 ? RD45A amp; RD46A
200mm (8")单和双通道平板记录仪，14输入量程，从1mV ～ 20Vdc

2年保修CEOmegaCareRoHS
14 input Ranges from 1 mV to 20 Vdc
HOME Function Returns Pen to Plot Start
GRID Function Aligns Pen to Paper Grid
Zero Suppression from –100 to 500%
Even Marker Standard
Electric Pen Lift and Remote Control Options
Pen Offset Compensation Optional

产品描述

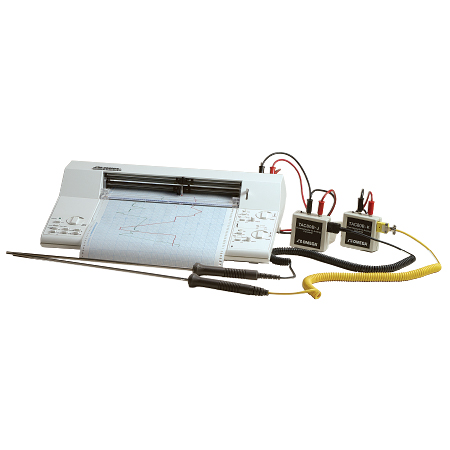

The RD45A single channel and RD46A dual channel flatbed recorders are ideal instruments for use in research, development and production, as well as in service and education applications. Designed for ease of use, these recorders have an ergonomic shape which allows the user to easily write comments on the chart, even next to the pen.

The wide, 200 mm (8") chart is capable of recording measurements from 1 mV full scale to 20 V. Chart speeds from 0.1 mm/min to 20 mm/sec (1 mm = 0.03937") are available. The electric pen lift function will automatically lift the pens if the chart has not been advanced for 30 seconds; this will lengthen pen life, as well as keep the chart paper clean and easy to read.

The RD45A and RD46A have built-in HOME and GRID functions.
The home function is useful for comparative measurements, where the chart is rewound automatically to the same starting point. The grid function moves the pen to an exact grid line on the chart, which allows for easy repetitive measurements. As an option, pen offset compensation is available. This eliminates the recording offset caused by the distance between the two pens.

产品编号 产品描述


RD45A-EPL Single channel recorder with electrical pen lift, 200 mm (8")
RD46A-EPL Dual channel recorder with electrical pen lift, 200 mm (8")
RDX40-RD1 6 red pens, channel 1; also event marker
RDX40-BL 6 blue pens, channel 1
RDX40-GR 6 green pens, channel 1
RDX40-BK 6 black pens, channel 1
RDX40-RD2 6 red pens, channel 2
RDX40-BK2 6 black pens, channel 2
RDX40-RP 10 rolls of chart paper, 25 m (82') each

产品编号

RD45A-EPL
RD46A-EPL
RDX40-RD1
RDX40-BL
RDX40-GR
RDX40-BK
RDX40-RD2
RDX40-BK2
RDX40-RP

RD45A-EPL
RD45A-EPL-CAL-3
RD45A-EPL-UKCAL-3

RDX40-BK
