OM-EL-WIFI-TH

过程测量和控制仪器 ? 通信 ? OM-EL-WIFI-ALERT

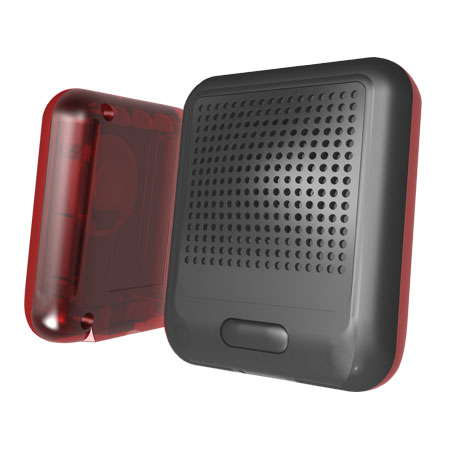

Audible and Visual Alarm for OM-EL-WIFI Series Temperature and Humidity Data Loggers
OM-EL-WIFI-ALERT

Detects Alarms from any OM-EL-WIFI Series Temperature and Humidity Data Logger on the Same Wireless Network
Audible Alarm with Built-in Speaker
Visual Alarm from High Brightness LEDs
Continues to Work When the PC is Turned Off
Easy Set-Up Using the Free PC Software Application (Downloadable from OMEGA)
Rechargeable Internal Lithium Polymer Battery for Short Term Backup During AC Power Failure

产品描述
The OM-EL-WIFI-ALERT is a stand-alone monitoring system for all OM-EL-WIFI Series data loggers. The OM-EL-WIFI-ALERT will receive alarm messages from any OM-EL-WIFI Series temperature and humidity data logger connected to the same wireless network. The OM-EL-WIFI-ALERT indicates an alarm activation using high brightness LEDs and a choice of nine alarm es. The OM-EL-WIFI-ALERT continues to work when the nn PC is turned off.

The OM-EL-WIFI-ALERT has been designed to be continuously powered via the included AC power adaptor. However it does contain a rechargeable lithium polymer battery for device POSTTTIONing and limited power during the event of a power failure.

The WiFi signal strength indicator is activated by pressing the OM-EL-WIFI-ALERT but three times. All LEDs and a fast beep indicate a strong signal. Limited LEDs and slow beep indicate a weak signal.

The audible alarm can be muted by pressing the OM-EL-WIFI-ALERT but once or remotely from the PC software. There is also a configurable auto-mute function.

Set-up is completed through software installed on the PC. This software is available to download for free from OMEGA online. Free firmware downloads are also available.

After initial set-up, audible and visual alerts can be re-configured wirelessly using the PC software.

The OM-EL-WIFI-ALERT can be attached to a wall or flat surface using the bracket provided, and has a protection rating of IP44 (with cable connected).

SPECIFICATIONS
Wireless Network: This device is IEEE 802.11b compliant, supports WEP, WPA/WPA2 and WPA-Enterprise (MS-CHAPv2, PEAP, EAP-FAST, EAP-TTLS)
Sound Output: 100 dBA @ 1m
Operating Temperature: 0 to 40°C (32 to 104°F)
USB Supply Voltage: 4.5 V min, 5.0 V typical, 5.5 V max
Power: 100/240 Vac via included AC power adaptor (USA plug). Optional UK and EU power adaptors available. Internal rechargeable lithium polymer battery for device POSTTTIONing and limited backup power during the event of a power failure.
Enclosure: IP44 (with cable connected)
Weight: 133 g (4.7 oz)

产品编号 产品描述


OM-EL-WIFI-ALERT Audible and visual alarm for OM-EL-WIFI Series temperature and humidity data loggers

OM-EL-WIFI-BRACKET Wall mount bracket

OM-EL-WIFI-ADAPTOR Spare 100/240 Vac 50/60 Hz power adaptor (USA plug)

OM-EL-WIFI-ADAPTOR-UK Optional 100/240 Vac 50/60 Hz power adaptor with UK plug

OM-EL-WIFI-ADAPTOR-EU Optional 100/240 Vac 50/60 Hz power adaptor with EU plug
