OM-CP-THERMALERT-GB250详细介绍

OM-CP-THERMALERT-GB250

数据采集 ? 数据记录仪 ? 数据记录仪查找 ? OM-CP-THERMALERT-GB_P Series
温度监控和报系统，带
双通道通讯
OM-CP-THERMALERT-GB_P Series

Precision RTD Sensing Element
View Data in Real-Time
Glycol Bottle (OM-CP-THERMALERT-GB Only)
2 Year Battery Life
Battery Life Indicator
Field Upgradeable

产品描述

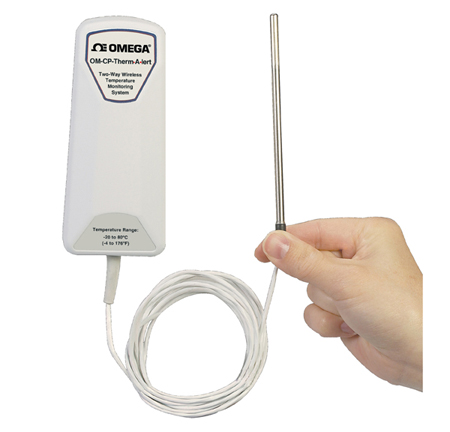

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P are temperature monitoring and alarming systems designed for use in hospitals, laboratories, pharmaceutical facilities and other critical temperature monitoring areas. Also, these units can be used to monitor a single temperature LOCAIION or expanded to include hundreds of LOCAIIONs by adding additional transmitters. These units record both ambient temperature and humidity.

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P provides real time notification of temperature deviations, and features a user programmable alarm that can be configured to send a message via text message, screen alarm and/or e-mail if an alarm condition occurs. The OM-CP-THERMALERT-GB system includes an RTD probe that is mounted in a miniature bottle filled with ethylene glycol. In this method, a temperature “buffered” reading is taken, preventing false alarms. The OM-CP-THERMALERT-P system includes an RTD probe with a 0.9 m (3') lead wire and a 114 mm (4.5") probe sheath.

The OM-CP-THERMALERT-GB and OM-CP-THERMALERT-P system is equipped with wireless two-way communication. Full communication can be performed directly from a central PC, including starting, stopping and downloading. In addition to wirelessly transmitting data, both units store each reading to internal memory for backup. This back up data may be retrieved wirelessly at a later time. Customers can set-up automatic archiving preferences, ensuring all data is saved and retained to comply with federal regulations.

Specifications
TEMPERATURE
Probe Temperature Range:
OM-CP-THERMALERT-GB:
-50 to 80°C (-58 to 176°F)
OM-CP-THERMALERT-P:
-200 to 260°C (-328 to 500°F)
Probe Calibrated Accuracy:
±0.1°C, -20 to 80°C (-4 to 176°F)
±0.5°C (outside of that range)
Resolution: 0.01°C (0.018°F)

WIRELESS
RF Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver
with fully bi-directional communication
Band: ISM band 2.405-2.48 GHz
Maximum Output Power: +0dBm typical
Receiver Sensitivity (OM-CP-RFC1000-EXT): -95dBm typical
Range:
Outdoor Line-of-Sight 610 m (2000')
Indoor: 152 m (500')

GENERAL
Reading Rate: One reading every two seconds to one every 24 hours
Memory: 30,000 readings; software configurable memory wrap
Wrap Around: Yes
Start Modes:
? Immediate start
? Delay start up to 18 months
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery (included); user replaceable
Battery Life: 2 years typical
Data Format: Date and time stamped oC, oF, K, oR
Time Accuracy: ±1 minute/month (at 25°C)
Computer Interface: OM-CP-RFC1000-EXT required; 115,200 baud
Software: XP SP3/Vista/7 and 8 (32- and 64-bit)
Operating Environment: -20 to 80oC (-4 to 176oF),
0 to 95% RH non-condensing
Dimensions:
Data Logger:
55 W x 127 L x 33 mm D
(2.2 x 5.0 x 1.3")
Wire: 2.7 m (9')
Probe: 0.19 dia x 114 mm (3/16 x 4.5")
Enclosure Material: ABS plastic

注: Comes complete with 3.6V lithium battery. Operator’s manual, WINOOWs software and USB interface cable are included with the OM-CP-RFC1000-EXT wireless transceiver package (required to operate the data logger, sold separately).

产品编号 产品描述

OM-CP-THERMALERT-GB30 Wireless temperature transmitter with RTD probe and 30 ml glycol bottle


OM-CP-THERMALERT-GB30-CERT Wireless temperature transmitter with RTD probe and 30 ml glycol bottle and NIST certificate


OM-CP-THERMALERT-GB60 Wireless temperature transmitter with RTD probe and 60 ml glycol bottle


OM-CP-THERMALERT-GB60-CERT Wireless temperature transmitter with RTD probe and 60 ml glycol bottle and NIST certificate


OM-CP-THERMALERT-GB250 Wireless temperature transmitter with RTD probe and 250 ml glycol bottle


OM-CP-THERMALERT-GB250-CERT Wireless temperature transmitter with RTD probe and 250 ml glycol bottle NIST certificate


OM-CP-THERMALERT-P Wireless temperature transmitter with precision RTD probe


OM-CP-THERMALERT-P-CERT Wireless temperature transmitter with precision RTD probe and NIST certificate


OM-CP-RFC1000-EXT Wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator's manual (not CE approved)


OM-CP-RFC1000-EXT-EUR Wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator's manual (CE approved)


OM-CP-RFC1000-IP69K Splash proof (IP69K) wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator's manual (not CE approved)


OM-CP-BAT109 Replacement 3.6V lithium battery
