OM-CP-RFRTDTEMP2000A-CERT

数据采集 ? 传感器, 发送器, 接收器, 仪表和控制器 ? OM-CP-RFRTDTEMP2000A

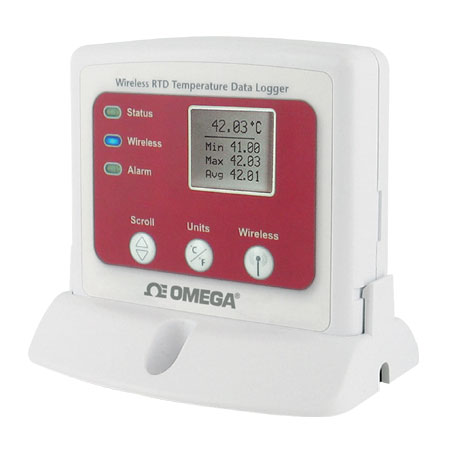

Wireless RTD Temperature Data Logger with Display
OM-CP-RFRTDTEMP2000A

Wireless Two Way Communication
100Ω Pt RTD Input
View Data in Real Time
5 Year Battery Life
Battery Life Indicator
Field Upgradeable
Audible and LED Alarm Indicators
Cumulative Alarm Delay

产品描述
The OM-CP-RFRTDTEMP2000A is an RTD-based, wireless precision temperature data logger with display. This data logger is ideal for applications that require high accuracy temperature monitoring such as within laboratories, pharmaceutical and biotech industries. The OM-CP-RFRTDTEMP2000A accepts 2, 3 or 4-wire 100Ω platinum RTD’s and features a device accuracy of ±0.05°C. Starting, stopping and downloading from the device are all performed wirelessly using the OM-CP-RFC1000-EXT wireless transceiver, allowing the user to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals. The convenient digital display provides the current reading as well as minimum, maximum and average statistics for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm setting. Through the software, email and text message alarms can also be sent. The OM-CP-RFRTDTEMP2000A can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional wireless loggers and transceivers may be required). Data retrieval is simple. Plug the device into an available USB port and our easy-to-use software does the rest. The software converts a PC into a real-time strip chart recorder. The data logger software is a powerful, analytic tool. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.

SPECIFICATIONS
TEMPERATURE
Input Type: 2, 3 or 4-wire 100Ω Pt RTD, alpha = 0.00385
Temperature Range: -200 to 850°C (-392 to 1562°F)
Temperature Resolution: 0.001°C (0.0018°F)
Calibrated Accuracy: ±0.05°C (± 0.9°F), ±0.01Ω
Response Time: 10 minutes free air
WIRELESS
RF Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication
Band: ISM band 2.405 to 2.48 GHz
Maximum Output Power: +0dBm typical
Receiver Sensitivity (OM-CP-RFC1000-EXT):-95dBm typical
Range: 610 m (2000') maximum outdoors (line of sight unobstructed); 152 m (500') maximum indoors (typical urban)
GENERAL
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Memory: 21,504 readings
LED Functionality:
? Green LED blinks every 5 seconds to indicate unit is logging
? Blue LED blinks every 15 seconds to indicate unit is in wireless mode
? Red LED blinks every 1 second to indicate alarm condition
Memory Wrap Around: Yes
Start Modes: Immediate start and delayed start
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 9V lithium battery included; user replaceable
Battery Life: 5 years typical at 15 minute reading rate, 4 years typical at 1 minute reading rate
Data Format:
? For Display: °C, °F or Ohms
? For Software: Date and time stamped °C, K, °F, °R or Ω
Time Accuracy: ±1 minute/month
Computer Interface: USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000-EXT, OM-CP-RFC1000-EXT-EUR or OM-CP-RFC1000-IP69K required for wireless operation
Software: XP SP3/Vista/7/8 (32- and 64-bit)
Operating Environment: -20 to 60°C (-4 to 140°F), 0 to 95% RH non-condensing
Dimensions: 82.6 H x 88.9 W x 24.1 mm D (3.25 x 3.5 x 0.95") data logger only
Weight: 116g (4.1 oz)
Enclosure Material: ABS Plastic
Alarm: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits
Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data
Audible Alarm Functionality: 1 beep per second for reading alarm above/below threshold

产品编号 产品描述


OM-CP-RFRTDTEMP2000A Wireless RTD temperature data logger with LCD display

OM-CP-RFRTDTEMP2000A-CERT Wireless RTD temperature data logger with LCD display and NIST calibration certificate

OM-CP-RFC1000-EXT Wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator’s manual (not CE approved)

OM-CP-RFC1000-EXT-EUR Wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator’s manual (CE approved)

OM-CP-RFC1000-IP69K Splash proof (IP69K) wireless transceiver package includes RF transceiver, USB cable, WINOOWs software and operator’s manual (not CE approved)

OM-CP-BAT103 Replacement 9V lithium battery
