OM-CP-PR140-LUERFITTING详细介绍

OM-CP-PR140-LUERFITTING

数据采集 ? ? OM-CP-PRTEMP140

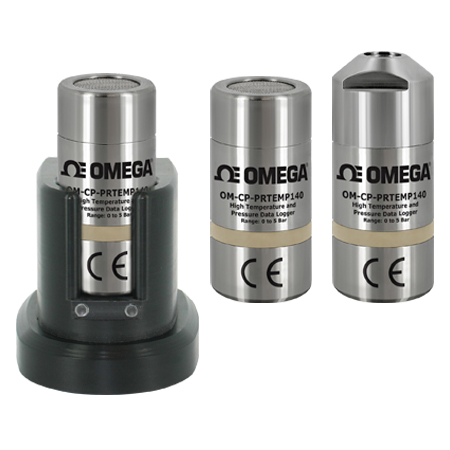

High Temperature and Pressure Data Logger
OM-CP-PRTEMP140

Operates up to 140°C (284°F)
Submersible (IP68)
User Replaceable Battery
Rugged Stainless Steel Body
Programmable Start Time
Software Battery Life Indicator
Flush Mount (OM-CP-PRTEMP140-LVL) or 1/8 NPT Pressure Port (OM-CP-PRTEMP140-NPT)

产品描述
The OM-CP-PRTEMP140 is a high temperature and pressure data logger all in one, created specifically for use in autoclave validation, mapping studies and pressurized processes. Featuring the familiar body style of the OM-CP-HITEMP140 Series of data loggers and made of rugged stainless steel, this dual purpose device is less than 64 mm (2.5") in length, allowing it to fit discretely inside small spaces.

The OM-CP-PRTEMP140 data logger downloads temperature and pressure data simultaneously and displays the combined results in a single graph, simplifying data collection and analysis and eliminating unnecessary steps for the user. This data logger is able to measure and record temperatures from -20 to 140°C (-4 to 284°F), and pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions. The memory capacity on the OM-CP-PRTEMP140 stores up to 32,700 time and date stamped readings and will retain data even if the battery becomes discharged.

The OM-CP-PRTEMP140 utilizes the latest software, making the entire process from starting the device to analyzing data, efficient and easy for the user. Downloaded data can be viewed in various formats including graphic and tabular and can also be exported to Excel® for further analysis and calculations.

SPECIFICATIONS
Pressure
Sensor: Strain gauge
Range: 0 to 5 bar
Resolution: 0.0001 bar
Calibrated Accuracy: ±0.03 bar (20 to 140°C)
Temperature
Sensor: Resistance temperature detector (RTD)
Range: -20 to 140°C (-4 to 284°F)
Resolution: 0.01°C
Calibrated Accuracy: ±0.1°C (20 to 140°C)
General
Start Modes:
? Immediate start
? Delay start up to 18 months in advance
Stop Modes: Manual or timed (specific date and time)
Real Time Recording: May be used with PC to monitor and record data in real time
Memory: 32,767 readings
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read without the password
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Memory Wrap: Yes
Data Format: °C, °F, °R, K, bar, mbar, PSI, inHg, mmHg, atm, Torr, Pa, kPa, MPa
Battery Life: 2 years typical (1 minute reading rate)
Battery Type: 3.6V high-temperature lithium battery included; user replaceable
Time Accuracy: ±1 min/month @ 25°C
Extended Operation: ±20 mins/month at 140°C
Computer Interface: OM-CP-IFC400 USB docking station or OM-CP-IFC406 multiplexer interface required; 125,000 baud
Software: WINOOWs® XP SP3/Vista/7 and 8 (32- and 64-bit)
Operating Environment: -20 to 140°C (-4 to 284°F), 0 to 100% RH, 0.002 to 100 PSIA
Dimensions:
OM-CP-PRTEMP140-LVL (Flush Top): 50.2 L x 24.6 mm dia (1.98 x 0.97")
OM-CP-PRTEMP140-NPT (NPT Top): 58.2 L x 24.6 mm dia (2.3 x 0.97")
Weight:
OM-CP-PRTEMP140-LVL (Flush Top): 90 g (3.2 oz)
OM-CP-PRTEMP140-NPT (NPT Top): 100 g (3.5 oz)
Material: 316 stainless steel
IP Rating: IP68

产品编号 产品描述


OM-CP-PRTEMP140-LVL High temperature and pressure data logger, flush top

OM-CP-PRTEMP140-LVL-CERT High temperature and pressure data logger, flush top, and NIST calibration certificate

OM-CP-PRTEMP140-NPT High temperature and pressure data logger (1/8 NPT pressure port)

OM-CP-PRTEMP140-NPT-CERT High temperature and pressure data logger (1/8 NPT pressure port) and NIST calibration certificate

Accessories

OM-CP-PR140-LUERFITTING 1/8 NPT to female luer lock adaptor

OM-CP-IFC400 Docking station (for single data logger) with USB cable, software and manual

OM-CP-IFC406 Multiplexer data logger interface (accepts up to 6 data loggers) with USB cable, software and manual

OM-CP-BAT110 Replacement 3.6V high temperature lithium battery

OM-CP-SVP-SYSTEM FDA 21 CFR Part 11 compliant IQ/OQ/PQ secure software validation workbook and software package (unlimited users, license per computer)



产品编号 产品描述


OM-CP-PRTEMP140-LVL
OM-CP-PRTEMP140-LVL-CERT
OM-CP-PRTEMP140-NPT
OM-CP-PRTEMP140-NPT-CERT
Accessories

OM-CP-PR140-LUERFITTING
OM-CP-IFC400
OM-CP-IFC406
OM-CP-BAT110
OM-CP-SVP-SYSTEM

OM-CP-PRTEMP140-LVL
OM-CP-PRTEMP140-LVL-CERT
OM-CP-PRTEMP140-NPT
OM-CP-PRTEMP140-NPT-CERT

OM-CP-PR140-LUERFITTING
