OM-CP-WATERBOX101A详细介绍

OM-CP-WATERBOX101A

数据采集 ? ? OM-CP-PROCESS101A Series

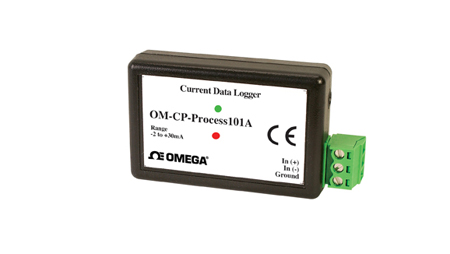

直流电流数据记录器
OM-CP-PROCESS101A Series

10 Year Battery Life
4 Hz Reading Rate
Multiple Start/Stop Function
Ultra High Speed Download
1 Million Reading Storage Capacity
Memory Wrap
Battery Life Indicator
Optional Password Protection
Programmable High and Low Alarms
Field Upgradeable

产品描述
The OM-CP-PROCESS101A is one of our newest data loggers. It is part of a new series of low cost, state-ofthe- art data logging devices that has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.

The OM-CP-PROCESS101A is available in two ranges, 20 mA and ±160 mA. Both offer a 10 year battery life, a 1 second reading rate, a multiple start/stop function, ultrahigh speed download capability, 1 million reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. Using the OM-CP-IFC200 software, starting, stopping and downloading from the OM-CP-PROCESS101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in A, mA or μA.

The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available USB port and the easy to use WINOOWs software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in tabular format and can also be exported to a text or Microsoft Excel file for further calculations. As the leader in low power data logger technology, we continuously improve our products and develops solutions to meet ever-changing challenges. The OM-CP-PROCESS101A was designed with our customers in mind. There are free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.

Specifications
Input Connection: Removable screw terminal
Analog Conversion Time: 133 ms nominal
Frequency Rejection: 50 to 60 Hz
Temperature Coefficient: lt; ±50 ppm/oC typical
Reading Rate: 4 Hz to 1 reading every 24 hours
Memory: 1,000,000 readings; software configurable memory wrap 333,000 readings in multiple start/stop mode
Wrap Around: Yes
Start Modes:
? Immediate start
? Delay start up to 18 months
? Multiple pushbut start/stop
Multiple Start/Stop Mode: Start and stop the device multiple times without having to download data or communicate with a PC
Multiple Start/Stop Mode Activation:
To Start the Device:
Press and hold the pushbut for 5 seconds. The device has started logging.
To Stop the Device:
Press and hold the pushbut for 5 seconds, the red LED will flash for three seconds and then the green LED will flash for two seconds. The device has stopped logging
Real Time Recording: The device may be used with PC to monitor and record data in real-time
Alarm: Programmable high and low limits; alarm is activated when current reaches or exceeds set limits
LED Functionality:
Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode
Red LED Blinks: 10 second rate to indicate low battery and/or full memory
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.
Engineering Units: Native measurement units can be scaled to display measurement units of another type. This is useful when monitoring voltage outputs from different types of sensors such as temperature, CO, flow rate and more
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery (included); user replaceable
Battery Life: 10 year battery life typical, at a 15 minute reading rate
Data Format: Date and time stamped current, engineering units specified through software
Time Accuracy: ±1 minute/month (stand alone data logging)
Computer Interface: USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions:
Data Logger: 36 H x 56 W x 16 mm D (1.4 x 2.2 x 0.6")
Waterbox Enclosure: 74 H x 148 W x 39 mm D (2.9 x 5.8 x 1.5")
Weight: 24 g (0.9 oz)
Materials:
Data Logger: ABS Plastic
Waterbox Enclosure: Black anodized aluminum

产品编号 产品描述


OM-CP-PROCESS101A-20MA DC current data logger, ±20 mA range

OM-CP-PROCESS101A-20MA-CERT DC current data logger, ±20 mA range and NIST calibration certificate

OM-CP-PROCESS101A-160MA DC current data logger, ±160 mA range

OM-CP-PROCESS101A-160MA-CERT DC current data logger, ±160 mA range and NIST calibration certificate

OM-CP-PROCESS101A-3A DC current data logger, ±3A range

OM-CP-PROCESS101A-3A-CERT DC current data logger, ±3A range and NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 1.8 m (6') USB interface cable

OM-CP-BAT105 Replacement 3.6V lithium battery

OM-CP-CONNECTOR-3 Replacement 3 POSTTTION terminal block for data logger

OM-CP-WATERBOX101A Weatherproof enclosure for data logger

OM-CP-WATERBOX101A-KIT Maintenance kit for OM-CP-WATERBOX101A
