iDRN-PS-1000详细介绍

iDRN-PS-1000

数据采集 DRA-RTM-8

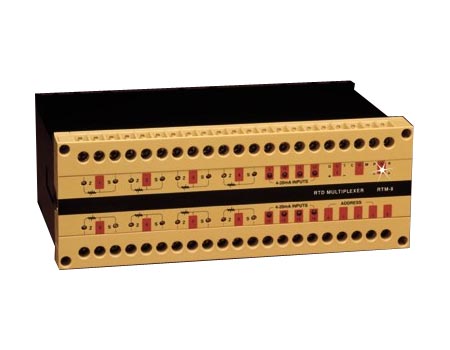

16-Channel Analog Multiplexer
DRA-RTM-8

Eight 3-Wire 100 Ohm Platinum RTD Inputs
Eight 4-20 mA Process Inputs
All 16 Inputs are Multiplexed into a Single 4-20 mA Output
100 Ohm Platinum Linearization and Lead Length Compensation for RTD Inputs

产品描述
The DRA-RTM-8 is a 16 channel analog multiplexer. Eight channels accept 3-wire 100 Ohm Pt RTD inputs, and the other eight channels accept 4-20 mA process inputs. All 16 inputs are multiplexed into a single 4-20 mA current loop output. The ion function is performed via four binary control lines generated by the host controller (PLC program). Model DRA-RTM-8 is an all solid state unit that multiplexes the input channels at a switching time of less than 20 microseconds. Each of the RTD inputs is completely signal conditioned including a 6 dip-switch array for coarse channel ranging as well as zero and span trimmers on the front panel for fine ranging. Special attention is given to the lead length compensation parameter because, unlike ordinary transmitters, the DRA-RTM-8 could be mounted relatively far from the RTD sensors. The 4-20 mA output from the DRA-RTM-8 is linearized to the RTD input. The DRA-RTM-8’s superb accuracy and simple operation make it a very attractive unit allowing tremendous cost savings by reducing the need for expensive PLC or data acquisition analog inputs.

注: Comes with complete operator’s manual.

产品编号 产品描述

DRA-RTM-8 Analog multiplexer

iDRN-PS-1000 Power supply, 95-240 Vac input, 24 Vdc @ 1A output

iDRN-PS-1000
