RH32-SW2详细介绍

RH32-SW2

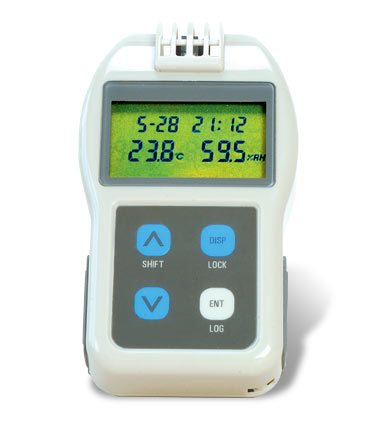

袖珍温度/湿度数据记录器
RH32
袖珍温度/湿度数据记录器

±2%相对湿度精度
记录多达8000个读数（温度和湿度）
三种类型的传感器：内置，探针式小型的传感器
传感器的互换
小/值和平均值
高、低报
可选的软件
RS232C或RS485通信标准
读取湿度和露点温度
可靠的和准确的Rh32系列温度/相对湿度计测量和显示温度从10到50°C（14至122°F）和湿度RH从0-100%。它具有数据记录来存储多达8000个读数的温度和湿度到内存。

数据可以存储自动或手动从每分钟一次，一次在一个指定的时间内进入日历时间一小时（月/日/小时/分钟）。
三种类型的传感器是可用的。一个内置的传感器，一个小的的传感器和探针式传感器。该模型是一种类型的传感器，当购买，但所有传感器插头插入单元和易于互换没有专门的校准。
RS232C通信接口以及对测量数据的分析可选软件。该软件允许数据到计算机容易转移可以在实时或存储在存储器中的数据。一个趋势图可以显示在计算机屏幕上。数据可以被导出到电子表格。
的RS485通信允许多达30个单位被连接到实时温度/湿度测量的应用计算机。

规格
Relative Humidity:
Sensor: Capacitance type
Measuring Range: 0 to 100% RH
Accuracy Rating: 2% RH (0 to 90% RH and 25°C [76°F]), ±3% RH (90 to 95% RH and 25°C [76°F])
Temperature Coefficient: ±0.1% RH/°C (5 to 80°C [41 to 176°F])
Response Time: Within 15 seconds (90% response, 25°C constant, under 0.1 m/s ventilation)

Temperature
Sensor: Semiconductor type temperature sensor
Measuring Range: RH32B: -10 to 50°C (14 to 122°F), RH32S amp; RH32P: -40 to 80°C (-40 to 176°F)
Accuracy: ±0.5°C from 0 to 50°C, ±1°C below 0°C or above 50°C
Sensor Interchangeability: Interchangeable by plug-in. For probe type and separate type, interchangeable including cable

Power Supply: 2 AA batteries included or 100 to 240 Vac with optional AC adaptor

Display
Current Data: Month, day, hour, minute. Temperature reading (°C or °F).
Relative humidity or dew-point temperature reading (°C or °F)

注释:Software, cable, and ac power adaptor sold separately.

产品型号/产品描述
RH32B-C2 Temperature/Humidity Handheld with built-in sensor and RS232C communications

RH32B-C4 Temperature/Humidity Handheld with built-in sensor and RS485 communications

RH32S-C2 Temperature/Humidity Handheld with miniature separate sensor and RS232C communications

RH32S-C4 Temperature/Humidity Handheld with miniature separate sensor and RS485 communications

RH32P-C2 Temperature/Humidity Handheld with probe type sensor and RS232C communications

RH32P-C4 Temperature/Humidity Handheld with probe type sensor and RS485 communications


选配件

CAL-3-HU NIST Traceable Calibration

RH32B-RP Plug in replacement built in sensor

RH32S-RP Plug in replacement miniature separate sensor

RH32P-RP Plug in replacement probe type sensor

RH32-SW1 Software, single point RS232C, download and real time

RH32-SW2 Software, multi point RS485, for real time only

RH32-AC110 AC power adaptor(recommended when using RS485)

RH32-S2-CABLE 2 m (7') RS-232C cable

RH32-S4-CABLE 2 m (7') RS-485 Cable

RH32-SW2
