OM-CP-VOLT101A-30V详细介绍

OM-CP-VOLT101A-30V

电压数据记录器，NOMAD系列成员
OM-CP-VOLT101A

5年保修 新产品! CE
电压数据记录器，NOMAD系列成员

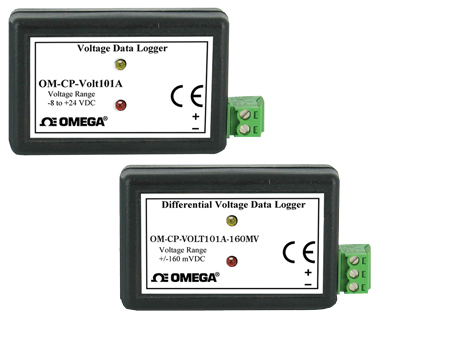

OM-CP-VOLT101A:电压数据记录器，NOMAD系列成员
OM-CP-VOLT101A-2.5V
4 Hz Reading Rate
Multiple Start/Stop Function
Programmable Engineering Units
Large Data Storage 1,000,000 Readings
10-Year Battery Life
LED Alarming
High Speed Download Capability


Voltage is one of the most fundamental and useful types of measurement performed today. Many scientific instruments and sensors provide a voltage output that represents the magnitude of some parameter being measured such as temperature, pH, flow rate, pressure, strain, etc.

The OM-CP-VOLT101A provides a low cost solution for adding recording capability to an already existing measurement system. Its high accuracy and 16-bit resolution place this product at the forefront for low level DC voltage recording devices. This device is ideal for accurately measuring and recording battery voltages, sensor output signals, photovoltaic studies, as well as many other low level DC voltage sources. With user programmable engineering units, the user can scale the input voltage to most any type of unit desired automatically. This is a unique and very useful feature for presentations.

The OM-CP-VOLT101A is available in four different input ranges: 160 mV, 2.5V, 15V and 30V versions. Data retrieval is simple. Plug the device into an available COM port and our easy-to-use software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel file.

Specifications
Input Connection: Removable screw terminal
Specified Accuracy Range: Nominal range @ 25°C
Analog Conversion Time: 133 mS
Frequency Rejection: 50/60 Hz
Alarm: User able high and low limits; blinking LED for alarm and low battery
Start Modes: Software programmable immediate start, delay start up to 18 months in advance, multiple start/stop mode
Multiple Start/Stop Mode: Start and stop the device multiple times without having to download data or communicate with a PC
Multiple Start/Stop Mode Activation:
To Start Device: Press and hold the pushbut and the green LED will flash twice a second. After three seconds, the green will flash rapidly for two seconds; the device has started logging.
To Stop Device: Press and hold the pushbut and the red LED will flash twice a second;
after three seconds, red will flash rapidly for two seconds; the device has stopped logging
Memory: 1,000,000 readings; software configurable memory wrap; 330,000 readings in enhanced start/stop mode
Wrap Around: Yes
Reading Rate: 4 readings a second (4 hz) to 1 reading every 24 hours
LED Functionality:
Green LED Blinks: 10 seconds to indicate logging 15 seconds to indicate delay start mode
Red LED Blinks: 10 seconds to indicate low battery and/or memory 1 second to indicate an alarm condition
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Real Time Recording: May be used with PC to monitor and record data in real time
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery (included) user replaceable
Battery Life: 10 years typical at a 15 minute reading rate
Data Format: Date and time stamped V, mV, V, engineering units specified through software
Time Accuracy: ±1 minute/month (at 20oC, stand alone logging)
Computer Interface: USB (interface cable required); 115,200 baud
Software: WIN XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions:
Data Logger: 36 H x 56 W x 16 mm D (1.4 x 2.2 x 0.6")
Waterbox Enclosure: 74 H x 148 W x 39 mm D (2.9 x 5.8 x 1.5")
Weight: 24 g (0.9 oz)
Materials:
Data Logger: ABS Plastic
Waterbox Enclosure: Black anodized aluminum

产品型号 产品描述

OM-CP-VOLT101A-2.5V Voltage data logger, -3 to 3 Vdc range

OM-CP-VOLT101A-2.5V-CERT Voltage data logger, -3 to 3 Vdc with NIST calibration certificate

OM-CP-VOLT101A-15V Voltage data logger, -8 to 24 Vdc range

OM-CP-VOLT101A-15V-CERT Voltage data logger, -8 to 24 Vdc with NIST calibration certificate

OM-CP-VOLT101A-30V Voltage data logger, -8 to 32 Vdc range

OM-CP-VOLT101A-30V-CERT Voltage data logger, -8 to 32 Vdc with NIST calibration certificate

OM-CP-VOLT101A-160MV Voltage data logger, ±160 mV range range

OM-CP-VOLT101A-160MV-CERT Voltage data logger, ±160 mV with NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT105 Replacement 3.6V lithium battery
