OM-CP-ULTRASHOCK-100-CERT

Humidity, Temperature, Pressure and Tri-Axial Shock Data Logger Part of the NOMAD Family
OM-CP-ULTRASHOCK

5年保修 CE

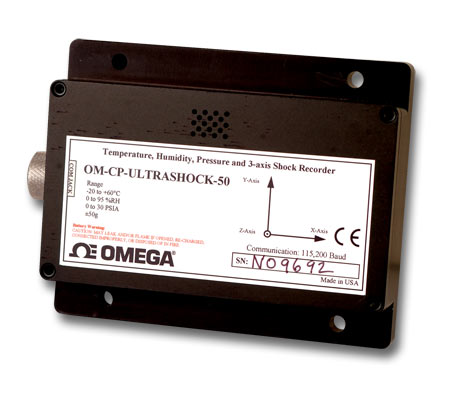

OM-CP-ULTRASHOCK:Humidity, Temperature, Pressure and Tri-Axial Shock Data Logger
Part of the NOMAD Family

OM-CP-ULTRASHOCK-50
内置的加速度计
包罗万象的设计
紧凑的
可编程的开始时间
高速下载
实时操作
可重复使用的
用户友好的
该OM-CP-ULTRASHOCK是电池供电的，的温度，压力，湿度和三轴冲击记录仪。
该OM-CP-ULTRASHOCK测量和记录温度，在选择阅读率的压力和湿度，而冲击记录的峰值加速度水平在相同的时间间隔。
该OM-CP-ULTRASHOCK是专门设计用于记录如移动车辆，卡车，集装箱，船舶动态的环境中，等。本装置还宝贵的特征如精密电子，集成电路制造生产和装配线的环境中，通信和计算机组成。
这个紧凑的，便携式，易于使用的设备，将测量和记录多达174762个通道测量。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。该设备可以启动和停止直接从您的计算机和它的小尺寸使得它几乎可以满足任何地方。该OM-CP-ULTRASHOCK使得数据检索快捷方便。只需插入一个空的COM或USB端口和用户友好的软件做休息。

规格：
Accelerometer Type: MEMS semiconductor
Temperature
Sensor: Semiconductor
Range: -20 to 60°C (-4 to 140°F)
Resolution: 0.1°C
Accuracy: ±0.5°C (0 to 50°C)
Humidity
Sensor: Capacitive Polymer
Range: 0 to 95% RH
Accuracy: ±3% RH (±2% RH typical at 25°C)
Resolution: 0.1% RH
Specified Accuracy Range: 10 to 40°C (10 to 80% RH)
Pressure
Sensor: Semiconductor strain gage
Accuracy: ±1.0% FSR at 25°C; ±0.2% typical
Resolution: 0.002 psia
Range: 0 to 30 psia
Sampling Rate: 1.953 ms/512 Hz
Frequency Response: 0 to approx. 400 Hz
Recording Interval: 64 Hz to 5 minutes for shock, software able; temperature, pressure amp; RH sampled approx every 2 sec at intervals lt;2 sec, otherwise sampled at reading rate
Memory: 174,762 readings per channel
Data Format: Date and time stamped gravities (3-axis), temperature (°C, °F, K, °R); %RH, mg/ml water vapor concentration; pressure (psia, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa, altitude
Real Time Recording: Device can be used with PC to monitor and record instantaneous measurements in real-time
Start Modes: Software programmable immediate start or delay start up to 180 days in advance
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 9 V lithium or alkaline battery (included), user replaceable
Battery Life: 7 days typical with lithium battery
Data Format: Date and time stamped; gravities (g and mg), temperature (°C, °F, K, °R), humidity
(%RH, mg/ml water vapor concentration), pressure (psia, inHg, mm Hg, bar, atm, torr, Pa, kPa, MPa)
Time Accuracy: ± 1 minute per month at 20 to 30°C
Computer Interface: USB or serial interface (cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -20 to 60°C (-4 to 140°F), 0 to 95% RH, non-condensing
Dimensions: 89 H x 111 W x 26 mm D (3.5 x 4.4 x 1.0")
Weight: 341 g (12 oz)
Material: Anodized aluminum

产品型号 产品描述

OM-CP-ULTRASHOCK-5 Tri-axial shock datalogger, ±5 g

OM-CP-ULTRASHOCK-5-CERT Tri-axial shock datalogger, ±5 g, with NIST traceable calibration certificate

OM-CP-ULTRASHOCK-50 Tri-axial shock datalogger, ±50 g

OM-CP-ULTRASHOCK-50-CERT Tri-axial shock datalogger, ±50 g, with NIST traceable calibration certificate

OM-CP-ULTRASHOCK-100 Tri-axial shock datalogger, ±100 g

OM-CP-ULTRASHOCK-100-CERT Tri-axial shock datalogger, ±100 g, with NIST traceable calibration certificate

OM-CP-ULTRASHOCK-250 Tri-axial shock datalogger, ±250 g

OM-CP-ULTRASHOCK-250-CERT Tri-axial shock datalogger, ±250 g, with NIST calibration certificate


Software and Accessories

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT103 Replacement 9 V lithium battery

OM-CP-SHOCK-MAG-KIT Magnet mount kit for tri-axial shock data loggers
