OM-CP-SHOCK101-250-EB详细介绍

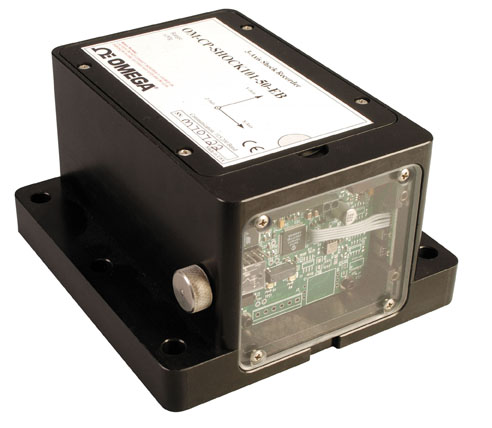

OM-CP-SHOCK101-250-EB

Tri-Axial Shock Data Logger with Extended Battery Life
OM-CP-SHOCK101 Series
5年保修 CE
冲击记录器的三轴nomadfamily part of the
OM - CP - shock101冲击：三轴数据记录仪，
OM - CP shock101 - 5 -
建立在accelerometers
动态和静态加速度措施
实时操作
可编程启动时间
紧凑型
reuseable
shock101 is the OM - CP -电池供电，的3轴冲击，冲击的措施和数据记录器记录的水平。这些紧凑型经济建立在accelerometers units have to measure的动态和静态加速度，和may be used in a wide applications of品种，包括议会的脆弱性测试，在线监测，其他机械降试验与监测。
OM shock101 CP水平峰值加速度记录过intervals自定义阅读软件，可选择的速率与从5 minutes to every 64秒。the sample rate is 1.953 MS / 512赫兹。
shock101 OM - CP -可以对测量轴up to hold amp;amp;万人，他们在非挥发性固态存储器，甚至when the battery is discharged。数据检索是快速和简单的易插到USB端口COM或。the OM - CP—IFC软件显示屏使用方便的日期在你安知道图的分析你的数据，你可以快。在各种powerful tools of examine allow你看日期，出口和打印专业只是点击鼠标与of the。

规格：
Channels: Shock (3 axes)
Sample Rate: 1.953ms/512Hz
Reading Interval: 64Hz to 5min
Memory: 349,525 readings per axis, for a total of 1,398,100 readings
Start Time: Software programmable start time and date, up to 180 days in advance
Status Indicators:
Red: Blinks to indicate sleep mode
Red amp; Green: Blinks to indicate delay start
Green: Blinks to indicate taking samples (blinks at sample rate)
Password Protection: An optional password may be
programmed into the device to restrict access to configuration
options. Data may be downloaded without the password
Real Time Recording: Record instantaneous acceleration in
real time (1 second or slower reading rate)
Calibration: Digital calibration through software
Calibration Date:Automatically recorded within device
Power: 6 D-cell alkaline batteries included, user replaceable
Replaceable Battery: 60 days typical @25°C, 1 minute reading rate
Data Format: Date and time stamped gravities (g and mg)
Time Accuracy: ±1 minute/month (at 20°C, RS232 port not in use)
Computer Interface: PC serial or USB (interface
cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment:
-20 to 54°C, (-4 to 129°F) 0 to 95% RH non-condensing
Dimensions: 5.5 x 5.4 x 3.2"
(140 mm x 137 mm x 80 mm)
Weight: 2.3 kg (5 lbs)
Materials: Anodized aluminum

产品型号 产品描述

OM-CP-SHOCK101-5-EB Tri-axial shock data logger, ±5 g, extended battery life

OM-CP-SHOCK101-5-EB-CERT Tri-axial shock data logger, ±5 g, extended battery life with NIST calibration certificate

OM-CP-SHOCK101-50-EB Tri-axial shock data logger, ±50 g, extended battery life

OM-CP-SHOCK101-50-EB-CERT Tri-axial shock data logger, ±50 g, extended battery life with NIST calibration certificate

OM-CP-SHOCK101-100-EB Tri-axial shock data logger, ±100 g, extended battery life

OM-CP-SHOCK101-100-EB-CERT Tri-axial shock data logger, ±100 g, extended battery life with NIST calibration certificate

OM-CP-SHOCK101-250-EB Tri-axial shock data logger, ±250 g, extended battery life

OM-CP-SHOCK101-250-EB-CERT Tri-axial shock data logger, ±250 g, extended battery life with NIST calibration certificate

OM-CP-SHOCK101-100-EB Tri-axial shock data logger, ±100 g, extended battery life

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

MN1300 Replacement 1.5V D cell alkaline battery for extended battery life

OM-CP-SHOCK101-250-EB
