OM-CP-SHOCK101-100详细介绍

OM-CP-SHOCK101-100

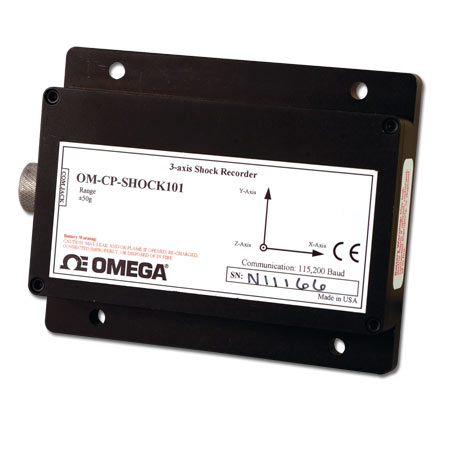

Tri-Axial Shock Data Logger, Part of the NOMAD Family
OM-CP-SHOCK101
5年保修 CE
冲击记录器的三轴nomadfamily part of the
OM - CP - shock101冲击：三轴数据记录仪，
家庭nomadpart of the
OM - CP shock101 - 5 -
建立在accelerometers
动态和静态加速度措施
实时操作
可编程启动时间
紧凑型
reuseable
shock101 is the OM - CP -电池供电，的3轴冲击，冲击的措施和数据记录器记录的水平。这些紧凑型经济建立在accelerometers units have to measure的动态和静态加速度，和may be used in a wide applications of品种，包括议会的脆弱性测试，在线监测，其他机械降试验与监测。
OM -茶-茶shock101 CP水平峰值加速度记录过intervals自定义阅读软件，可选择的速率与从5 minutes to every 64秒。the sample rate is 1.953 MS / 512赫兹。
茶叶店shock101 OM - CP -可以对测量轴up to hold amp;amp;万人，他们在非挥发性固态存储器，甚至when the battery is discharged。数据检索是快速和简单的易插到USB端口COM或。the OM - CP—IFC软件显示屏使用方便的日期在你安知道图的分析你的数据，你可以快。在各种powerful tools of examine allow你看日期，出口和打印专业只是点击鼠标与of the。

规格：
Accelerometer Type: MEMS semiconductor
Sampling Rate: 1.953 ms/512 Hz
Frequency Response: 0 to approx. 400 Hz
Recording Interval: 64 Hz to 5 minutes for shock, software able
Memory: 349,525 readings per axis (1,398,100 total readings)
Real Time Recording: May be used with PC to monitor and record instantaneous acceleration in real time (1 sec or slower reading rate, not possible during logging)
Start Modes: Software programmable immediate start or delay start up to 180 days in advance
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 9 V lithium or alkaline battery (included), user replaceable
Battery Life: 7 days typical with lithium battery
Data Format: Date and time stamped gravities (3-axis)
Time Accuracy: ±1 minute per month at 20 to 30°C
Computer Interface: USB or serial interface (cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -20 to 60°C (-4 to 140°F), 0 to 95% RH, non-condensing
Dimensions: 89 H x 112 W x 26 mm D (3.5 x 4.4 x 1.0")
Weight: 340 g (12 oz)
Material: Anodized aluminum

产品型号 产品描述

OM-CP-SHOCK101-5 Tri-axial shock datalogger, ±5g range

OM-CP-SHOCK101-50 Tri-axial shock datalogger, ±50g range

OM-CP-SHOCK101-100 Tri-axial shock datalogger, ±100g range

OM-CP-SHOCK101-250 Tri-axial shock datalogger, ±250g range


选配件

OM-CP-IFC110 WINOOWs software and 1.2 m (4') RS-232 cable with DB9F termination

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT103 Replacement 9 V lithium battery

OM-CP-SHOCK-MAG-KIT Magnet mount kit for tri-axial shock data loggers
