OM-CP-RHTEMP101A-CERT详细介绍

OM-CP-RHTEMP101A-CERT

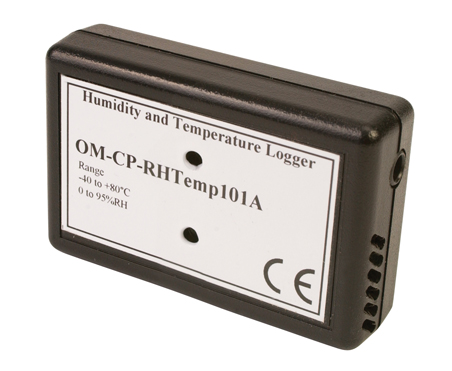

Humidity and Temperature Data Logger, Part of the NOMAD Family
OM-CP-RHTEMP101A

5年保修 新产品! CE
湿度和温度数据记录仪
om-cp-rhtemp101a：湿度和温度数据记录仪，OM家庭的一部分
om-cp-rhtemp101a
1秒的阅读率
多启动/停止功能
超高速下载
内存：1000000个读数
电池寿命指标
可选的密码保护
可编程的高、低报
该om-cp-rhtemp101a是一种新的低成本系列的一部分，现状数据记录装置。该om-cp-rhtemp101a提供10年的电池寿命，一个1秒的阅读率，多重启动/停止功能，超高速下载能力，阅读，存储容量的500000，选择性记忆包，精密电阻传感元件，电池寿命指标，可选密码保护，可编程高报和更多。
使用该软件，启动，停止和从om-cp-rhtemp101a下载是简单和容易的。图形，表格和汇总数据，提供分析和数据可以在°C，F°视，K，
°R，%RH，毫克/毫升的水蒸汽浓度和露点。数据也可以自动导出到Excel进一步的计算。
该om-cp-rhtemp101a大跨越，在尺寸和性能。实时时钟确保所有数据的时间和日期戳。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。它的小尺寸使得它几乎可以满足任何地方。数据检索是简单的。插入一个USB端口，可以使用WINOOWs软件的易做休息。该软件将你的电脑变成一个真正的时间的长条图表记录仪。数据可以打印表格的格式，也可以导出到一个文本或微软Excel文件。
该om-cp-rhtemp101a设计与我们的客户在心里。有免费的固件升级为产品的生命，数据记录器已经部署在现场可以与新技术的发展，成长。单位不需要返回到升级的工厂。用户可以自动地从任何一台PC。

规格:
Temperature Sensor: Precision RTD Element
Temperature Range: -40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.01°C (0.018°F)
Calibrated Accuracy: ±0.5°C (0.9°F)
Humidity Sensor: Internal semi-conductor
Humidity Range: 0 to 95% RH
Humidity Resolution: 0.1% RH
Calibrated Accuracy: ±3.0% RH, ±2% RH typical @ 25°C (77°F)
Specified Accuracy Range: 10 to 40oC (50 to 104oF); 10 to 80% RH
Reading Rate: 1 reading every second to 1 every 24 hours
Memory: 1,000,000 readings; software configurable memory wrap; 500,000 readings
in multiple start/stop mode
Memory Wrap Around: Yes (software able)
Start Modes:
Immediate start
Delay start up to 18 months
Multiple pushbut start/stop
Stop Modes:
Manual through software
Timed (specific date and time)
Multiple Start/Stop Mode: Start and stop the device multiple times without having
to download data or communicate with a PC
Multiple Start/Stop Mode Activation:
To Start the Device: Press and hold the pushbut for 5 seconds,
the green light will flash during this time. The device has started logging.
To Stop the Device:
Press and hold the pushbut for 5 seconds, the red light will flash during this time.
The device has stopped logging.
Real Time Recording: The device may be used with PC to monitor and record data in real-time
Alarm: Programmable high and low limits; alarm is activated when humidity reaches or exceeds set limits
LED Functionality:
Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode
Red LED Blinks: 10 second rate to indicate low battery and/or full memory; 1 second rate to indicate an alarm condition
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6V lithium battery included; user replaceable
Battery Life: 10 years typical, dependent upon frequency and duty cycle
Data Format: Date and time stamped oC, oF, K, oR; %RH, mg/ml water vapor concentration, dew point
Time Accuracy: ±1 minute/month at 20oC (68oF), stand alone data logging
Computer Interface: USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -40 to 80oC (-40 to 176oF), 0 to 95% RH non-condensing
Dimensions: 36 L x 56 W x 16 mm D (1.4 x 2.2 x 0.6")
Weight: 24 g (0.9 oz)
Material: ABS plastic

产品型号 产品描述

OM-CP-RHTEMP101A Humidity and temperature data logger

OM-CP-RHTEMP101A-CERT Humidity and temperature data logger and NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT105 Replacement 3.6V lithium battery
