OM-CP-RHTEMP1000-SS-CERT详细介绍

OM-CP-RHTEMP1000-SS-CERT

湿度和温度数据记录器，NOMAD系列成员
OM-CP-RHTEMP1000
5年保修 CE
湿度和温度数据记录器，NOMAD系列成员
OM-CP-RHTEMP1000:湿度和温度数据记录器，NOMAD系列成员

OM-CP-RHTEMP1000
实时操作
通过软件用户校准
露点/蒸气浓度的计算
在软件

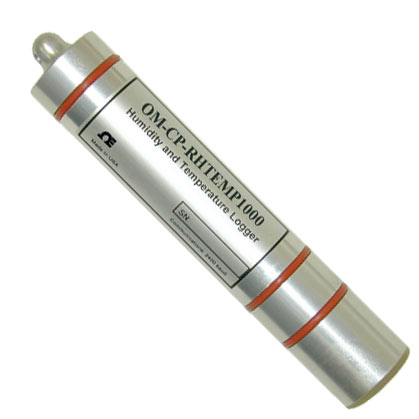

这OM-CP-RHTEMP1000湿度和温度数据记录仪是一种防水（温度测量），电池供电，的装置，用于自动记录温度从40到80°C.这个一体化的紧凑，便携，易于使用的设备可以测量并记录温度高达10920和10920的湿度测量。提出的OM-CP-RHTEMP1000在尺寸和性能的重大飞跃。实时时钟确保所有数据的时间和日期戳。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。它的小尺寸使得它几乎可以满足任何地方。数据检索是简单的。插入一个空的COM端口和使用WINOOWs软件的易做休息。该软件将你的电脑变成一个真正的时间的长条图表记录仪。数据可以打印表格的格式，也可以导出到一个文本或微软Excel文件。

规格：
TEMPERATURE CHANNEL PERFORMANCE
Temperature Sensor:Semiconductor
Temperature Measurement Range:
-40 to 80°C (-40 to 176°F)1
Temperature Resolution: 0.1°C
Calibrated Accuracy: +0.5°C
Specified Accuracy Range: 0 to 50°C

HUMIDITY CHANNEL PERFORMANCE
Humidity Sensor: Solid state semiconductor 4,5
Humidity Measurement Range: 0 to 100% RH
Humidity Resolution: 0.5% RH
Calibrated Accuracy:
+3%RH (+2 %RH typical at 25°C)
Specified Accuracy Range:
10 to 80% RH; 10 to 40°C (50 to 104°F)2,3
Humdiity Response Time:
90% of change in 60 seconds in slow moving air

General Specifications
Readings: 21,845 readings/channel Temperature/Humidity
Calibration: Digital calibration is available through software
Calibration Date: Automatically recorded within device
Recording Interval: 30/minute to day able through software
Start Time: start time and date are programmable
through software, up to 6 months in advance
Real Time Recording: Device may be used with PC
to monitor and record data in real time
Power: 3.6 V lithium battery included
Time Accuracy: ±1 minute per month at 20°C, RS-232 port not in use
Data Format: Date and time stamped,
°C, °F, °K, °R %RH, mg of water vapor concentration,
Weight:
Aluminum: 145 g (5 oz)
Stainless steel: 285 g (10 oz)
Computer Interface: PC serial, RS-232C COM
or USB (interface cable required)
Software: XP SP3/Vista and 7 (32-bit and 64-bit)
Operating Environment:
-40 to 80°C (-40 to 176°F)
0 to 100% RH non-condensing when case is properly sealed
Dimensions:
25 mm dia x 137 mm L
(1.00 x 5.40")
Material: aluminum or stainless steel

OM-CP-RHTEMP1000-SS-CERT
