OM-CP-QUADVOLT-30V-CERT详细介绍

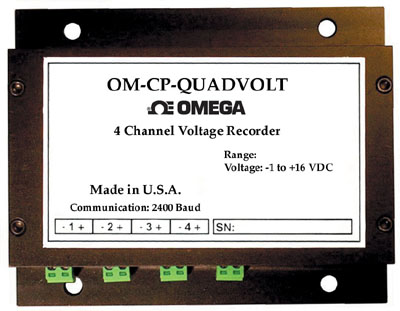

OM-CP-QUADVOLT-30V-CERT

4通道电压数据记录器
NOMAD系列成员
OM-CP-QUADVOLT

5年保修 CE
4通道电压数据记录器
NOMAD系列成员
OM-CP-QUADVOLT:4通道电压数据记录器lt;brgt;NOMAD系列成员

om-cp-quadvolt
16位分辨率
可编程的工程单位，尺度因子和偏差值
记忆环绕
小尺寸
通过软件用户校准
实时操作
该om-cp-quadvolt是低成本，高分辨率，电池供电，的电压输入数据记录等。此外，该om-cp-quadvolt允许用户存储用户定义的单位工程进入设备以及尺度因子和偏差值。这使用户能够轻松地线性化和规模的任何传感器，提供了一种电压对任何用户所需的单位会自动。这所有功能于一身的紧凑，便携，易于使用的设备可以测量并记录多达32768个通道测量电压。
提出的om-cp-quadvolt在尺寸和性能的重大飞跃。实时时钟确保所有数据的时间和日期戳。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。它的小尺寸使得它几乎可以满足任何地方。数据检索是简单的。插入一个空的COM端口和易于使用的软件是否休息。该软件将你的电脑变成一个真正的时间的长条图表记录仪。数据可以打印图形或表格的格式，可以导出到一个文本或微软Excel文件。、

规格
Input Channels: 4
Memory: 32,768 readings/channel
Input Connection: Removable screw terminal
Input Impedance: gt;10 KΩ
ADC Resolution: 16 bits
Voltage Calibration: Digital calibration is available in software
Calibration Date: Automatically recorded within device to alert user when calibration is required
Recording Interval: 1 second to 12 hours able in software
Start Time: Start time and date are programmable through software
Memory Wrap Around: able in software
Real Time Recording: Device may be used with PC to monitor and record data in real time
Power: 9 V lithium battery included; 120 Vac power optional
Battery Life: 1 year typical
Time Accuracy: ±1 minute per month at 20°C
Data Format: Date and time stamped, μV, mV, V
and other engineering units programmable through software
Computer Interface: PC serial, RS-232C COM or USB (interface cable required)
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F) 5 to 95% RH non-condensing
Dimensions: 26 H x 111 W x 89 mm D (1.0 x 4.4 x 3.5")
Weight: 370 g (13 oz)
Material: Black anodized aluminum

产品型号 产品描述

OM-CP-QUADVOLT 4 channel voltage datalogger, 15 V input range

OM-CP-QUADVOLT-CERT 4 channel voltage datalogger, 15 V input range with NIST calibration certificate

OM-CP-QUADVOLT-100MV 4 channel voltage datalogger, ±100 mV input range

OM-CP-QUADVOLT-100MV-CERT 4 channel voltage datalogger, ±100 mV input range with NIST calibration certificate

OM-CP-QUADVOLT-2.5V 4 channel voltage datalogger, 2.5 V input range

OM-CP-QUADVOLT-2.5V-CERT 4 channel voltage datalogger, 2.5 V input range with NIST calibration certificate

OM-CP-QUADVOLT-30V 4 channel voltage datalogger, 30 V input range

OM-CP-QUADVOLT-30V-CERT 4 channel voltage datalogger, 30 V input range with NIST calibration certificate


选配件

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT103 Replacement 9 V lithium battery
