OM-CP-QUADPROCESS-25MA详细介绍

OM-CP-QUADPROCESS-25MA

4通道电流数据记录器
OM-CP-QUADPROCESS
5年保修 CE

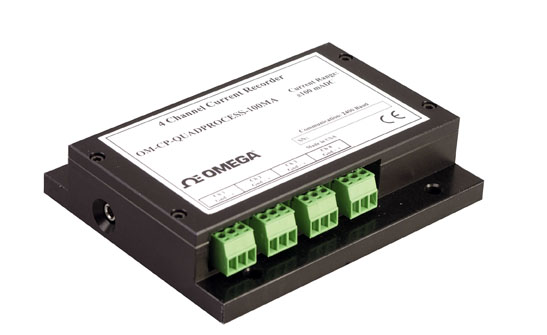

4通道电流数据记录器
OM-CP-QUADPROCESS:4通道电流数据记录器

om-cp-quadprocess-1ma
16位分辨率
可编程的工程单位，比例因子，和偏移值
记忆的概括
小尺寸
通过软件用户校准
实时操作
该om-cp-quadprocess是一种低成本，高分辨率，电池供电的数据记录仪自动记录电流之间的20和120毫安。它使用一个16位的ADC实现分辨率0.01ma。此外，该om-cp-quadprocess让用户存储预定义的单元的装置，以及规模因子和偏移值。这允许简单，自动线性化和任何流程表，处理单元提供一个模拟输出比例。这种便携式，易于使用的设备可以测量并记录多达32767个通道测量电流。
该om-cp-quadprocess代表在尺寸和性能的一大飞跃。它的小尺寸使得它几乎可以满足任何地方。实时时钟确保所有数据的时间和日期戳。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。
数据检索是简单的。塞到一个可用的COM端口的记录器和易于使用的软件是否休息。该软件将您的PC变成一个实时的长条图表记录仪。数据可以打印的图形或表格的格式。它也可以导出到一个文本或微软Excel文件。

规格：
Input Channels: 4 non-isolated inputs
Memory: 32,767 readings/channel
Input Connection: Screw terminal
ADC Resolution: 16 bits
Voltage Calibration: Digital calibration available in software
Calibration Date: Automatically recorderd within device to alert user when calibration is required
Recording Interval: 1 second to 12 hours able in software
Start Time: Start time and date programmable through software
Memory Wrap Around: able in software
Real-Time Recording: Device may be used with PC to monitor and record data in real time
Time Accuracy: ±1 minute per month at 20°C
Power: 9 V alkaline battery (included); 120 Vac power optional
Battery Life: 1 year typical
Time Accuracy: ±1 minute per month at 20°C
Data Format: Date and time stamped in μA, mA, A and other engineering
units programmable through software
Weight: 370 g (13 oz)
Computer Interface: PC serial, RS-232C COM or USB (interface cable required)
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing
Dimensions: 26 H x 111 W x 89 mm D (1.0 x 4.4 x 3.5")
Material: Black anodized aluminum

产品型号 产品描述

OM-CP-QUADPROCESS-1MA 4-channel data logger, ±1 mA range

OM-CP-QUADPROCESS-1MA-CERT 4-channel data logger, ±1 mA range with NIST calibration certificate

OM-CP-QUADPROCESS-25MA 4-channel data logger, ±25 mA range

OM-CP-QUADPROCESS-25MA-CERT 4-channel data logger, ±25 mA range with NIST calibration certificate

OM-CP-QUADPROCESS-100MA 4-channel data logger, ±100 mA range

OM-CP-QUADPROCESS-100MA-CERT 4-channel data logger, ±100 mA range with NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT103 Replacement 9 V alkaline battery

OM-CP-CONNECTOR-3 Replacement 3 POSTTTION terminal block connector
