OM-CP-PRTEMP1000IS-1-300-G详细介绍

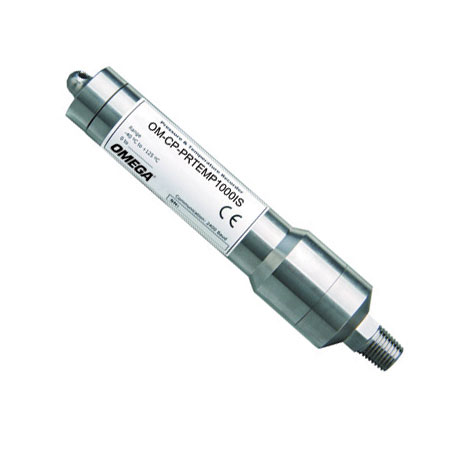

OM-CP-PRTEMP1000IS-1-300-G

本质安全坚固的压力和温度记录仪
OM-CP-PRTEMP1000IS
本质安全坚固的压力和温度记录仪
本质安全
坚固的
可编程的开始时间
实时操作
用户友好的
低成本


该om-cp-prtemp1000is是一个坚固的压力记录仪，准确地监测和用户可编程的阅读的时间间隔记录的压力和温度。本厂om-cp-prtemp1000is一直相互认证的本安型为I级，1区，A，B，C和D和I类，非易燃分2，组A，B，C和D的认证使装置适用于如空调系统，冷水，热水，空调气体充满敌意的环境，应用程序使用，油和蒸汽压力系统。内部温度传感器提供的温度测量，没有一个单独的温度记录仪的需要。记录器可以开始测量，每隔两秒，多一个阅读每十二小时。它将存储多达16383个读数在其非易失性存储器。

该om-cp-prtemp1000is采用了坚固的不锈钢压力应变的测量的压力。该装置配备了一个1 / 4“普通螺纹接头，使记录器可以适应几乎任何压力拟合。有许多不同的压力范围内适合任何应用程序。
单独出售的om-cp-ifc200，，包括WINOOWs软件和USB通讯电缆。该软件将你的电脑变成一个真正的时间的长条图表记录仪。数据可以打印图形或表格的格式，可以导出到一个文本文件或微软。

规格：
Temperature Sensor: Semiconductor
Temperature Range: -40 to 80°C
(-40 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C
Pressure Sensor: Semiconductor strain gauge
Calibrated Accuracy: 2% FSR, 0.25%
@ 25oC typical
Pressure Response Time: 0.1 ms
(10 to 90% FSR)
Repeatability: ± 0.5% FSR; ± 0.2% typical
Adaptor: 1/4 " male NPT
Start Time: Software programmable start time
and date, up to 6 months in advance
Real Time Recording: May be used with PC to monitor and record data in real time
Memory: 16,383 readings per channel
Reading Interval: 1 reading every 2 seconds,
to 1 every 12 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device

Power: 3.6 V lithium battery (included)
Battery Life: 1 year typical
Battery Shelf Life: Up to 1 year when device is not in use
Data Format: Date and time stamped °C, °F, K, °R;
PSIA(G), inches, feet, mmHg, bar, Torr, kPa
Time Accuracy: 1 minute/month at 20°C,
(RS-232 port not in use)
Computer Interface: PC serial, RS-232C COM or USB (Interface cable required); 2400 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment:
-40 to 80°C (-40 to 176°F) 0 to 100% RH
Dimensions: 32 x 163 mm
(1.25 x 6.4")
Weight: 338 g (12 oz)
Material: Stainless Steel
Approvals: FM Certified Intrinsically Safe for Class I,
Division 1 groups A, B, C and D and non-incendive
for Class I, Division 2, groups A, B, C and D.

Model No. Presssure Range Resolution
OM-CP-PRTEMP1000IS-1-30-A 0 to 30 psia 0.002 psia
OM-CP-PRTEMP1000IS-1-30-G 0 to 30 psig 0.002 psig
OM-CP-PRTEMP1000IS-1-100-A 0 to 100 psia 0.005 psia
OM-CP-PRTEMP1000IS-1-100-G 0 to 100 psig 0.005 psig
OM-CP-PRTEMP1000IS-1-300-A 0 to 300 psia 0.02 psia
OM-CP-PRTEMP1000IS-1-300-G 0 to 300 psig 0.02 psig
OM-CP-PRTEMP1000IS-1-500-A 0 to 500 psia 0.05 psia
OM-CP-PRTEMP1000IS-1-500-G 0 to 500 psig 0.05 psig
OM-CP-PRTEMP1000IS-1-1000-A 0 to 1000 psia 0.05 psia
OM-CP-PRTEMP1000IS-1-5000-A 0 to 5000 psia 0.2 psia
注释: Operator’s manual is included with the OM-CP-IFC200 WINOOWs software and USB interface cable, (required to operate the data logger and sold separately).
Contact our sales department to order a data logger with NIST calibration certificate.
Add suffix "-CERT" to model number and add $60 to price, (NIST calibration for temperature only).
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

产品型号说明
(1) (2)
OM-CP-PRTEMP1000IS-1 -

选项描述
(1) Psia or Psig Ranges
选择
30-A 代表 0 to 30 psia
30-G 代表 0 to 30 psig
100-A 代表 0 to 100 psia
100-G 代表 0 to 100 psig
300-A 代表 0 to 300 psia
300-G 代表 0 to 300 psig
500-A 代表 0 to 500 psia
500-G 代表 0 to 500 psig
1000-A 代表 0 to 1000 psia
5000-A 代表 0 to 5000 psia
(2) Calibration
选择
Nothing(leave field blank) 代表 None
-CERT 代表 NIST Calibration Certificate

产品型号/产品描述

Data Loggers with NPT Connection

OM-CP-PRTEMP1000IS-1-30-A Intrinsically safe pressure and temperature recorder, range: 0 to 30 psia, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-30-G Intrinsically safe pressure and temperature recorder, range: 0 to 30 psig, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-100-A Intrinsically safe pressure and temperature recorder, range: 0 to 100 psia, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-100-G Intrinsically safe pressure and temperature recorder, range: 0 to 100 psig, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-300-A Intrinsically safe pressure and temperature recorder, range: 0 to 300 psia, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-300-G Intrinsically safe pressure and temperature recorder, range: 0 to 300 psig, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-500-A Intrinsically safe pressure and temperature recorder, range: 0 to 500 psia, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-500-G Intrinsically safe pressure and temperature recorder, range: 0 to 500 psig, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-1000-A Intrinsically safe pressure and temperature recorder, range: 0 to 1000 psia, with 1/4 inch NPT fitting

OM-CP-PRTEMP1000IS-1-5000-A Intrinsically safe pressure and temperature recorder, range: 0 to 5000 psia, with 1/4 inch NPT fitting

Accessories

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT102 Replacement 3.6 V lithium battery
