OM-VIB-101详细介绍

OM-VIB-101

数据采集 ? ? OM-VIB-101

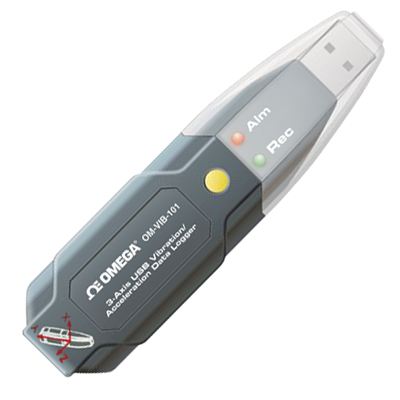

3-Axis USB Vibration/Acceleration Data Logger

Mountable Data Logger Uses Three Accelerometers to Precisely Measure Acceleration of Operating Equipment on X, Y and Z Axes
Stores up to 327,600 Data Points in Flash Memory
One But Starts/Stops Data Logging Without a PC
Plug-and-Play USB 2.0 Interface–No Need for Cables, Cradles or Docks
PC Interface/Analysis Software Can Download Recorded Data or Acquire Real-Time Data or Real-Time Frequency Data
Software is Used to Set System Clock, Operating Mode (Normal, Time-Triggered or Motion Measuring), Sampling Rate Alarm Thresholds and Axial High/Low
Powerful Analysis Modes Include Fast Fourier Transform Frequency Conversion and Time-Domain Analysis
One-Click Exporting of Tabular Data to .txt File or Graph to Printer
Red and Green LEDs Indicate Device Status (Recording, Not Recording, Low Battery, Memory Full)
Powered by High-Capacity, Long-Life, Non-Rechargeable Li-Ion Battery (Included)
Includes Mounting Pedestal with Magnets and Three Screw Holes

产品描述
The OM-VIB-101 is ideal for assessing the health and diagnosing performance problems of rotating machinery. Slight changes in the axial accelerations of a motor over time can reveal whether a motor is running efficiently and even indicate whether it may fail in the future. The OM-VIB-101 uses three components to collect and present vibration data:

1) Memory stick-sized USB data logger containing three precision accelerometers
2) Pedestal for mounting the data logger on an operating piece of equipment
3) Powerful WINOOWs®-compatible graphics application. Once the logger has been dismounted, plugging it into a computer’s USB port automatically imports hours of vibration, motion and tilt data to the application.

Specifications
Acceleration Range: -16 to 16 g
Accuracy: ±0.5 g typical
Frequency Range: 0 to 60 Hz
Data Logging Capacity: 327,600 data points in 16 MB flash memory
User-able Sampling Time: 50 ms to 24 hours
Interface: USB 2.0
Software Compatibility: WINOOWs® XP/Vista/7/8
Maximum Continuous Logging Time: 60 hours
Operating Temperature: 0 to 45°C (32 to 113°F) @ 5 to 95% RH
Power Source: 3.6V/1200 mA rechargeable lithium battery (included)
Dimensions (Including Mounting Pedestal): 113 L x 54 W x 32.5 mm D (4.45 x 2.13 x 1.28")
Weight (Without Battery): 73.5 g (2.6 oz)

产品编号 产品描述

OM-VIB-1013-axis USB vibration/acceleration data logger

OM-EL-BATTReplacement 3.6V lithium battery

======
