OME-PISO-813

数据采集 ? 插卡 ? 模拟输入和多功能卡/板 ? OME-PISO-813

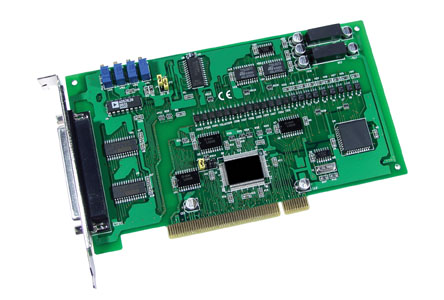

32通道端绝缘模拟输入板
OME-PISO-813

PCI Bus
12-Bit A/D
32 Single-Ended Analog Input Channels
3,000 Vdc Photo-Isolation Protection Analog Input
Analog Input Ranges: Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V Unipolar: 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V, 0 to 0.625 V
Programmable Gain Control
A/D Trigger Mode: Software Trigger
A/D Data Transfer Mode: Polling

产品描述
The OME-PISO-813 is an isolated 12-bit A/D board for the PCI bus for IBM or compatible PC. It features a 10 KHz data acquisition rate under DOS and WINOOWs. The OME-PISO-813 provides 32 single-ended analog inputs and has 3000 Vdc photo-isolation from the PC (no channel-to-channel isolation).

Software Development Kit The OME-PISO-813 is supplied with a standard software development kit for WINOOWs 98/NT/2000/XP. The software development kit includes DLL files for programming in C, C++ or other high level languages and OCX files for Visual Basic or Active X programming. DasyLab and LabView drivers are also included.

Specifications
ANALOG INPUTS
Channels: 32 single-ended
Resolution: 12-bits
Conversion Rate: 10 KS/s max
Input Impedance: 10 M
Overvoltage Protection: ± 35V
Accuracy: 0.01% of reading ±1 bit
Linearity: ±1 bit
Sample amp; Hold: on chip
Zero Drift: ± 25 ppm/°C of FS max
Power Requirements: +5 V @ 850 mA max
A/D Trigger Mode: software trigger
A/D Data Transfer Mode: polling


OME-DB-8325
GENERAL ENVIRONMENTAL
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity: 0 to 90% RH non-condensing
Dimensions: 180 L x 105 mm H (7.1 x 4.1")
Connector: 37-pin D-sub female

产品编号 产品描述
OME-PISO-813 32-channel isolated analog input board
OME-DB-8325/1 Screw terminal board with signal conditioning circuitry (includes 1 m D-sub 37-pin ribbon cable
OME-DB-8325/2 Screw terminal board with signal conditioning circuitry (includes 2 m D-sub 37-pin ribbon cable)
OME-DB-37 Direct connect 37-pin terminal board
OME-DN-37 DIN rail mount I/O connector block with 37-pin D-sub connector
