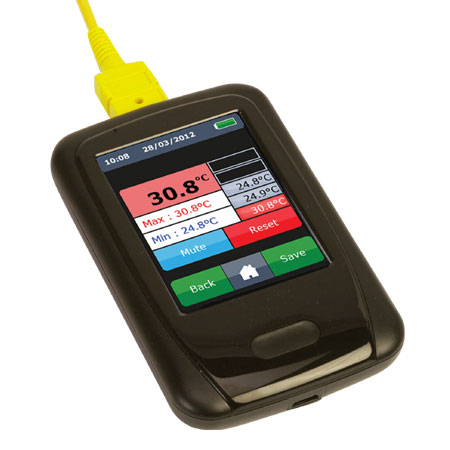

Handheld Data Logger Thermometer with Graphic Display
OM-EL-ENVIROPAD-TC

Compatible with Thermocouple Types J/K/N/T
Two Modes: Data Logging or Spot Measurement
71 mm (2.8") Color Touch Screen Display
Data Downloadable via USB Connection to PC
Internal Rechargeable Lithium Polymer Battery
Date and Time Function
High and Low Audible Alarms
Removable Protective Boot for Increased Durability (Sold Separately)

产品描述
This robust easy to use handheld device takes and records temperature readings via the attached thermocouple probe. A large touch screen, color display indicates temperature, maximum and minimum readings and will produce a graph of the data. The OM-EL-ENVIROPAD-TC has two functions-Data Logging and Spot Measurement; 1. When in Data Logging mode, the unit can be set-up and left to take temperature readings at pre-determined intervals for a desired length of time. All readings are saved to a file with a date and time stamp in CSV format for up to 65,536 readings. 2. When in Spot Measurement mode the unit can be used as a thermometer to capture one-off temperature readings displayed on screen. This can be repeated for up to 65,536 readings per file. This data can then be downloaded to PC via a USB connection and opened with Microsoft Excel® or our EasyLog software which is available for free from omega.com. The unit is compatible with any J, K, N and T Type thermocouple probes. The protective boot can be removed for cleaning.

Specifications
Temperature Measurement Range:
Type J: -100 to 1190°C (-148 to 2174°F)
Type K: -100 to 1350°C (-148 to 2462°F)
Type T: -100 to 390°C (-148 to 734°F)
Type N: -100 to 1300°C (-148 to 2372°F)
Resolution: 0.1°C (0.1°F)
Accuracy: ±(0.2°C + 0.1% rdg)
Thermocouple Connection: Female subminiature thermocouple connector
Temperature Units: °C or °F able
Display: Color TFT touch-screen
Operation: All parameters configurable via touch screen display; single front panel on/off push but
Memory: 65536 readings (per recording)
Storage Capacity: 100 files maximum Handheld Data Logger Thermometer with Graphic Display
Logging Interval: 1 second, 10 second, 30 second, 1 minute, 5 minute, 30 minute, 1 hour, 6 hour, 12 hour
High/Low Alarms: User-able alarm thresholds
Start Date/Time (Data Logging Mode): Immediate or delayed start
PC Connection: Micro-USB via (included) 0.5 m (1.5') USB cable
Software: No special software required; unit appears as a mass storage device when connected to PC. Compatible with WINOOWs XP/VISTA/7 (32- and 64-bit)
Power: Internal rechargeable (via USB connection) lithium polymer battery (included)
Battery Life (On Single Charge): 24 hours typical; 8 hours continuous (depends on recording settings)
USB Supply Voltage: 4.5 Vdc minimum, 5.5 Vdc maximum
Operating Temperature Range: 0 to 50°C (32 to 122°F)
Weight: 201 g (7.1 oz)
Dimensions: 107 H x 68 W x 19 mm D (4.21 x 2.67 x 0.75")

产品编号 产品描述


OM-EL-ENVIROPAD-TC Handheld data logger thermometer with graphic display

OM-EL-BOOT Protective rubber boot for OM-EL-ENVIROPAD-TC
