OM-EL-USB-LITE-5详细介绍

OM-EL-USB-LITE-5

带USB接口的5组温度数据记录仪
OM-EL-USB-LITE-5
1年保修 CE

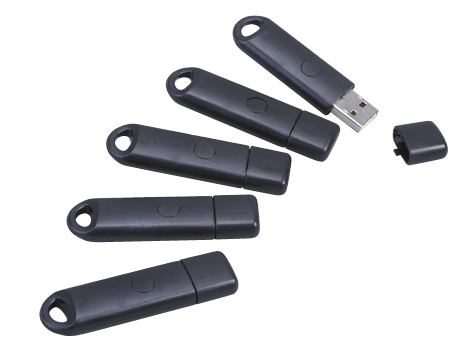

5 Pack Temperature Data Logger with USB Interface
OM-EL-USB-LITE-5:5 Pack Temperature Data Logger with USB Interface

OM-EL-USB-LITE-5
USB Interface for Setup and Data Download
-10 to 50°C (14 to 122°F) Measurement Range
2 User-Programmable Alarm Thresholds
Red/Green Alarm Status Indication via Pushbut

该om-el-usb-lite是一种低成本的温度数据记录仪，措施和存储多达4080个温度读数超过10到50°C（14至122°F）测量范围。它有一个固定的30分钟的采样率和1个月的连续使用的电池寿命。按下按钮，红色/绿色LED指示是否已被违反预设的报水平。数据记录器是配置和存储的数据插入模块到电脑的USB端口和运行控制软件在WINOOWs 98／2000／XP下载。下载的数据可以被绘制，印刷，并出口到其他应用程序。一个电池来安装。开始记录，拉出标签。

Battery Replacement
The user should replace the battery every month, or before logging critical data. The OM-EL-USB-LITE does not lose its stored readings when the battery is discharged or replaced; however, the data logging process will stop and cannot restart until the battery has been replaced and the logged data has been downloaded to a PC.

For maximum logging life, use only OM-EL-BATT-LITE replacement batteries. Before replacing the battery, remove the OM-EL-USB-LITE from the PC.

Note: Leaving the OM-EL-USBLITE plugged into the USB port for longer than required will shorten battery life.

LED Flashing Modes
The OM-EL-USB-LITE has a bicolor LED status light. To save power, it operates for only a short time after the pushbut is released.

规格
Measurement Range: -10 to 50°C (14 to 122°F)
Internal Resolution: 1°C (2°F)
Accuracy: ±2.5°C (±4.5°F)
Memory: 4080 readings
Logging Interval: 30 minute (fixed)
Operating Temperature Range: -10 to 50°C (14 to 122°F)
Alarm Thresholds: 2 (user programmable)
Start Date/Time: able in software
Status Indicators (LEDs): Red/green alarm status indication via pushbut
Software: WINOOWs 98/2000/XP
Power: 3 V coin cell battery (included)
Battery Life: 1 month
Weight: 30 g (1 oz)
Dimensions:
68 x 18 x 9.4 mm (2.7 x 0.7 x 0.4" )

产品型号 产品描述

OM-EL-USB-LITE-5 Temperature data logger with USB interface, package of 5

OM-EL-BATT-LITE Replacement 3 V coin cell battery

OM-EL-USB-LITE-5
