OM-EL-USB-1-RCG详细介绍

OM-EL-USB-1-RCG

可充电温度数据记录器，带USB接口
OM-EL-USB-1-RCG

1年保修 新产品! CE OmegaCare
可充电温度数据记录器，带USB接口
OM-EL-USB-1-RCG:可充电温度数据记录器，带USB接口

OM-EL-USB-1-RCG
316 SS NEMA 4X (IP67) Rated Case
USB Interface for Easy Setup and Data Download
Rechargeable Lithium-Ion Battery
Status LEDs Behind Protective Plastic WINOOW
User-Programmable Alarm Thresholds
Immediate or Delayed Start Logging
Includes WINOOWs Control Software

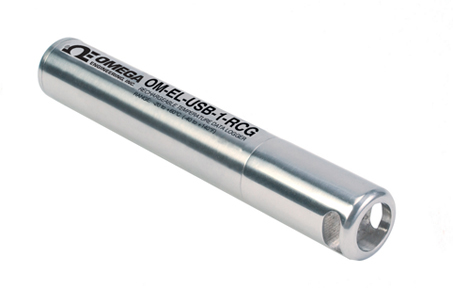

The OM-EL-USB-1-RCG data logger measures and stores up to 32,510 temperature readings over a
-20 to 60°C (-4 to 140°F) temperature range. The 316 SS case with polycarbonate WINOOW assembly is corrosion, impact and water resistant to NEMA 4X (IP67) standards. The unit is powered by a lithium-ion rechargeable battery which allows logging for up to 1 month. The user can easily set-up the data logger and download the stored data by plugging the module straight into a PC’s USB port and running the easy-to-use WINOOWs software. Software able set-up parameters include logging rate (1 sec,
10 sec, 1 min, 5 min, 30 min, 1 hr, 6 hr, 12 hr), start-date/time, and desired temperature units (oC or oF). Data can then be graphed, printed and exported to other applications such as Excel. Correct functioning of the unit is indicated by flashing red and green LEDs.

Specifications
Temperature Measurement Range: -20 to 60oC (-4 to 140oF)
Resolution: 0.1oC (0.2oF)
Accuracy: ±1.0oC (±2.0oF) typical
Temperature Units: oC (oF) able in software
Memory: 32,510 readings
Logging Interval: 1 sec, 10 sec, 1 min, 5 min, 30 min, 1 hr, 6 hr, 12 hr
(able in software)
Start Date/Time: able in software
Alarm Thresholds: High/low temperature alarm thresholds able in software
Status Indicators (LEDs): Red and green
Operating Temperature Range: -20 to 60oC (-4 to 140oF)
Charging Temperature Range: 10 to 30oC (50 to 86oF)
Recharging Time: 5 hours max (the data logger must be connected to an active USB port
to recharge the battery)
Battery Life (Rechargeable Lithium-Ion): 1 week min (at -20oC, 1 sec logging interval);
4 weeks max (at 20oC, 1 min logging interval)
Software: WINOOWs 2000/XP/ VISTA and 7 (32-bit and 64-bit)
Power: Rechargeable lithium-ion battery (280 mAh)
Weight: 40 g (1.4 oz)
Dimensions: 92.7 L x 19.8 mm D (3.65 x 0.78")

产品型号 产品描述

OM-EL-USB-1-RCG Rechargeable temperature data logger with USB interface
