OM-CP-TCTEMP1000详细介绍

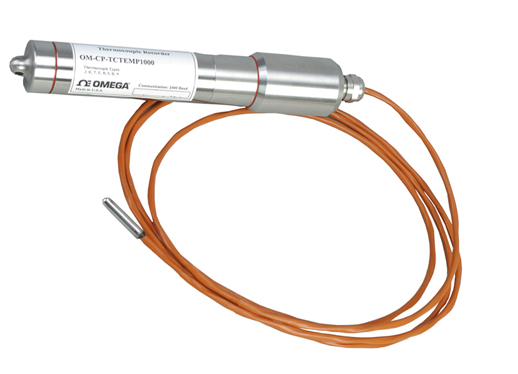

OM-CP-TCTEMP1000

坚固耐用，潜水热电偶记录器
om-cp-tctemp1000
5年保修CE
坚固耐用，潜水热电偶记录器
om-cp-tctemp1000：坚固耐用，潜水热电偶记录器
om-cp-tctemp1000
崎岖不平的潜水
双通道环境和远程温度
实时操作
自动将你的电脑变成长条图表记录仪
自动热电偶线性化
记忆环绕
可编程的开始时间
该om-cp-tctemp1000是一种坚固耐用，防水，电池供电，热电偶的温度记录仪。这是一个的，紧凑，便携，易于使用的设备，将测量和记录多达16383个通道测量。存储介质是非易失性固态存储器，提供的数据安全，即使电池已出院。实时时钟可以确保所有数据的时间和日期戳。该设备可以启动和停止直接从您的计算机和它的小尺寸使得它几乎可以满足任何地方。
该om-cp-tctemp1000使得数据检索快捷方便即使在恶劣的环境中。简单地插入到一个可用的COM端口和用户友好的软件做休息。WINOOWs软件将你的电脑变成一个真正的时间的长条图表记录仪。数据可以打印图形或表格的格式，也可以导出到一个文本或微软Excel文件。

规格：
Internal Channel
Temperature Range: -40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Temperature Accuracy: ±0.5°C (0 to 50°C)
Remote Channel Thermocouple Types:
J, K, T, E, R, S, B, N (36" Type K T/C supplied with unit), other
T/C’s available, contact the Data Aquisition Department
Thermocouple Connection: Female subminiature (SMP)
Cold Junction Compensation: Automatic based on internal channel
Start Time: Software programamble start time and date,
up to six months in advance
Real Time Recording: May be used with PC to
monitor and record data in real time
Memory: 16,383 readings per channel
Reading Interval: 1 reading every
2 seconds to 1 every 12 hours
Calibration Date: Digital calibration through software
Data Format: Date and time stamped, °C, °F, K, °R, mV
Time Accuracy: ±1 minute/month at 20°C, RS-232 port not in use
Computer Interface: PC serial or USB (interface cable required) 2400 baud
Power: 3.6 V lithium battery (included)
Battery Life: 1 year typical (1 minute reading rate @ 25°C)
Software: XP SP3/Vista 7 and 8 (32-bit and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F)
0 to 100% RH non-condensing
Submersible: Up to 45 m (150')
Dimensions: 31 mm dia x 188 mm L (1.2 x 7.4")
Weight: 380 g (13 oz)

产品型号 产品描述

OM-CP-TCTEMP1000 Rugged thermocouple recorder

OM-CP-TCTEMP1000-CERT Rugged thermocouple recorder with NIST calibration certificate

OM-CP-IFC200 WINOOWs software and 3.7 m (12') USB interface cable

OM-CP-BAT102 Replacement 3.6 V lithium battery
