OM-EL-USB-2详细介绍

OM-EL-USB-2

温度 ? 记录器 ? 数据记录器 ? OM-EL Series
Panel Mount and Portable Data Loggers
OM-EL Series

8-Bit and 12-Bit Models
Thermocouple, 100 Ohm Pt RTD, pH, dc Voltage, dc Current, Pulse Inputs
Up to 3 Year Battery Life
Record up to 8000 Readings

产品描述

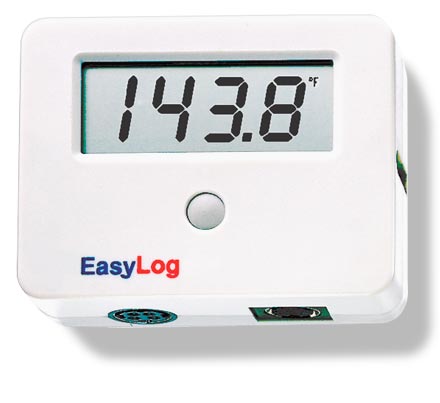

OMEGA's OM-EL Series is a family of portable data loggers with up to 12 bit accuracy and resolution.

OM-EL Series data loggers feature a high contrast LCD display, up to 3 years battery life, adjustable sampling rate (variable between 5 seconds and 12 hours), data storage up to 8000 readings, alarm modes, delayed, automatic or push to start. The 8 bit (256 steps) model has an integral sensor, making temperature measurements particularly easy.

Ideally suited for incorporation into new and existing measurement systems, readings can be stored and processed in the panel meter, allowing full control of the monitored process. The OM-ELWIN WINOOWs compatible (WINOOWs 95/98/NT/2000/XP) software ensures an effortless set-up of one or more of the OM-EL Series data loggers modules and controls the transfer of logged data to the PC for further analysis. Although perfectly suited to self powered applications, up to eight OM-EL Series data loggers modules can be linked together in a network to form a complete control and measurement system.

Designed to perform simple or sophisticated data logging with the minimum of cost and complexity, the logger has a built-in LCD display and an internal battery which can last up 3 years, depending on sample rate and parameters being measured. Sample intervals are user-variable between 5 seconds and 12 hours with a maximum capacity of over 8000 readings.

Easy to install on a WINOOWs 2000/XP platform, the OM-EL-WIN Easy Log control software is needed to enable the user to configure and operate any OM-EL data logger and is supplied on a 31/2 disk with a manual and serial link cable. Allowing up to eight loggers to be operated as a network, the OM-EL-WIN software includes automatic prompting for ease of use, a mimic mode which allows remote indication on the PC, extensive graphing facilities and the facility to export data directly into popular spreadsheets such as Excel.

Common Specifications
Number of Readings: 8000
Logging Interval: able 5 sec to 12 hrs
Serial Link: 8 pin mini-DIN connection
Sensor Connection:
OM-EL-2 - phone jack,
OM-EL-2-12 BIT - 4-pin connector (mating connector supplied)
Range ion: 8 bit model - by software ion,
12 bit model - ed by internal jumper

产品编号 产品描述

OM-EL-WIN EasyLog for WINOOWs software for OM-EL Series data loggers (except Model OM-EL-LITE)

OM-EL-BATT Replacement 3.6 V lithium battery
