OM-CP-BRIDGE101A-150MV详细介绍

OM-CP-BRIDGE101A-150MV

压力、应力和重力 ? 配件 ? 桥/称重传感器放大器 ? OM-CP-BRIDGE110-10

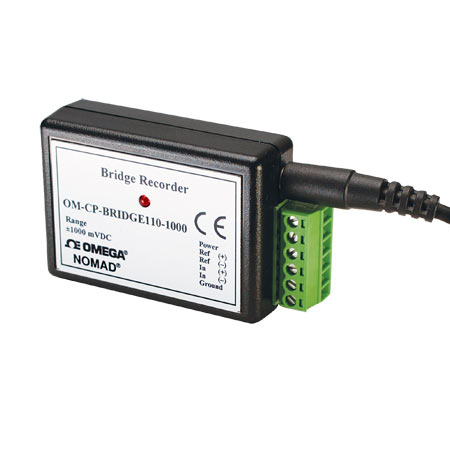

电桥/应变片数据记录器，NOMAD®系列成员
OM-CP-BRIDGE110-10

10 Year Battery Life
High Speed Download
Programmable Start Time
Miniature Size
Real Time Operation
Reads in Microstrain and Engineering Units
Use with Strain Gages, Load Cells, Pressure Transducers, Torque Sensors, Load Bolts and POSTTTION Transducers

产品描述
The OM-CP-BRIDGE110 is a miniature battery powered, stand alone, bridge/strain gage data logger. The OM-CP-BRIDGE110 features a real-time clock module that extends the battery life to more than 10 years (15 minute reading rate at 25°C) and allows for high speed downloads. This is an all-in-one compact, portable, easy-to-use device that will measure and record up to 32,767 measurements. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OM-CP-BRIDGE110 makes data retrieval quick and easy. Simply plug it into an available COM port and our user-friendly software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file.

SPECIFICATIONS
Input Connection: 6-POSTTTION removable screw terminal
Input Impedance: 1 Mduring acquisition, low impedance when inactive
Reference Voltage Output: 2.5 Vdc, 2.5 mA (1 k) maximum load
Maximum Input Signal Impedance: 5 k (350 .sensors may be used with series resistors toproduce gt;1 K; 120 .gages may be used in half and quarter bridge configurations)
Temperature Effect on Span and Offset: lt;25 μV over -40 to 80°C
Engineering Units: Stored in device, user may define any desired scale and offset from ±1.000E-31 to ±9.999E+31
Start Time: Start time and date are programmable through software up to six months in advance
Real Time Recording: Device may be used with PC to monitor and record data in real time
Memory: 32,767 readings
Recording Interval: 1 reading every 2 seconds to 1 every 12 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device to alert user when calibration is required
Battery Life: 10 years at 15 min reading rate, 25°C
Power: 3.6 V lithium battery included
Data Format: Date and time stamped, %, ppm; e, μe, V, mV, μV engineering units specified through software
Time Accuracy: ±1 minute per month at 20°C to 30°C)
Computer Interface: PC serial, RS-232C COM or USB (interface cable required); 56,600 baud
Software: XP SP3/Vista and 7 (32 and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F) 0 to 95% RH non-condensing
Dimensions: 42 H x 68 W x 20 mm D (1.7 x 2.7 x 0.8")
Weight: 60 g (2 oz)

产品编号 产品描述

OM-CP-IFC200 WINOOWs software and 1.8 m (6') USB interface cable

OM-CP-BAT105 Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-6 Replacement 6 POSTTTION terminal block connector
