UWTC-CABLE详细介绍

UWTC-CABLE

数据采集 ? 传感器, 发送器, 接收器, 仪表和控制器 ? UWPH-2-NEMA

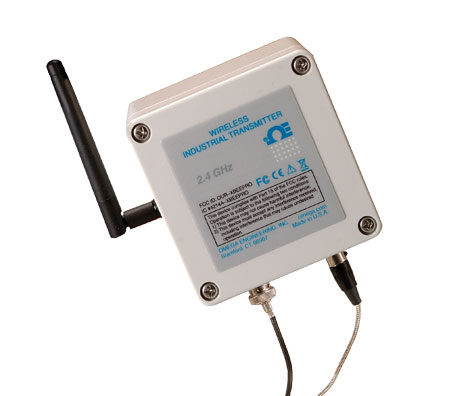

Wireless pH/Temperature Transmitter

1年保修CE
0 to 14 pH and 0 to 100°C (32 to 212°F) Ranges
Transmit pH and Temperature, Signal Strength and Battery Status in Real-Time
Free Software Converts Your PC into a Multi-Channel Chart Recorder or Data Logger
Low Power Operation and Sleep Mode for Long Battery Life
Works with UWTC Series Wireless Temperature, RH, Infrared Temperature, and Process Transmitters for a Complete Wireless System

产品描述
OMEGA’s new wireless pH/temperature transmitter features a high performance microprocessor based wireless radio transmitter built into a NEMA enclosure. Compatible with most pH probes with a BNC connector, the UWPH provides fast, accurate readings. For automatic temperature compensation, the UWPH accepts a Pt100 RTD probe through a standard (series T) connector. Configured through a standard USB port, the UWPH can transmit data at rates from 1 to 30 samples per minute. Each transmitted reading includes the pH and temperature data, along with RF signal strength and battery condition to the host. Using the standard software (included), this data can be displayed on screen in real time. The software allows the user to use your PC as a meter, chart recorder or data logger, so data can be saved, or exported to a spreadsheet file.

Wireless Receivers
UWTC-REC1: 48-channel wireless receiver with USB
UWTC-REC2: 48-channel wireless receiver with USB and single analog output
UWTC-REC4: 48-channel DIN rail mount wireless receiver with USB and four analog output signals
UWTC-REC6: economical single channel wireless receiver with single analog output

SPECIFICATIONS
pH Input
Input Range: 0 to 14 pH
Accuracy: ±0.1 pH
Resolution: 0.01 pH
Response Time: 2 sec max
Input Connection: BNC
Temperature Compensation: Automatic, 0 to 100°C (32 to 212°F)
RTD Temperature Input
Input Type: Pt100 O, 0.00385 curve
Range: 0 to 100°C (32 to 212°F)
Accuracy: ±1°C (1.8°F)
Resolution: 0.1°
Input Connection: TA3M receptacle;TA3F mating connector (included)
Computer Interface: USB
Transmit Sample Rate: Programmable from 2 sec to 2 min Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10 dBm (10 mW)
Range of RF Link:
Outdoor Line of Sight: Up to 120 m (400')
Indoor/Urban: Up to 40 m (130')
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Software (Included Free): Requires WINOOWs® operating system
Power: One 3.6V, lithium “C” cell (included)
Battery Life (Typical): 3 years (at 1 sample/minute reading rate @ 25°C)
Enclosure: NEMA-4X polycarbonate
Enclosure Dimensions: 80 L x 82 mm W (3.15 x 3.23")

产品编号 产品描述

UWPH-2-NEMA Wireless pH/temperature transmitter

Accessories

UWTC-CABLE Spare USB programming/communication cable
UWTC-BATT-C Replacement 3.6V, lithium “C” cell battery assembly
PHE-1311 Gel-filled pH electrode, general purpose
PRTF-10-2-100-1/8-6-E-TA3F Pt100 RTD probe, 1/8' dia, 6' L, with 40' PFA insulated cable with TA3F connector
PHA-4 4.00 pH buffer solution 500 mL (1 pint) bottle
PHA-7 7.00 pH buffer solution 500 mL (1 pint) bottle
PHA-10 10.00 pH buffer solution 500 mL (1 pint) bottle


产品编号

UWPH-2-NEMA

Accessories

UWTC-CABLE
UWTC-BATT-C
PHE-1311
PRTF-10-2-100-1/8-6-E-TA3F
PHA-4
PHA-7
PHA-10
