48-Bit DIO Boards with Counter/Timer for PCI Bus and PCI Express Bus
OME-PIO-D48U

48 Digital I/O Channels Buffered on the Board
Two Bi-Directional 24-Bit Ports
(One D-Sub 37-pin Connector, One 50-pin Flat Connector)
Eight-Bit Groups Independently able for I/O on each 24-Bit Port
Connects Directly to OME-DB-24P Daughter Boards
One 32-Bit Programmable Internal Timer
One 16-Bit Event Counter
Interrupt Source: 4 Channels
Pull-Up or Pull-Down Resistors on I/O Lines
Emulates Two Industrial- Standard 8255 Mode 0
High Output Driving Capability

产品描述

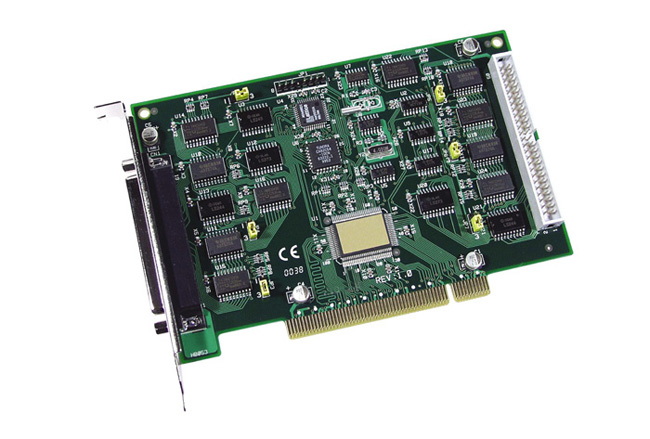

The OME-PIO-D48U and OME-PEX-D48 provides 48 TTL digital I/O lines and consists of six 8-bit bi-directional ports. The OME-PIO-D48U has one 24-bit digital I/O port that is accessed via the 37-pin D-Sub connector and a second 24-bit digital I/O port that is accessed via the 50-pin flat cable connector. The 8-bit ports on each connector are named port A (PA), port B (PB) and port C (PC).

All ports are configured as inputs upon power-up or reset. The 50-pin header can be connected to a
50-pin flat cable. The flat cable can be connected to OME-ADP-37/PCI or OME-ADP-50/PCI adapter which can be fixed on the computer chassis. The OME-PIO-D48U can be installed in a 3.3 V or 5 V PCI bus and supports true "Plug amp; Play". The OME-PEX-D48 can be installed in a PCI Express x 1 bus.

Software Development Kit
All boards are supplied with a standard software development kit for WINOOWs XP/Vista/7. The software development kit includes DLL files for programming in C,C++or other high level languages and OCX files for Visual Basic or Active X programming. LabView drivers are also included.

Specifications
PCI BUS TYPE:
OME-PIO-D48U: 3.3 V/5 V universal
OME-PEX-D48: PCI Express x 1

ALL INPUTS AND OUTPUTS ARE TTL COMPATIBLE
Logic High Voltage: 2.4 V (min)
Logic Low Voltage: 0.8 V (max)
Sink Current: 64 mA (max)
Source Current: 32 mA (max)
Power: +5 V @900 mA

ENVIRONMENTAL
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 80°C (-4 to 176°F)
Humidity: 0 to 90% RH non-condensing
Dimensions: 105 H x 156 mm W (4.1 x 6.1")

产品编号 产品描述
OME-PIO-D48U PCI bus 48-bit DIO board
OME-PEX-D48 PCI Express bus 48-bit DIO board
OME-DB-24P 24 channel isolated D/I board with 1.5 m (5') 50-pin flat cable
OME-DB-24PR/12 24 channel power relay board (12 V)
OME-DB-24POR 24 channel photo mos relay output board with 1.5 m (5') 50-pin flat cable
OME-DB-24SSR 24 channel solid state relay output board with 1.5 m (5') 50-pin flat cable
OME-DB-24C 24 channel open-collector output board with 1.5 m (5') 50-pin flat cable
OME-DB-24R/12 24 channel relay board (12 V)
OME-ADP-37/PCI 50-pin extender to OME-DB-37 (PCI bus)
OME-ADP-50/PCI 50-pin extender (PCI bus)
