UNIV-AC-100/240详细介绍

UNIV-AC-100/240

数据采集 ? 传感器, 发送器, 接收器, 仪表和控制器 ? WRS232-USB
通用RS232至USB收发器

1年保修CE
Converts Any RS232 Device Into Wireless Communication
Wireless USB Interface Directly to PC
One Wireless Receiver Module Operates Multiple Wireless Transmitter Modules
RF Transceiver Carrier: ISM 2.4 GHz
RF Range: Up to 40 m (130') Indoor/Urban Up to 120 m (400') Outdoor/Line of Sight

产品描述

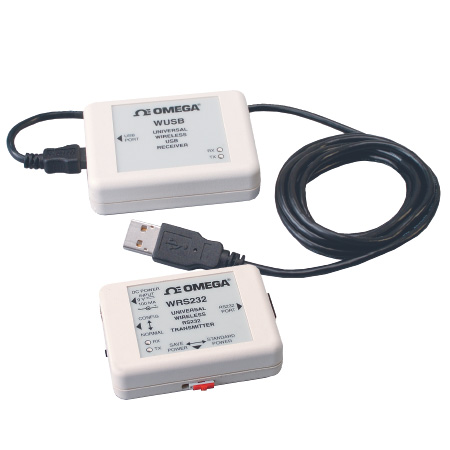

Omega's new universal wireless RS232 to USB transceiver interfaces to any RS232 device, and makes it wireless. The wireless transmitter module connects to an RS232 device. The wireless receiver module connects to a PC via USB interface. The PC can communicate with the RS232 device as if it is directly connected.

SPECIFICATIONS
Wireless Transmitter
Device Interface: RS232, RJ12 to DB9 connector included
RS232 Communication: 9600 BPS, 8 Bits of Data, 1 Stop Bit, No Parity
RF Transmitter Carrier: ISM 2.4 GHz, Direct sequence spread spectrum, License free world wide
RF Data Packet Standard: IEEE 802.15.4 open communication architecture
RF Power Output: 10 dBm (10 mW)
Supply Voltage: External 9 Vdc, or Powered thru RJ12 connection
Supply Current: 60 mA
AC Adapter: 100 to 240 Vac, 50 to 60 Hz, UL, CE, FCC marked
Output Voltage: 9 Vdc @ 1.7 A
Output Plug (Female): Center positive, coax 2.0/5.5/10 mm
Operating Ambient Conditions: 0 to 50oC, 0 to 90% RH (non-condensing)
Dimensions: 70 x 51 x 20 mm (2.75 x 2 x 0.80")

Wireless Receiver
PC Interface: USB 1.1, USB 2.0 compatible
Cable Type: USB 4P(A) male to mini 5P(B) male 1.8 m (6') long included
RF Range: Up to 40 m (130') indoor/urban, Up to 120 m (400') outdoor/line of sight
Operating Ambient Conditions: 0 to 50oC, 0 to 90% RH (non-condensing)
Dimensions: 70 x 51 x 20 mm(2.75 x 2 x 0.80")

产品编号 产品描述


WRS232-USB Wireless RS232 to USB Transceiver
WRS232 Wireless RS232 transmitter module
WUSB Wireless USB receiver module

Accessories

UNIV-AC-100/240 9 Vdc @ 1.7 A adaptor, recommended to power wireless transmitter
WRS232-MB Mounting bracket, DIN rail



产品编号


WRS232-USB
WRS232
WUSB

Accessories

UNIV-AC-100/240
WRS232-MB

WRS232
WRS232-MB
WRS232-USB
WRS232-USB/N
WRS232/N

UNIV-AC-100/240
