UWPC-2-NEMA

数据采集 ? 传感器, 发送器, 接收器, 仪表和控制器 ? UWPC-2-NEMA

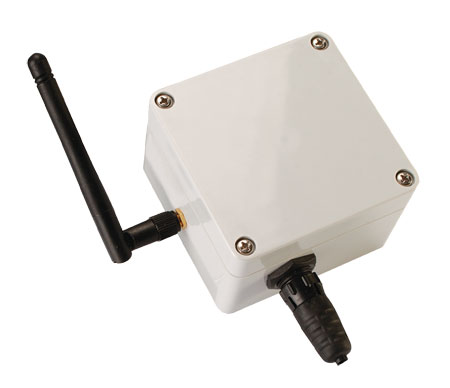

Wireless Process Transmitter for Sensors with Voltage or Current Output

1年保修CE
Convert Process Signal to Wireless
Accepts 0 to 1V, 0 to 5V, 0 to 10V and 4 to 20 mA Signals
Industrial NEMA 4X (IP65) Enclosure
Free Software for Monitoring, Recording, and Data Logging Included
Low Power Operation/Sleep Mode for Long Battery Life
UWTC Receivers Work with Up to 48 Wireless Transmitters

产品描述
The new UWPC wireless process transmitter converts standard process signals (0 to 1V, 0 to 5V, 0 to 10V and 4 to 20 mA) into a wireless signal that can be transmitted up to 120 m (400'), eliminating the need for wiring runs in a variety of environments. The wireless transmitter is housed in a NEMA 4X (IP65) enclosure, providing water and dust protection. The UWPC transmits data at preset intervals, able from 2 to 120 seconds. Transmitted data includes the sensor reading, along with RF signal strength and battery status.

The UWPC is compatible with the UWTC-REC family of wireless receivers, which can accept signals from up to 48 wireless transmitters, and display them on a PC. Receivers are available with optional display and analog output. An analog output can be used to interface with a process controller, PLC or data acquisition device. Each unit includes free software that converts your PC into a monitor, chart recorder or data logger. Readings can be saved and later printed or exported to a spreadsheet file.

Wireless Receivers
UWTC-REC1: 48-channel wireless receiver with USB
UWTC-REC2: 48-channel wireless receiver with USB and single analog output
UWTC-REC4: 48-channel DIN rail mount wireless receiver with USB and four analog output signals
UWTC-REC6: economical single channel wireless receiver with single analog output

SPECIFICATIONS
Input Range: 0 to 1 Vdc, 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Accuracy: ±0.04% of range
Input Connection: Panel connector (mating connector supplied)
Computer Interface: USB, for initial transmitter/sensor setup and configuration
Transmit Sample Rate: Programmable from 1 sample/2 sec to 1 sample/120 sec
Radio Frequency (RF) Transceiver Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10 dBm (10 mW)
Range of RF Link:
Outdoor Line of Sight: Up to 120 m (400')
Indoor/urban: Up to 40 m (130')
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Software (Included Free): Requires WINOOWs® 2000, XP or Vista (32 bit) operating system
Power: One 3.6V, lithium "C" cell (included)
Battery Life (Typical): 3 years 1 sample/minute reading rate @ 25°C
Enclosure: NEMA 4 (IP65), polycarbonate
Enclosure Dimensions: 80 L x 82 mm W (3.15 x 3.23")
Weight: 272 g (9.6 oz)

产品编号 产品描述

UWPC-2-NEMA Wireless process input transmitter, 0 to 1 Vdc, 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA input ranges

Accessories

UWTC-CABLE Spare USB programming/communication cable
UWTC-BATT-C Replacement 3.6V, lithium 'C' cell battery assembly

产品编号

UWPC-2-NEMA

Accessories

UWTC-CABLE
UWTC-BATT-C
