数据采集 ? 数据记录仪 ? 数据记录仪查找 ? OM-CP-TC110-2MB

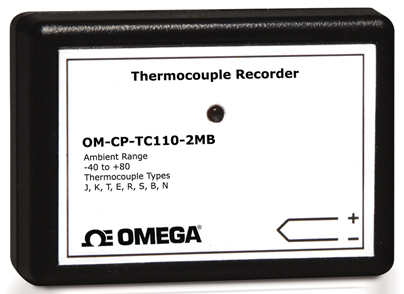

Thermocouple Data Logger with Extended Memory
OM-CP-TC110-2MB

Wide Temperature Range
Accepts Thermocouple Types J, K, T, E, R, S, B, N
High Speed Download
NIST Traceable
Real-Time Operation
Programmable Start Time
Miniature Size

产品描述
This product is no longer available please see OM-CP-TC101A as a direct substitute

The OM-CP-TC110-2MB is a miniature, battery powered, stand alone, thermocouple based temperature data logger. The OM-CP-TC110-2MB features a real-time clock module that extends the battery life to gt;2 years and allows for high speed downloads. This is an all-in-one compact, portable, easy to use device that will measure and record up to 262,144 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OM-CP-TC110-2MB makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly does the rest.

Specifications
INTERNAL CHANNEL
Temperature Range: -40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C (0 to 50°C)

REMOTE CHANNEL
Thermocouple Types: J, K, T, E, R, S, B, N
Thermocouple Connection: Female subminiature (SMP)
Cold Junction Compensation: Automatic, based on internal channel
Maximum Thermocouple Resistance: 1000Ω, lt;100Ω recommended
Start Time: Software programmable immediate start
or delay start up to six months in advance
Real Time Recording: May be used with PC to monitor
and record data in real time
Memory: 262,144 readings per channel for a total of 524,288 readings;
software configurable memory wrap
Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Battery Type: 3.6 V lithium battery included, user replaceable
Battery Life: 2 years (5 minute reading rate at 25°C)
Data Format: Date and time stamped °C, °F, K, °R
Time Accuracy: ±1 minute/month (at 20 to 30°C)
Computer Interface: PC serial or USB (interface cable required); 57,600 baud
Software: XP SP3/Vista and 7(32-bit and 64-bit)
Operating Environment: -40 to 80°C, (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions: 44 x 59 x 21 mm (1.7 x 2.3 x 0.8")
Weight: 35 g (1.3 oz)

产品编号 产品描述

OM-CP-IFC200 WINOOWs software and 1.8 m (6') USB interface cable

OM-CP-BAT105 Replacement 3.6 V lithium battery
