CT87-PEN-BLACK详细介绍

CT87-PEN-BLACK

温度 ? 记录器 ? 平台式图表记录仪 ? RD-87 Series
条形图记录仪

1年保修OmegaCare
J Thermocouple, Temperature, Temperature/Humidity, Voltage, Current, 4 to 20 mA Input Models
LCD Alphanumeric Display, 16 Characters 2 Line
100 mm (4") Strip Chart
Metric (mm) or Standard (inch) Charts
Probes are Field Interchangeable and Can be Extended
Over/Under Alarm with Relay and Beeper, able Delay Feature
Battery Backup for Up to 48 Hours
+12 Vdc for Mobile Applications Compatible

产品描述
The OMEGA RD-87 Series strip chart recorders are offered in different models to record either a J Thermocouple, Temperature, Temperature/Humidity, Voltage, Current, or a 4 to 20 mA input signal on a 100 mm (4") wide strip chart, with a single pen. The temperature/humidity model uses two pens. Pens are colored to maximize chart readability. All RD-87 models offer a LCD display and user friendly controls. A full function alarm feature is provided on the RD-87 Series. The alarm can be set to sound an audible signal when the measured value(s) has exceeded an upper or lower limit. Each limit is individually set from the front panel. A delay time before the alarm is activated may be set by the user to prevent nuisance alarms caused by short-term variations. Low power normally open relay contacts are provided to allow activation of a remote alarm, phone dialer or annunciation.
Power is supplied through a 120 Vac 50/60 Hz plug-in adapter. External power may be supplied from any 12 Vdc source such as automotive, marine, or other battery. Battery backup for up to 48 hours is featured to provide operation during temporary power loss.

产品编号 产品描述

RD-87-TEMP Temperature recorder

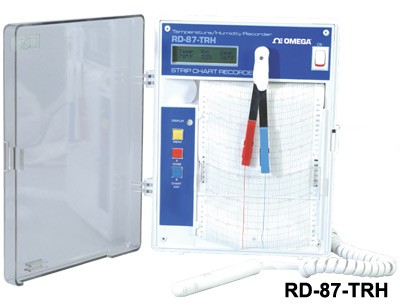

RD-87-TRH Temperature/humidity recorder
RD-87-VAC AC voltage recorder
RD-87-CAC AC current recorder
RD-87-MA 4 to 20 mA and DC voltage recorder

Recommended Items

RD-87-RP-A Replacement paper, American scale, package of 4
RD-87-RP-M Replacement paper, Metric scale, package of 4
CT87-PEN-BLACK Replacement black pen
CTH89-PEN-BLUE Replacement blue pen (for RD-87-TRH)(shelf life is one year)
CTH89-PEN-RED Replacement red pen (for RD-87-TRH)(shelf life is one year)
JHSS-18U-RSC-12 Handle probe, J type with retractable cable and SMP connector
MN1500 Batteries, alkaline 1.5 V “AA”, 2/pack

产品编号

RD-87-TEMP
RD-87-TRH
RD-87-VAC
RD-87-CAC
RD-87-MA

Recommended Items

RD-87-RP-A
RD-87-RP-M
CT87-PEN-BLACK
CTH89-PEN-BLUE
CTH89-PEN-RED
JHSS-18U-RSC-12
MN1500

RD-87-RP-A
RD-87-RP-M

CT87-PEN-BLACK
