OM-CP-PROCESS101A-20MA详细介绍

OM-CP-PROCESS101A-20MA

环境记录仪和数据记录仪 ? 便携手持式数据记录仪 ? OM-CP-PROCESS101 and OM-CP-PROCESS110
4 to 20 mA Current Data Loggers Part of the NOMAD®Family

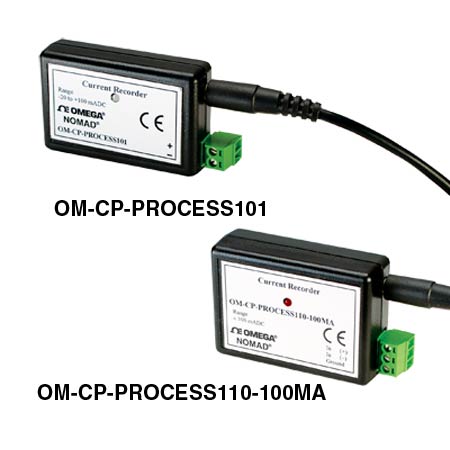

OM-CP-PROCESS101 and OM-CP-PROCESS110

16-Bit Resolution
Programmable Scale Factor, Engineering Units and Offset Value
Memory Wrap Around
Miniature Size
User Calibration Through Software
Real Time Operation

产品描述
This product is no longer available please see OM-CP-PROCESS101A as a direct substitute

The OM-CP-PROCESS101 and OM-CP-PROCESS110 are low cost, high resolution, miniature battery powered, stand-alone data loggers used for automatically recording current. In addition, these data loggers allow the user to store user defined units such as pressure into the device as well as scale factors and offset values. This enables the user to easily linearize and scale any process meter that provides an analog output to engineering units automatically.

This all-in-one compact, portable, easy-to- use device will measure and record up to 32,768 current measurements. These dataloggers are a major leap forward in both size and performance. Its real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an empty COM port and our easy to use software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file.

Specifications Input Connection: Screw terminal
Current Calibration: Digital calibration is available in software
Recording Interval: 1 second to 12 hours able in software
Real Time Recording: Device may be used with PC
to monitor and record data in real time
Red Visual Indicator: LED flashes at ed reading rate
Power: 3.6 V lithium battery included
Battery Life:
OM-CP-PROCESS101: 1 year at 1 min reading rate
OM-CP-PROCESS110: 10 years at 15 min reading rate
Time Accuracy: ±1 minute per month at 20°C
Data Format: Date and time stamped, volts,
other engineering units programmable through software
ADC Resolution: 16-bits
Weight:
OM-CP-PROCESS101: 30 g (1 oz)
OM-CP-PROCESS110: 60 g (2 oz)
Computer Interface: PC serial, RS-232C COM or USB
(interface cable required)
Software: XP SP3/Vista and 7 (32-bit and 64-bit)
Communications:
OM-CP-PROCESS101: 2400 baud
OM-CP-PROCESS110: 57600 baud
Operating Environment: -40 to 80°C (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions:
OM-CP-PROCESS101: 35 H x 64 W x 15 mm D (1.4 x 2.5 x 0.6")
OM-CP-PROCESS110: 41 H x 58 W x 20 mm D (1.6 x 2.3 x 0.8")

产品编号 产品描述

OM-CP-IFC200 WINOOWs software and 1.8 m (6') USB interface cable

OM-CP-BAT105 Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-2 Replacement 2 POSTTTION terminal block connector for the OM-CP-PROCESS101

OM-CP-CONNECTOR-3 Replacement 3 POSTTTION terminal block connector for the OM-CP-PROCESS110-1MA, OM-CP-PROCESS110-25MA and OM-CP-PROCESS110-100MA

产品编号 产品描述

OM-CP-IFC200
OM-CP-BAT105
OM-CP-CONNECTOR-2
OM-CP-CONNECTOR-3

OM-CP-PROCESS101A-160MA
OM-CP-PROCESS101A-160MA-CERT
OM-CP-PROCESS101A-20MA
OM-CP-PROCESS101A-20MA-CERT
OM-CP-PROCESS101A-3A
OM-CP-PROCESS101A-3A-CERT

OM-CP-PROCESS110-100MA
OM-CP-PROCESS110-100MA-CERT
OM-CP-PROCESS110-1MA-CERT

OM-CP-PROCESS101A-20MA
