OM-CP-IFC200详细介绍

OM-CP-IFC200

数据采集 ? ? OM-CP-MOTOR101A Series
机械开/关数据记录系统

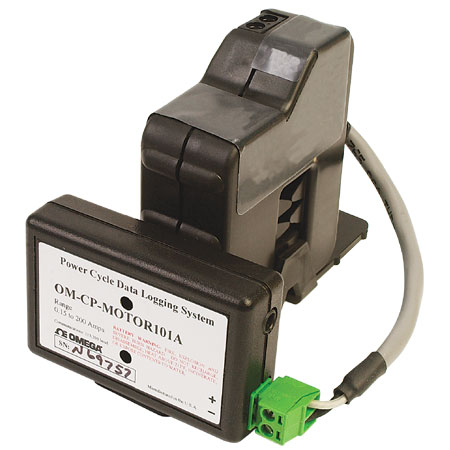

OM-CP-MOTOR101A Series

No External Power Required
150 mA Trip Point
Compatible up to 200 A
Real Time Operation
Useful for Energy Audits and Time Studies

产品描述
The OM-CP-MOTOR101A Series measures and records on and off status changes for motors or other equipment drawing up to 200 Amps. The state change occurs when the current switch exceeds the 150 mA set point. This allows for most basic equipment to be monitored. The current switch monitors whether there is current passing through a wire around which it is attached.

When the current exceeds 150 mA, the output changes and provides a voltage for the
OM-CP-MOTOR101A to measure. The device can hold up to 406,323 state changes, but memory will only be used if the status has changed. The device can be programmed to check for status changes 4 times per second up to once every 24 hours.

Data retrieval is simple. Simply plug it into an available USB port and our user-friendly software does the rest. The software converts a PC into a real-time strip chart recorder. Data can be printed in graphical and tabular format or exported to a text or Microsoft Excel® file. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.

Specifications
Amperage Range: 0.15 to 200 A
Trip Point: 0.15A (150 mA) fixed (200 mA AC for 50 Hz operation)
Status Output (Max): N.O. 1.0 A @ 30 Vac/Vdc
Housing: Split core
Reading Rate: 4 Hz to 1 every 24 hr
Memory: 406,323 readings; software configurable memory wrap
Wrap Around: Yes
Start Modes: Immediate start, delay start up to 18 months, multiple pushbut start/stop
Multiple Start/Stop Mode: Start and stop the device multiple times without having to download data or communicate with a PC
Multiple Start/Stop Mode Activation:
To Start the Device:Press and hold the pushbut for 5 seconds, the green LED will flash during this time; the device has started logging
To Stop the Device:Press and hold the pushbut for 5 seconds, the red LED will flash for three seconds and then the green LED will flashfor two seconds; the device has stopped logging
Real Time Recording: The device may be used with PC to monitor and record data in real-time
LED Functionality:
Green LED Blinks: 10 second rate to indicate logging, 15 second rate to indicate delay start mode
Red LED Blinks: 10 second rate to indicate low battery and/or full memory
Password Protection: An optional password may be programmed into the device to restrict access to configuration options; data may be read out without the password
Engineering Units: Native measurement units can be scaled to display measurement units of another type such as on/off, open/closed and more
Battery Type: 3.6V lithium battery included; user replaceable
Battery Life: 10 years typical, dependent upon frequency and duty cycle
Time Accuracy: ±1 minute/month (at 20oC/68oF, stand alone data logging)
Computer Interface: USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32 and 64-bit)
Operating Environment: -15 to 40oC (5 to 104oF), 10 to 90% RH non-condensing
Dimensions (Data Logger): 36 x 56 x 16 mm (1.4 x 2.2 x 0.6")
Current Switch: 54 x 89 x 26 mm (2.1 x 3.5 x 1.0")
Weight: 113 g (4 oz)
With OM-CP-IFC200: 255 g (9 oz)
Materials: ABS plastic

产品编号 产品描述


OM-CP-MOTOR101A-KIT Machinery on/off status data logging system, includes data logger, current switch and OM-CP-IFC200 WINOOWs software and USB interface cable

OM-CP-MOTOR101A Machinery on/off status data logging system, includes data logger, current switch; (OM-CP-IFC200 WINOOWs software and USB interface cable sold separately)

OM-CP-IFC200 WINOOWs software and 1.8 m (6') USB interface cable

OM-CP-BAT105 Replacement battery



产品编号 产品描述


OM-CP-MOTOR101A-KIT

OM-CP-MOTOR101A
OM-CP-IFC200
OM-CP-BAT105

OM-CP-MOTOR101A
OM-CP-MOTOR101A-KIT


OM-CP-IFC200
