MWTC-REC6-V2-868详细介绍

MWTC-REC6-V2-868

小型便携式热电偶连接器和数据记录器
MWTC-D Series

1年保修 新产品! CE

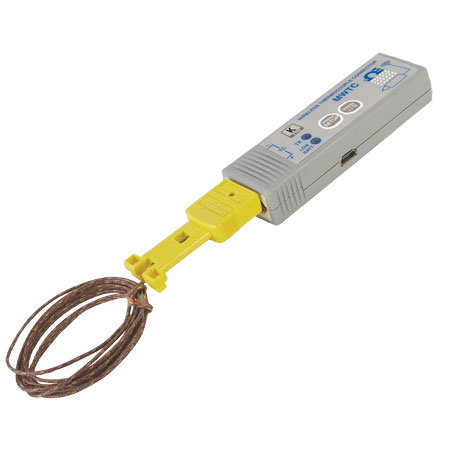

MWTC-D Series:小型便携式热电偶连接器和数据记录器


超过65000的过程中的温度数据记录
J，K，T，E，R，B，C，可用的，和N型热电偶校准
内置的冷端补偿和线性化
在上电记录，或在一个预先确定的时间和日期
传送的过程中，环境温度，和电池信息传输到mwtc-rec接收机
内置的USB连接器单元的配置和数据下载
从“AAA”碱性电池尺寸1.5V锂或权力，或3.6V锂电池
免费的应用软件将你的电脑变成一个多通道记录仪或数据记录器

The new MWTC Smart的智能连接器系列紧凑，电池供电的热电偶连接器，可以发送和/或记录温度数据恢复到交配接收机高达9000万（300）离开。初始设置期间，连接器可以被设置为发送，传输和记录，或记录不在预先设定的时间间隔。录音可以在上电，或在一个预先设定的时间和日期。多个连接器（48通道）可以发送一个mwtc-rec接收机。存储的数据可以很容易下载到PC通过USB连接直接。用户可以记录65400过程中的温度数据点，或32700，过程和环境温度数据ppoints。

规格：
Thermocouple Types: (Factory Set) J, K, T, E, R, S, B, C, N
Thermocouple Measurement Range:
J: -100 to 760°C (-148 to 1400°F)
K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
Measurement Accuracy (Greater of):
J, K: ±0.5% of rdg or ±1.0°C (1.8°F)
T, E, N: ±0.5% of rdg or ±2.0°C (3.6°F)
R, S, B, C: ±0.5% of full scale
Measurement Resolution: 1°C/1°F
Cold Junction Compensation: -10 to 70°C (14 to 158°F)
Thermocouple Connection: Patented universal female accepts both standard male (OSTW Series) or miniature male (SMPW Series) mating connector
Operating Environment: -10 to 70°C (14 to 158°F)
Computer Interface: USB (one interface cable included)
Logging Start: At Power-up or Pre-set Time and Date
Recorded Memory: 65,400 Process Temperature readings or 32,700 Process and Ambient Temperature readings
Logging/Transmit Sample Rate: Programmable from 1 sample/2 minutes to 1 sample/2 seconds
Radio Frequency: ISM 915 MHz or ISM 868 MHz
RF Output Power: 7 dBm (5 mW)
Range of RF Link:
Outdoor Line of Sight: Up to 90 m (300 ft)
Indoor/Urban: Up to 39 m (130 ft)
Software: TC Central (WINOOWs XP, Vista, or 7 operating system compatible)
Battery: One 1.5 V lithium, 1200 mAh capacity (AAA) (included), also works with 1.5V alkaline and 3.6V lithium
Battery Life (Typical): 7.2 months at 1 sample/minute reading rate @25°C (77°F)
Data Transmitted to Receiver: Thermocouple, connector ambient temperature, and battery voltage reading
Dimensions: 82.5 L x 25.4 W x 15.2 mm H (3.25 x 1 x 0.6 in)
Enclosure: Plastic (Nylon)
Note: Because of transmission frequency regulations, these products may only be used in the United States and Canada (915 MHz models) or Europe (868 MHz models).

产品型号 产品描述

Wireless Connectors, 915 MHz (for USA/Canada only)

MWTC-D-K-915 Wireless data logging thermocouple connector, type K

MWTC-D-J-915 Wireless data logging thermocouple connector, type J

MWTC-D-T-915 Wireless data logging thermocouple connector, type J

MWTC-D-E-915 Wireless data logging thermocouple connector, type E


Wireless Receivers, 915 MHz (for USA/Canada only)

MWTC-REC1-915 48-channel Compact Wireless Receiver for MWTC Wireless Connectors, 1.8 m (6 ft) cable

MWTC-REC5-915 48-channel Miniature Wireless Receiver for MWTC-D Wireless Connectors/Data Loggers with direct attachment

MWTC-REC6-V1-915 1-channel Miniature Wireless Receiver for MWTC Wireless Connectors with 0-5 V output

MWTC-REC6-V2-915 1-channel Miniature Wireless Receiver for MWTC Wireless Connectors with 0-10 V output


Wireless Connectors, 868 MHz (for Europe only)

MWTC-D-K-868 Wireless data logging thermocouple connector, type K

MWTC-D-J-868 Wireless data logging thermocouple connector, type J

MWTC-D-T-868 Wireless data logging thermocouple connector, type T

MWTC-D-E-868 Wireless data logging thermocouple connector, type E


Wireless Receivers, 868 MHz (for Europe only)

MWTC-REC1-868 48-channel Compact Wireless Receiver for MWTC Wireless Connectors, 1.8 m (6 ft) cable

MWTC-REC5-868 48-channel Miniature Wireless Receiver for MWTC-D Wireless Connectors/Data Loggers with direct attachment

MWTC-REC6-V1-868 1-channel Miniature Wireless Receiver for MWTC Wireless Connectors with 0-5 V output

MWTC-REC6-V2-868 1-channel Miniature Wireless Receiver for MWTC Wireless Connectors with 0-10 V output

MWTC-REC6-V2-868
