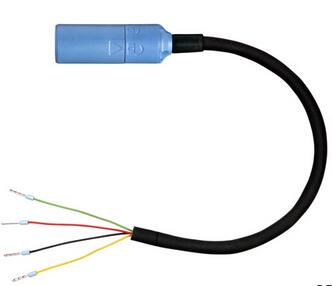

CYK10保证Memosens传感器和变送器的完全防水连接。它的电感耦合保证了变送器和介质的电隔离，不会腐蚀。完全安全的信号传输可以防潮和潜在干扰。
完全防水连接（防护等级IP 68）
无腐蚀连接
由于变送器和介质的电隔离，阻断了潜在的干扰
Memosens数字电缆CYK10可用于Memosens系统，测量以下参数：
pH/ORP
溶解氧（色谱法）
电导率
反渗透
测量原理
ORP /氧化还原电极
应用
Measuring cable for contactless, inductive, digital transmission of measurement signals.
安装
Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter.
特点
Inductive, digital transmission of measurement signals and energy.
Not influenced by moisture, EMC-fields and corrosion.
设计
Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
No open contacts, resistant against humidity.
材料
PEEK
尺寸
Diameter: 6,3 mm / 0,25"
Cores: 2x2 cores, twisted paires
Length: up to approx. 100 m/328 ft
过程温度
-20... 135°C
温度传感器
For digital sensors with inductive plug-head with and without temperature sensor.
防爆认证
ATEX II 1G Ex ia IIC T3/T4/T6
FM, CSA IS Cl.1 Div 1 Gr. A-D
ATEX, NEPSI II 3G Ex nL IIC
TIIS
其他认证
Also available as TüV approved SIL version.
