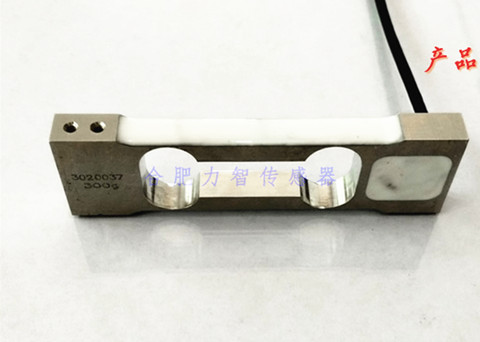

出厂时经过四角调整，保证其在规定的受载平面内各点输出一致，适用于固体、液体流动秤、人体秤、配料秤、案秤及精细化工配比秤。
|
Rated load |
额定载荷 |
0-3KG |
|
sensitivity |
灵敏度 |
1.0-2.0mv/v |
|
Optional transmit |
可加变送输出 |
0-5V 、0-10V、 4-20MA、RS485/232 |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.3% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Repeatability |
重复性 |
±0.2% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.02% of applied output/oC |
|
Temp. effect on zero |
零点温漂 |
≤0.02% of applied output/oC |
|
Safe Temp. Range |
可用温度范围 |
-20oC to + 60oC |
|
Temp. Compensated |
温度补偿范围 |
-10oC to + 40oC |
|
Safe Overload |
安全载荷 |
120% |
|
limit load |
极限载荷 |
150% |
|
Input Impedance |
输入阻抗 |
380 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
最大激励电压 |
15V DC/AC |
|
Frequency response |
响应频率 |
≤20KHZ |
