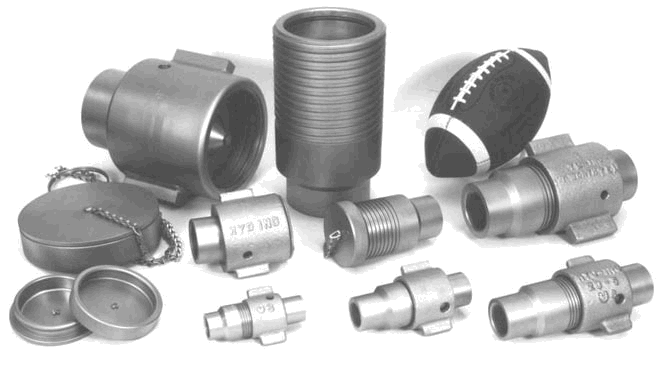

5TV COUPLINGS Hydraulics系列液压快速接头

Field of Application

This full line of thread to connect, double shut-off valve couplings is rated to operate at up to 5,000 psi. They are made rugged to extend useful life. They are
a popular choice for high energy fluid power systems.

Operating Limits:

5,000 P.S.I. operating pressure - all sizes
20,000 P.S.I. minimum burst - coupled
Vacuum to 28" Hg
Temperature range -30 to +250 F - Standard Buna Seals

Design Features:

Excellent flow characteristics for continuous duty applications. Click here
for Flow data
High strength steel poppet guides prevent break up and washout of coupling
valveing during high surge and shock conditions.
Flat crested stub-acme threads and all steel construction withstand storage
and rig-up damage.
Protective treatment equal to industry stanards for SAE steel hose fittings
Various port options available, Female NPTF, Female SAE O-Ring Port, Female
BSPP

Generally stated, these couplings simplify the rigging of long length, large bore flex hose assemblies. They are designed to operating in rugged environments
under extreme pressures as well as structural and system induced surges and shockloads. Valve construction permits assembly against pressure created by
thermal expansion of fluid in the hose bore and make up is facilitated by a high strength hammer lug nut.

On-line Product Catalog
CatalogDeSCRJPTionDownload/View
HC-102Fluid Conducting Quick Disconnect Coupling
Self Sealing
5,000 PSI
Sizes: 3/4 to 3 Inch

Because of technological progress and product improvements, all design and dimensional data shown in catalog HC-102 is subject to change without notice. Technical information has been prepared from actual test results under controlled environmental conditions and data is considered to be reliable, but no responsibility can be assumed for its accuracy under varied field conditions.

WARNING!
Hydraulics, Inc. 5TV & 6TV couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. 5TV & 6TV valved and thread-to-connect couplings and nipples.

WARNING!
To extend functional service of 5TV & 6TV couplings, use only genuine Hydraulics, Inc. replacement components.

Fluid Conducting Swivel Joints
Self Sealing Quick Disconnect Couplings

PART NO.
5TV-CN-12 5TV-N-12 5TV-C-12
5TV-DP-12 5TV-DC-12
5TV-VA-12 5TV-NS-12
5TV-CN-16 5TV-N-16 5TV-C-16
5TV-DP-16 5TV-DC-16 5TV-VA-16 5TV-NS-16
5TV-CN-20 5TV-N-20 5TV-C-20 5TV-DP-20
5TV-DC-20 5TV-VA-20 5TV-NS-20
5TV-CN-24 5TV-N-24
5TV-C-24 5TV-DP-24
5TV-DC-24 5TV-VA-24
5TV-NS-24
5TV-CN-32 5TV-N-32
5TV-C-32 5TV-DP-32
5TV-DC-32 5TV-VA-32 5TV-NS-32
5TV-CN-40 5TV-N-40
5TV-C-40 5TV-DP-40
5TV-DC-40 5TV-VA-40
5TV-NS-40
5TV-CN-48 5TV-N-48
5TV-C-48 5TV-DP-48
5TV-DC-48 5TV-VA-48 5TV-NS-48
5TV-C-20 或5TV-N-20
5TV-C-24-G
DeSCRJPTion : HIGH PRESSURE WINGSTYLE FEMALE THREAD COUPLER

High Pressure Wingstyle Coupler
Part
Number Body
Size Thread
Size Body
Material Wrench
Flats
5TV-C-12 3/4" 3/4"-14 NPTF STEEL YES
5TV-C-12-G 3/4" G3/4" BSPP STEEL NO
5TV-C-16 1" 1" - 11-1/2 NPTF STEEL YES
5TV-C-16-G 1" G1" BSPP STEEL NO
5TV-C-20 1-1/4" 1-1/4" - 11-1/2 NPTF STEEL NO
5TV-C-20-G 1-1/4" G1-1/4" BSPP STEEL NO
5TV-C-24 1-1/2" 1-1/2" - 11-1/2 NPTF STEEL NO
5TV-C-24-G 1-1/2" G1-1/2" BSPP STEEL NO
5TV-C-32 2" 2" - 11-1/2 NPTF STEEL NO
5TV-C-32-G 2" G2" BSPP STEEL NO
5TV-N-12 5TV-N-12-G 5TV-N-16 5TV-N-16-G
5TV-N-20 5TV-N-20-G 5TV-N-24 5TV-N-24-G
5TV-N-32 5TV-N-32-G

REPAIR PARTS PART NO.

5TV-CN-12 4.86 3.27 2.84 3.00 .-14 2
5TV-CN-16 6.05 4.18 3.35 3.75 1-11. 5
5TV-CN-20 7.75 5.35 4.42 4.50 1.-11. 9
5TV-CN-24 8.62 5.97 5.02 4.75 1.-11. 14
5TV-CN-32 10.00 7.05 6.07 6.25 2-11. 28
5TV-CN-40 12.00 8.70 6.94 8.00 2.-8 65
5TV-CN-48 14.81 10.60 9.25 9.75 3-8 148

COUPLER NIPPLE DUST PLUG DUST CAP
