Aeroquip快速接头
Aeroquip Quick Disconnect Couplings

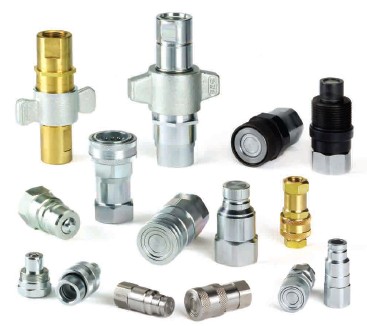

Aeroquip Quick Disconnect Couplings

50多年来，伊顿继续制造和供应高性能的快速断开接头为全球范围内的许多不同的细分市场，包括农业，建筑，交通，消防和救援等等。伊顿的质量和性能没有受到损害时，工程和制造其全系列的快速断开接头。从传统的行业标准定制的联轴器为新兴市场和新的先进技术的下一代，伊顿继续提供快速断开连接的解决方案来满足您的需求。美国Aeroquip快速接头、高压管,伊顿集团Aeroquip公司，主营各种液压流体传送和连结产品，其制造技术全球领先。Aeroquip由Peter F.Hurst先生创立于1940年， Aeroquip在其60多年的历史中，一直按照航天军工的要求生产各种流体连接件，其产品被广泛地应用于各个行业中。在第二次世界大战期间， Aeroquip被美国空军指定为独家胶管总成供应商，Aeroquip商标上的飞行翅膀由此而来。 Aeroquip公司于1999年成为伊顿集团成员之一。其相关产品已广泛应用于空军、民航、海洋船舶、军用水面水下舰艇、工程机械、工业冶金等领域。For over 50 years, Eaton has continued to manufacture and supply the highest performing quick disconnect couplings globally for many different market segments including agriculture, construction, transportation, and fire and rescue just to name a few. Eaton’s quality and performance have never been compromised when it comes to engineering and manufacturing its full line of quick disconnect couplings.From traditional industry standards to custom couplings for the next generation of emerging markets and new advanced technologies, Eaton continues to provide quick disconnect coupling solutions to meet your demands.

Fluid Transfer and Hydraulic
FD35: 10,000 psi Arc Latch
FD45 (Steel): ISO 7241/1 Series B Interchange
FD45 (Brass): ISO 7241/1 Series B Interchange
FD45 (Stainless Steel): ISO 7241/1 Series B Interchange
FD48: Parker Bruning SM-250 Interchange
FD49: NFPA Standard T3.20.15 HTMA Interchange
5100: Thread to Connect
5600: ISO 7241/1 Series A Interchange
FD86: Thread to Connect 5,000 psi Dry Break – High Impulse 35
FD89: ISO 16028 Interchange
FD89 - 2000: 316 Stainless Steel ISO 16028 Interchange
FD96: High Pressure Thread to Connect Flush Face (Connect under Pressure)
FD99: High Pressure Flush Face ISO 16028 Interchange

Hydraulic Farm
FD72: Connect Under Pressure – Farm ISO 5675 Interchange
FD70 & 76: Male Tip – Farm ISO 5675 Interchange

Diagnostics
FD15: Oil Sampling Valve
FD90: Diagnostic Coupling SAEJ1502
Pressure Gauge Kit: FF14802

Special Applications
FD14: Oil Drain Coupling
FD31: Enerpac Interchange
FD69: 10,000 psi Water Blast
FD83: Full Flow Dual Interlock

Refrigerant
5400: Low Air Inclusion Refrigerant

Air Couplings
FD40: MIL-C-4109 Interchange
FD41: ARO 210 Interchange 69
FD43: MIL-C-4109 Interchange

Aeroquip Fluid Transfer and Hydraulic
Aeroquip FD35: 10,000 psi Arc Latch
Aeroquip FD45 (Steel): ISO 7241/1 Series B Interchange
Aeroquip FD45 (Brass): ISO 7241/1 Series B Interchange
Aeroquip FD45 (Stainless Steel): ISO 7241/1 Series B Interchange
Aeroquip FD48: Parker Bruning SM-250 Interchange
Aeroquip FD49: NFPA Standard T3.20.15 HTMA Interchange
Aeroquip 5100: Thread to Connect
Aeroquip 5600: ISO 7241/1 Series A Interchange
Aeroquip FD86: Thread to Connect 5,000 psi Dry Break – High Impulse
Aeroquip FD89: ISO 16028 Interchange
Aeroquip FD89 - 2000: 316 Stainless Steel ISO 16028 Interchange
Aeroquip FD96: High Pressure Thread to Connect Flush Face (Connect under Pressure)
Aeroquip FD99: High Pressure Flush Face ISO 16028 Interchange

Aeroquip Hydraulic Farm
Aeroquip FD72: Connect Under Pressure – Farm ISO 5675 Interchange
Aeroquip FD70 & 76: Male Tip – Farm ISO 5675 Interchange

Aeroquip Diagnostics
Aeroquip FD15: Oil Sampling Valve
Aeroquip FD90: Diagnostic Coupling SAEJ1502
Aeroquip Pressure Gauge Kit: FF14802

Aeroquip Special Applications
Aeroquip FD14: Oil Drain Coupling
Aeroquip FD31: Enerpac Interchange
Aeroquip FD69: 10,000 psi Water Blast
Aeroquip FD83: Full Flow Dual Interlock

Aeroquip Refrigerant
Aeroquip 5400: Low Air Inclusion Refrigerant

Aeroquip Air Couplings
Aeroquip FD40: MIL-C-4109 Interchange
Aeroquip FD41: ARO 210 Interchange
Aeroquip FD43: MIL-C-4109 Interchange
Aeroquip Competitor Cross Reference
FD45-1003-02-02 COUPLER - ISO B - STEEL HNV-18-NPT-F
FD45-1002-02-02 NIPPLE - ISO B - STEEL HNV-18-NPT-M
FD45-1003-04-04 COUPLER - ISO B - STEEL HNV-14-NPT-F
FD45-1002-04-04 NIPPLE - ISO B - STEEL HNV-14-NPT-M
FD45-1003-06-06 COUPLER - ISO B - STEEL HNV-38-NPT-F
FD45-1002-06-06 NIPPLE - ISO B - STEEL HNV-38-NPT-M
FD45-1003-08-10 COUPLER - ISO B - STEEL HNV-12-NPT-F
FD45-1002-08-10 NIPPLE - ISO B - STEEL HNV-12-NPT-M
FD45-1003-12-12 COUPLER - ISO B - STEEL HNV-34-NPT-F
FD45-1002-12-12 NIPPLE - ISO B - STEEL HNV-34-NPT-M
FD45-1003-16-16 COUPLER - ISO B - STEEL HNV-1-NPT-F
FD45-1002-16-16 NIPPLE - ISO B - STEEL HNV-1-NPT-M
FD45-1101-04-04 COUPLER - ISO B - BRASS HNV-14-NPT-F-5
FD45-1086-04-04 NIPPLE - ISO B - BRASS HNV-14-NPT-M-5
FD45-1101-06-06 COUPLER - ISO B - BRASS HNV-38-NPT-F-5
FD45-1086-06-06 NIPPLE - ISO B - BRASS HNV-38-NPT-M-5
FD45-1101-08-10 COUPLER - ISO B - BRASS HNV-12-NPT-F-5
FD45-1086-08-10 NIPPLE - ISO B - BRASS HNV-12-NPT-M-5
FD45-1101-12-12 COUPLER - ISO B - BRASS HNV-34-NPT-F-5
FD45-1086-12-12 NIPPLE - ISO B - BRASS HNV-34-NPT-M-5
FD45-1101-16-16 COUPLER - ISO B - BRASS HNV-1-NPT-F-5
FD45-1086-16-16 NIPPLE - ISO B - BRASS HNV-1-NPT-M-5
FD45-1005-04-04 COUPLER - ISO B - STAINLESS HNV-14-NPT-F-2
FD45-1004-04-04 NIPPLE - ISO B - STAINLESS HNV-14-NPT-M-2
FD45-1005-06-06 COUPLER - ISO B - STAINLESS HNV-38-NPT-F-2
FD45-1004-06-06 NIPPLE - ISO B - STAINLESS HNV-38-NPT-M-2
FD45-1005-08-10 COUPLER - ISO B - STAINLESS HNV-12-NPT-F-2
FD45-1004-08-10 NIPPLE - ISO B - STAINLESS HNV-12-NPT-M-2
FD45-1005-12-12 COUPLER - ISO B - STAINLESS HNV-34-NPT-F-2
FD45-1004-12-12 NIPPLE - ISO B - STAINLESS HNV-34-NPT-M-2
FD45-1005-16-16 COUPLER - ISO B - STAINLESS HNV-1-NPT-F-2
FD45-1004-16-16 NIPPLE - ISO B - STAINLESS HNV-1-NPT-M-2
FD89-1001-04-04 COUPLER - FLAT FACE - ISO 16028 2FFI-14-NPT-F
FD89-1002-04-04 NIPPLE - FLAT FACE - ISO 16028 2FFI-14-NPT-M
FD89-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD89-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD89-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD89-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD89-1001-08-08 COUPLER - FLAT FACE - ISO 16028 2FFI-12-NPT-F
FD89-1002-08-08 NIPPLE - FLAT FACE - ISO 16028 FFI-12-NPT-M
FD89-1001-12-08 COUPLER - FLAT FACE - ISO 16028 2FFI12-34NPT-F
FD89-1002-12-08 NIPPLE - FLAT FACE - ISO 16028 FFI12-34NPT-M
FD89-1001-12-12 COUPLER - FLAT FACE - ISO 16028 2FFI-34-NPT-F
FD89-1002-12-12 NIPPLE - FLAT FACE - ISO 16028 FFI-34-NPT-M
FD89-1001-16-16 COUPLER - FLAT FACE - ISO 16028 2FFI-1-NPT-F
FD89-1002-16-16 NIPPLE - FLAT FACE - ISO 16028 FFI-1-NPT-M
5100-S5-12B COUPLER - WING NUT - BRASS FB-12/34-NPT-F5
5100-S2-12B NIPPLE - WING NUT - BRASS FB-12/34-NPT-M5
5100-S5-16B COUPLER - WING NUT - BRASS FB-16/1-NPT-F5
5100-S2-16B NIPPLE - WING NUT - BRASS FB-16/1-NPT-M5
5100-S5-20B COUPLER - WING NUT - BRASS FB-20/114-NPT-F5
5100-S2-20B NIPPLE - WING NUT - BRASS FB-20/114-NPT-M5
150-22-16 MONUTING FLANGE FB-16-FL
150-22-20 MOUNTING FLANGE FB-20-FL
FD42-1001-04-04 COUPLER - AG INTERCHANGE - STEEL NV-14-NPT-F
FD42-1002-04-04 NIPPLE - AG INTERCHANGE - STEEL NV-14-NPT-M
FD71-1001-08-10 COUPLER - PUSH PULL - STEEL PV-12-NPT-F
FD76-1002-08-10 NIPPLE - AG INTRCHANGE - STEEL 2NV-12-NPT-M
FD76-1010-08-10 NIPPLE - AG INTERCHANGE - STEEL 2NV12-12SAE-M
5601-4-4S COUPLER - ISO A - STEEL ANV-14-NPT-F
5602-4-4S NIPPLE - ISO A - STEEL ANV-14-NPT-M
5601-6-6S COUPLER - ISO A - STEEL ANV-38-NPT-F
5602-6-6S NIPPLE - ISO A - STEEL ANV-38-NPT-M
5601-8-10S COUPLER - ISO A - STEEL NV-12-NPT-F
5602-8-10S NIPPLE - ISO A - STEEL NV-12-NPT-M
5601-12-10S COUPLER - ISO A - STEEL MV-34-NPT-F
5602-12-10S NIPPLE - ISO A - STEEL 2MV-34-NPT-M
5601-12-12S COUPLER - ISO A - STEEL ANV-34-NPT-F
5602-12-12S NIPPLE - ISO A - STEEL ANV-34-NPT-M
5601-16-16S COUPLER - ISO A - STEEL ANV-1-NPT-F
5602-16-16S NIPPLE - ISO A - STEEL ANV-1-NPT-M
5608-6-6S COUPLER - ISO A - STEEL ANV38-38SAE-F
5610-6-6S NIPPLE - ISO A - STEEL ANV38-38SAE-M
5608-8-10S COUPLER - ISO A - STEEL NV12-12SAE-F
5610-8-10S NIPPLE - ISO A - STEEL NV12-12SAE-M
5608-10-10S COUPLER - ISO A - STEEL NV12-58SAE-F
5610-10-10S NIPPLE - ISO A - STEEL NV12-58SAE-M
5608-12-12S COUPLER - ISO A - STEEL ANV34-34SAE-F
5610-12-12S NIPPLE - ISO A - STEEL ANV34-34SAE-M
5608-16-16S COUPLER - ISO A - STEEL ANV1-1SAE-F
5610-16-16S NIPPLE - ISO A - STEEL ANV1-1SAE-M
FD49-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD49-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD49-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD49-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD49-1005-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-F
FD49-1004-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-M
FD90-1021-02-04 COUPLER DIAGNOSTIC DF-04-18NPT-F
FD90-1034-02-04 NIPPLE DIAGNOSTIC DF-04-18NPT-M
FD90-1021-04-04 COUPLER DIAGNOSTIC DF-04-14NPT-F
FD90-1034-04-04 NIPPLE DIAGNOSTIC DF-04-14NPT-M
FD90-1012-04-04 NIPPLE DIAGNOSTIC DF-04-1/14NPT-M
FD90-1044-04-04 NIPPLE DIAGNOSTIC DF-04-1/14SAE-M
FD90-1044-05-04 NIPPLE DIAGNOSTIC DF-04-1/516SAE-M
FD90-1044-06-04 NIPPLE DIAGNOSTIC DF-04-1/38SAE-M
FD90-1046-06-04 NIPPLE DIAGNOSTIC DF-04-1/1415-M
5400-S5-4 COUPLER - REFIGERATION RF-04-FN
5400-S2-4 NIPPLE - REFIGERATION RF-04-MN
5400-S5-8 COUPLER - REFIGERATION RF-08-FN
5400-S2-8 NIPPLE - REFIGERATION RF-08-MN
5400-S5-12 COUPLER - REFIGERATION RF-12-FN
5400-S2-12 NIPPLE - REFIGERATION RF-12-MN
