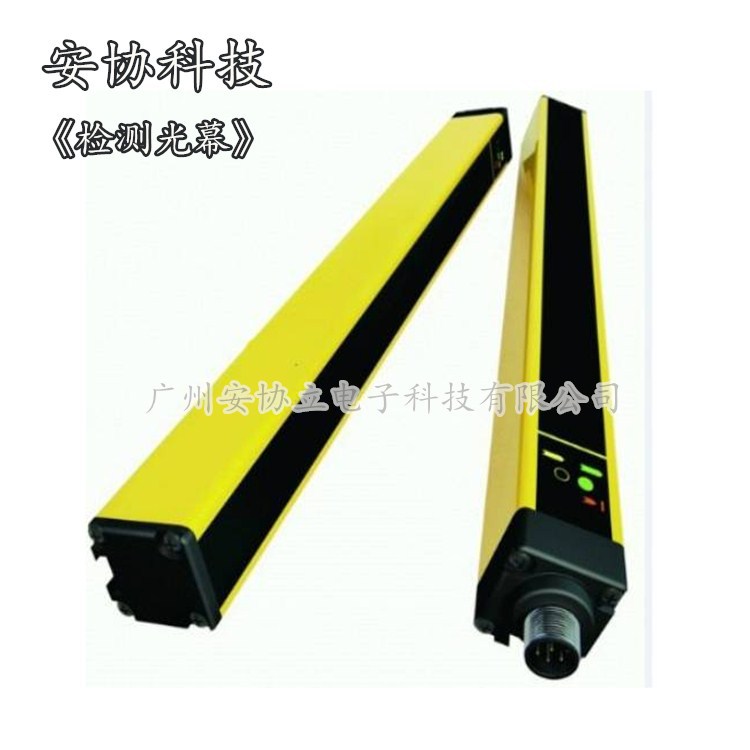

厂家供应车辆分离光栅光幕HE1210安协科技传感器
产品介绍Product introduction：

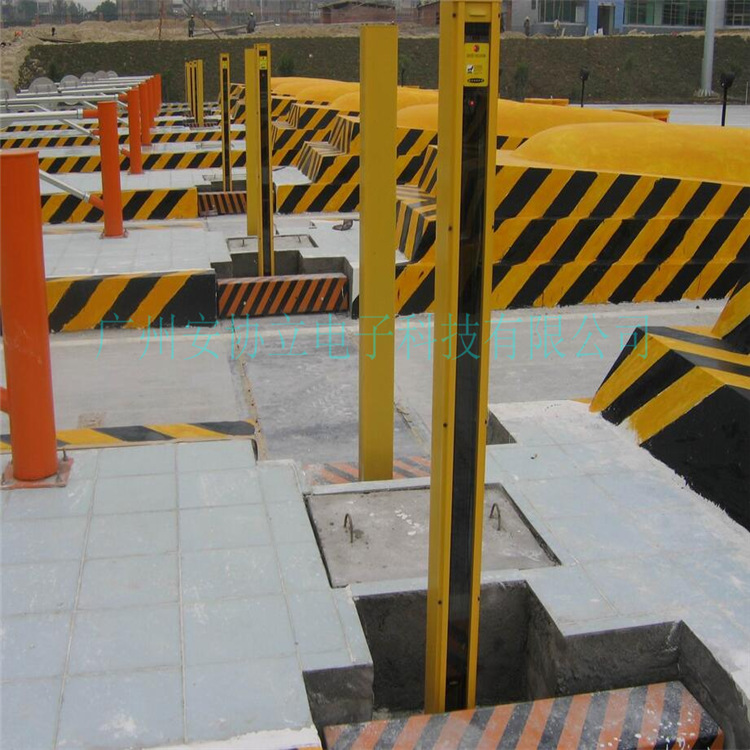

检测测量光栅广泛应用于物流分离、检测外形尺寸、检测距离、落料等。采用标准MODBUS协议与上位机进行通讯，精度高、性能好。可以根据客户需求定制产品。
Inspection measurement separation grating is widely used in logistics, overall dimensions, detection distance, blanking and so on. Using standard MODBUS protocol to communicate with the upper machine, high precision and good performance. Can be customized products according to customer's requirements.
产品特点Product features
Product features
1.超长检测距离且易于对准;
2.用于高精度的检测和测量;
3.具备RS485或RS232通讯功能，采用标准MODBUS协议与上位机进行通讯；
4.模拟量输出0~5V/0~10V/4~20mA;
1. Long detection distance and easy alignment;
2. Used for high precision detection and measurement;
3. With RS485 and RS232 communication function, using the standard MODBUS protocol to communicate with the upper machine;
4. Analog 0 ~ 5 v / 0 ~ 10 v / 4 ~ 20 ma;

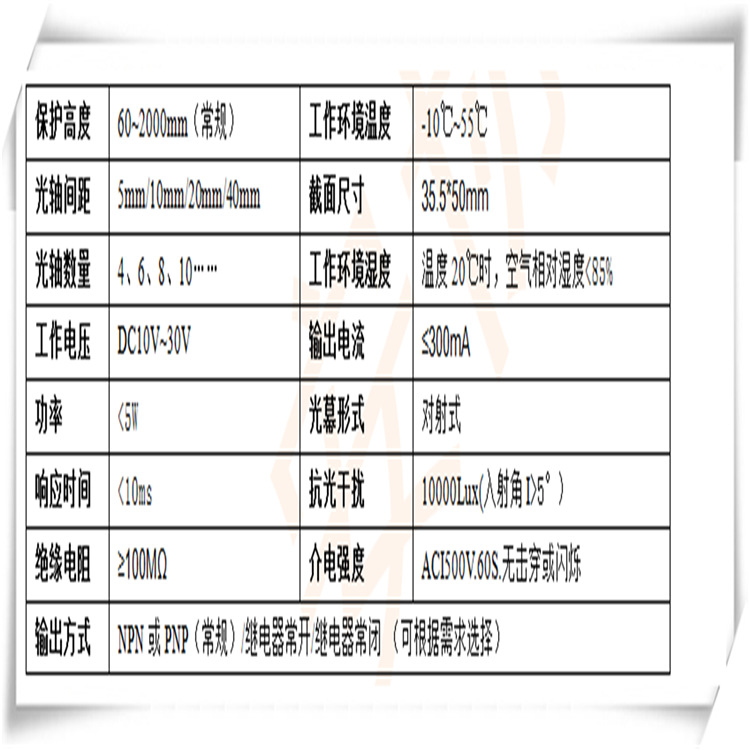

产品技术参数：
接线图The wiring diagram：
HD列产品选型表(单位数为mm) HD series product selection table (unit mm)
|
光轴间距（1.25mm) |
|
光轴间距（2.5mm) |
||||||||||
|
光束数量 |
保护高度 |
外壳高度 |
规格型号 |
|
光束数量 |
保护高度 |
外壳高度 |
规格型号 |
||||
|
32 |
38.75 |
173.75 |
HD32125 |
16 |
37.5 |
172.5 |
HD16025 |
|||||
|
64 |
78.75 |
213.75 |
HD64125 |
32 |
77.5 |
212.5 |
HD32025 |
|||||
|
96 |
118.75 |
253.75 |
HD96125 |
48 |
117.5 |
252.5 |
HD48025 |
|||||
|
128 |
158.75 |
293.75 |
HD128125 |
64 |
157.5 |
292.5 |
HD64025 |
|||||
|
160 |
198.75 |
333.75 |
HD160125 |
80 |
197.5 |
332.5 |
HD80025 |
|||||
|
192 |
238.75 |
373.75 |
HD192125 |
96 |
237.5 |
372.5 |
HD96025 |
|||||
|
224 |
278.75 |
413.75 |
HD224125 |
112 |
277.5 |
412.5 |
HD112025 |
|||||
|
256 |
318.75 |
453.75 |
HD256125 |
128 |
317.5 |
452.5 |
HD128025 |
|||||
|
288 |
358.75 |
493.75 |
HD288125 |
144 |
357.5 |
492.5 |
HD144025 |
|||||
|
320 |
398.75 |
533.75 |
HD320125 |
160 |
397.5 |
532.5 |
HD160025 |
|||||
|
352 |
438.75 |
573.75 |
HD352125 |
176 |
437.5 |
572.5 |
HD176025 |
|||||
|
384 |
478.75 |
613.75 |
HD384125 |
192 |
477.5 |
612.5 |
HD192025 |
|||||
|
416 |
518.75 |
653.75 |
HD416125 |
208 |
517.5 |
652.5 |
HD208025 |
|||||
|
448 |
558.75 |
693.75 |
HD448125 |
224 |
557.5 |
692.5 |
HD224025 |
|||||
|
480 |
598.75 |
733.75 |
HD480125 |
240 |
597.5 |
732.5 |
HD240025 |
|||||
|
|
|
|
|
|
|
|
|
|||||
|
|
||||||||||||
|
