概述
一是用连接金具将悬式绝缘子与悬垂线夹组成悬垂串，用它悬挂导线或直线在杆塔上；二是用连接金具将悬式绝缘子与耐张线夹组成耐张串并用它将导线固定在非直线杆塔上
| 通用设计型号 | 规格型号 | 主要尺寸(mm) |
标称破坏
载荷(kN)
|
参考重量
（KG)
|
||||
| φ | B | H | D | D1 | ||||

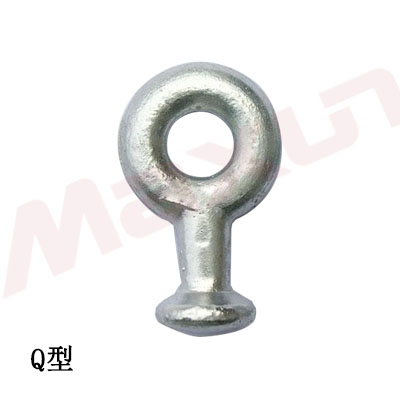

| Q-7 | 22 | 16 | 50 | 33.3 | 17 | 70 | 0.3 | |
| QP-7 | 20 | 16 | 50 | 33.3 | 17 | 70 | 0.3 | |
| QP-10 | 20 | 16 | 50 | 33.3 | 17 | 100 | 0.3 | |
| QP-12 | 24 | 16 | 60 | 33.3 | 17 | 120 | 0.5 | |
| QP-12G | 24 | 17 | 60 | 33.3 | 17 | 120 | 0.4 | |
| QP-16 | 26 | 20 | 60 | 41 | 21 | 160 | 0.5 | |
| QP-20 | 26 | 18 | 80 | 49 | 25 | 200 | 1 | |
| QP-21D | 30 | 24 | 70 | 41 | 21 | 210 | 0.9 | |
| QP-30 | 39 | 28 | 80 | 49 | 25 | 300 | 1.1 | |
| QP-0750 | 20 | 16 | 50 | 33.3 | 17 | 70 | 0.3 | |
| QP-1050 | 20 | 16 | 50 | 33.3 | 17 | 100 | 0.3 | |
| QP-1260 | 24 | 16 | 60 | 33.3 | 17 | 120 | 0.4 | |
| QP-1660 | 26 | 18 | 60 | 41 | 21 | 160 | 0.5 | |
| QP-2180 | 26 | 20 | 80 | 41 | 21 | 210 | 0.7 | |
| QP-2580 | 30 | 24 | 80 | 49 | 25 | 250 | 1 | |
| QP-3280 | 33 | 28 | 80 | 49 | 25 | 320 | 1.2 | |
