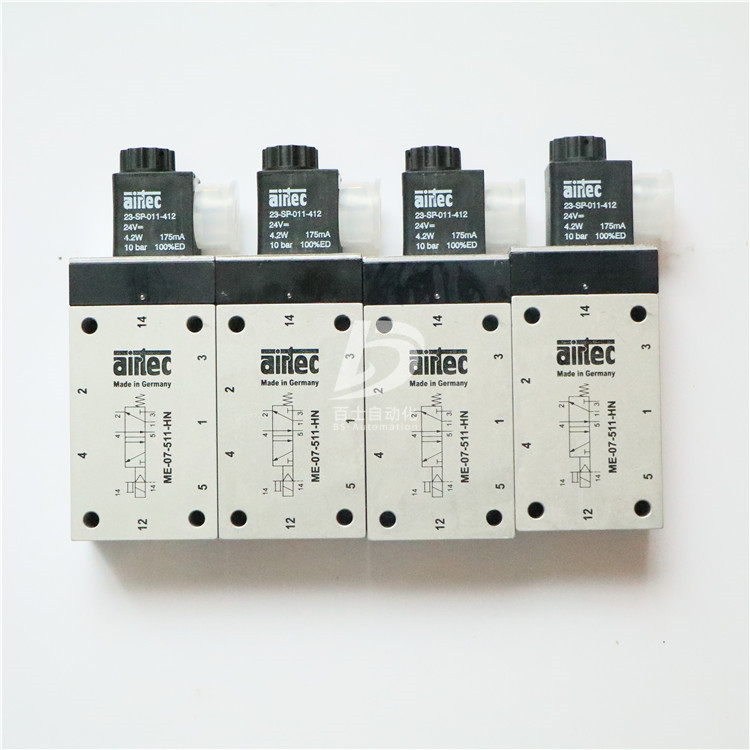

爱尔泰克二位五通电磁阀ME-07-520-HN-412

airtec单向滚轮杠杆式阀EL-25-310
设计与功能
型号EL-25-310:进气口1必须作为进气用。
型号EL-18-310和EL-18-510:所有进气口可互换
用于真空(- 0.95…12 bar/-14…175 psi)．的订货号：EL-18-310-Q和EL-18-510-Q

订货号         EL-25-310   EL-18-310   EL-18-510
型号与功能     3/2弹簧复位      5/2弹簧复位
接口           M5 (10/32 UNF)   G l/8
通径           2mm    4 mm
流量           80 Nl/min (0.081 Cv)     320 Nl/min (0.325 Cv)
压力范围       0…12 bar(o…175 psi)
驱动力(6 bar时)8N    17N   18N
温度范围厂        …+ 70 0C(+14。F…+158。F)
材料           阀体：铝（阳极氧化），内部零件：铝，黄铜，不锈钢，滚轮：POM
               密封圈:NBR     密封圈:NBR and POM
               控制杆:黄铜    控制杆:铝（阳极氧化）和黄铜
重量           0.044 kg (0.097 lb.)   0.095 kg (0.209 lb.)  0.118 kg (0.260 lb.)


单向滚轮杠杆式阀
EL-25-310
EL-18-310
EL-18-310-Q
EL-18-510
EL-18-510-Q
EL-25-310
EL-18-310
EL-18-310-Q
EL-18-510
EL-18-510-Q
airtec单向滚轮杠杆式阀EL-25-310
手动阀带弹簧复位
HF-18-310
HF-18-310-Q
HF-14-310,
HF-14-310-Q
HF-18-510
HF-18-510-Q
HF-14-510
HF-14-510-Q
HF-18-530,
HF-18-530-Q
HF-14-530,HF-14-530-Q
HF-18-533,HF-18-533-Q
HF-14-533,HF-14-533-Q
airtec单向滚轮杠杆式阀EL-25-310

带锁定装置
HR-18-320
HR-18-320-Q
HR-14-320
HR-14-320-Q
HR-18-520
HR-18-520-Q
HR-14-520
HR-14-520-Q
HR-18-530
HR-18-530-
HR-18-533
HR-18-533-Q
HR-14-533,
HR-14-533-Q
airtec单向滚轮杠杆式阀EL-25-310
手动阀
HF-18-310,
HF-18-310-Q,
HR-18-320,
HR-18-320-Q
HF-14-310,
HF-14-310-Q,
HR-14-320,
HR-14-320-Q
HF-18-510,
HF-18-530,
HF-18-533,
HR-18-520,
HR-18-530,
HR-18-533
HF-14-510,
HF-14-530,
HF-14-533,
HR-14-520,
HR-14-530,
HR-14-533
HF-14-510-Q,
HF-14-530-Q,
HF-14-533-Q,
HR-14-520-Q,
HR-14-530-Q,
airtec单向滚轮杠杆式阀EL-25-310
HR-14-533-Q
HF-18-510-Q,
 HF-18-530-Q,
HF-18-533-Q,
HR-18-520-Q,
HR-18-530-Q,
HR-18-533-Q
HR-18-530,
HR-18-530-Q
HR-14-530,
HR-14-530-Q
HR-18-533,
HR-18-533-Q
HR-14-533
,HR-14-533-Q
