商品名称：台湾317青铜安全阀SV-B27
品牌:台湾317
型号:SV-B27
口径:DN6-600mm
材质:青铜
压力:1.0-6.4mpa
[加入购物车] [放入收藏夹] [查看评论]

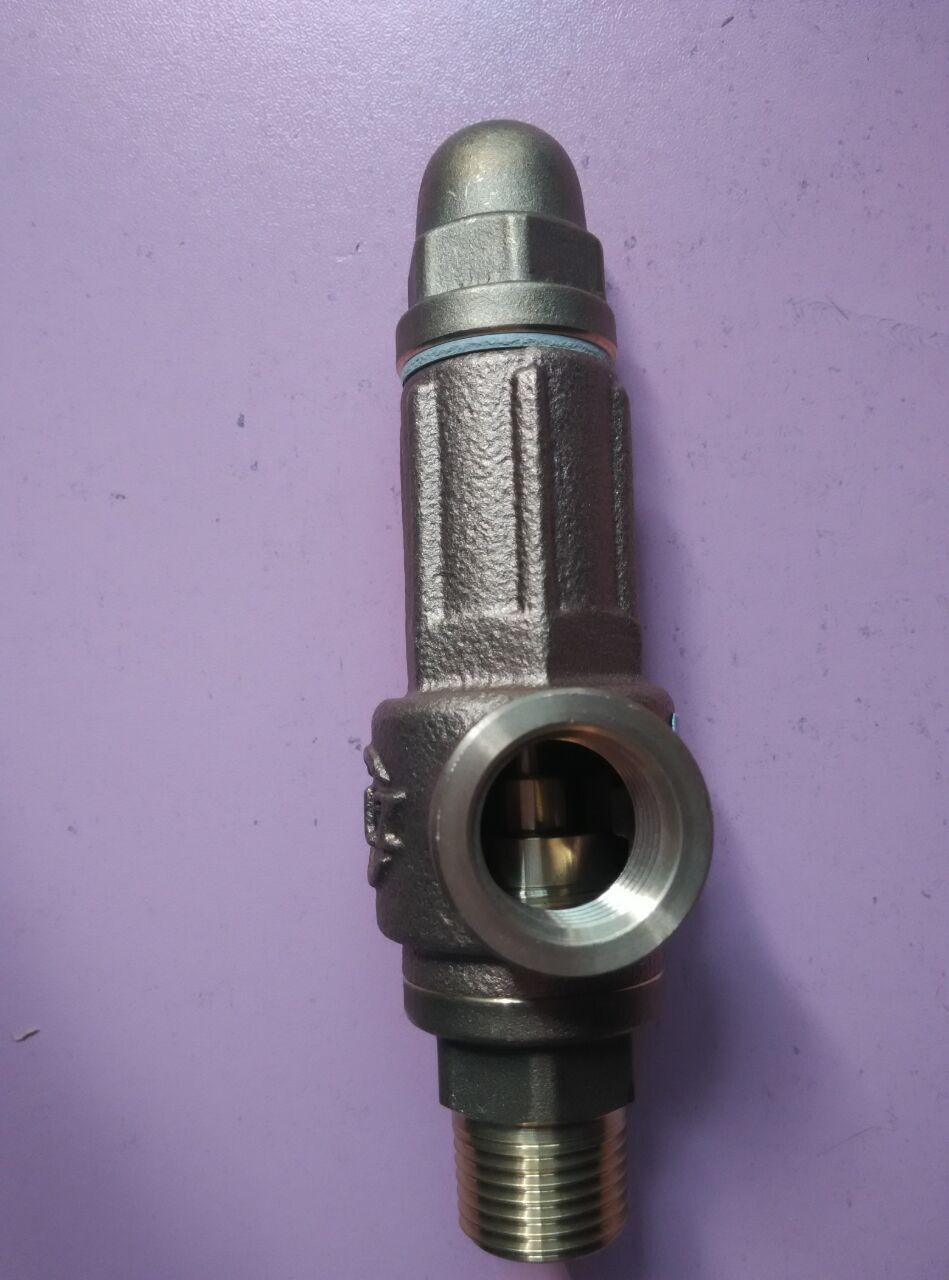

(SV-B27) BRONZE SAFETY RELIEF VALVE (OLD MODEL: S3W-A)
MODEL: SV-B27 / SVP-B27 WITHOUT LEVER
MODEL: SV-B29 / SVP-B29 WITH LEVER
SV-B27/SV-B29 optional Pressure: 10.5~20 Kgf/cm2
When placing order, please indicate Working Pressure
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-B27, SVP-B29)
|
Working Fluid : |
SV-B27/SV-B29/SVP-B29 Non-Corrosive Gas, Air, Steam. SVP-B27 (without lever) Non-Corrosive Gas, Liquid, Air, Steam, Water, Oil. |
|
Working Temp: |
-45℃～185℃ |
|
Working Pressure: |
SV-B27 / SV-B29 : 0.3 ~ 10 Kgf/cm2 11 ~ 20 Kgf/cm2 SVP-B27 / SVP-B29 (PTFE) 3 ~ 10 Kgf/cm2 |
|
Thread End: |
BSPT (BS21), NPT (ANSI B2.1) |
|
MATERIAL: |
|||
|
No./ Parts |
W/O Lever |
SV-B27 (S3W-A) |
SVP-B27 |
|
With Lever |
SV-B29 (S3W-LR) |
SVP-B29 |
|
|
Type : |
METAL TO METAL |
PTFE |
|
|
1 |
Valve Seat |
FORGE BRASS |
FORGE BRASS |
|
2 |
Valve Disc |
FORGE BRASS |
FORGE BRASS |
|
3 |
Valve spindle (Stem) |
FORGE BRASS |
FORGE BRASS |
|
3-1 |
Valve Seal |
- |
PTFE |
|
4 |
Valve Body |
BRONZE |
BRONZE |
|
5 |
Spring Shoe |
BsBM |
BsBM |
|
6 |
Adjusting Screw |
BsBM |
BsBM |
|
7 |
Stop Nut |
BsBM |
BsBM |
|
8 |
Cap |
FORGE BRASS |
FORGE BRASS |
|
9 |
Lever (Type: B29) |
STEEL |
STEEL |
|
10 |
Spring |
SWOSC-V |
SWOSC-V |
|
11 |
Screw Washer |
BsBM |
BsBM |
|
12 |
Hexagon Nut |
BsBM |
BsBM |
|
13 |
Stop Bolt |
BsBM |
BsBM |
|
14 |
Pin |
BsBF |
BsBF |
